RCF EVOX 12 Portable Column PA System

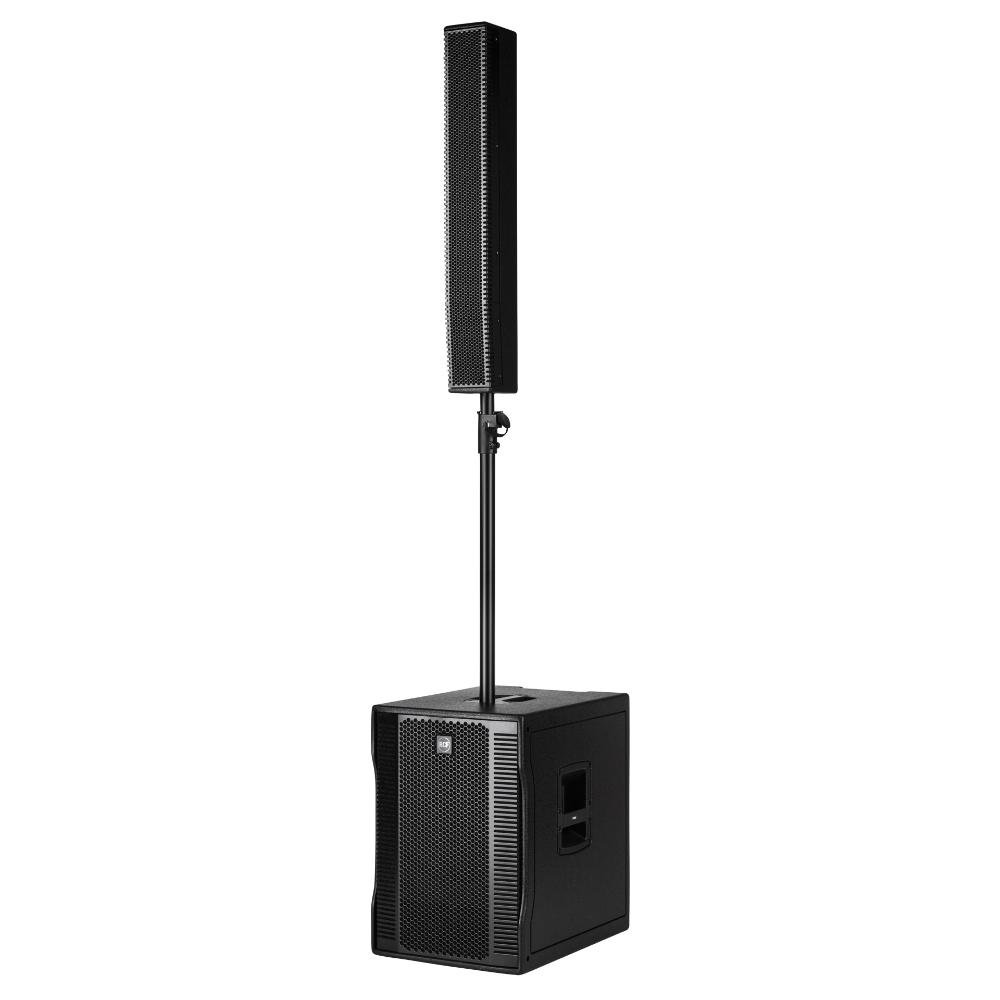

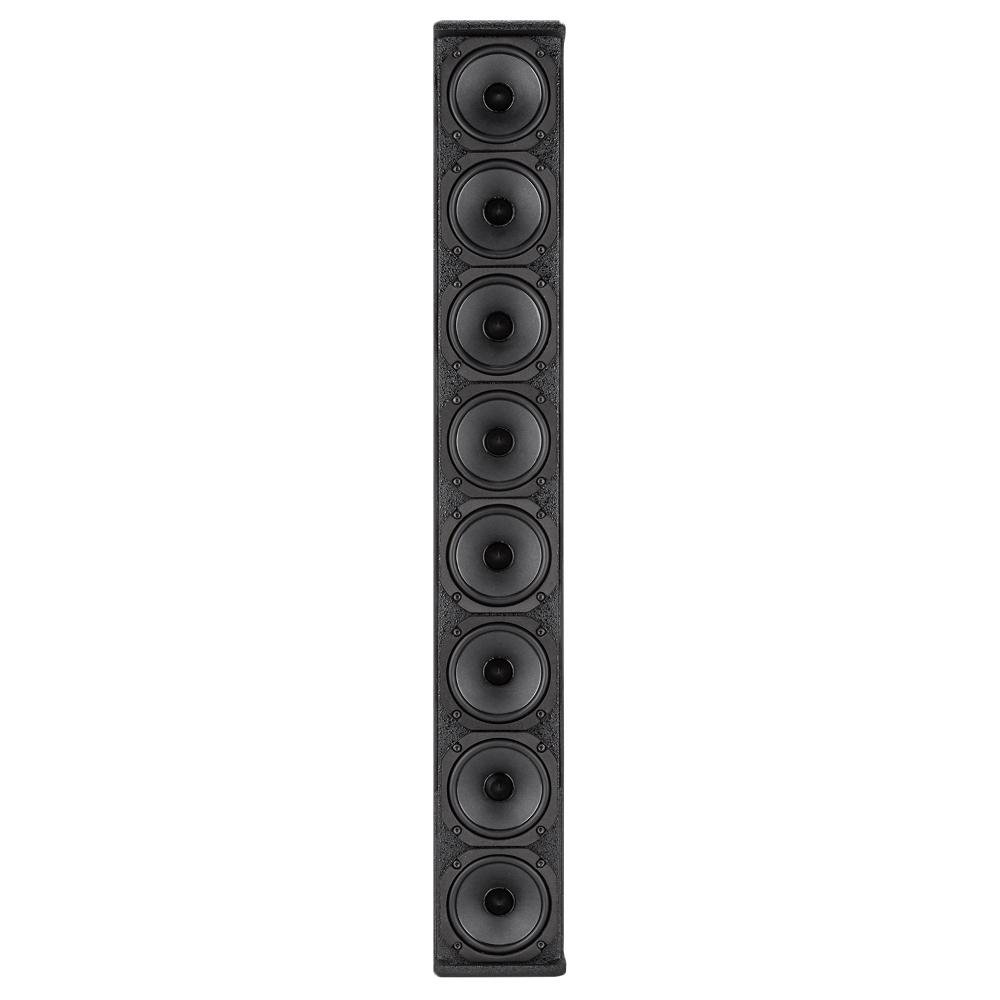

The EVOX 12 packs eight 4-inch neodymium full-range drivers with phase plugs into a line-source column, powered by a 15-inch subwoofer with a 3.0-inch voice coil that anchors the whole system. A 1400W peak Class-D amplifier (1000W LF, 400W HF) covers 40 Hz to 20 kHz and reaches 130 dB max SPL across a 90 by 30 degree pattern, tilted slightly for even coverage from front row to back.

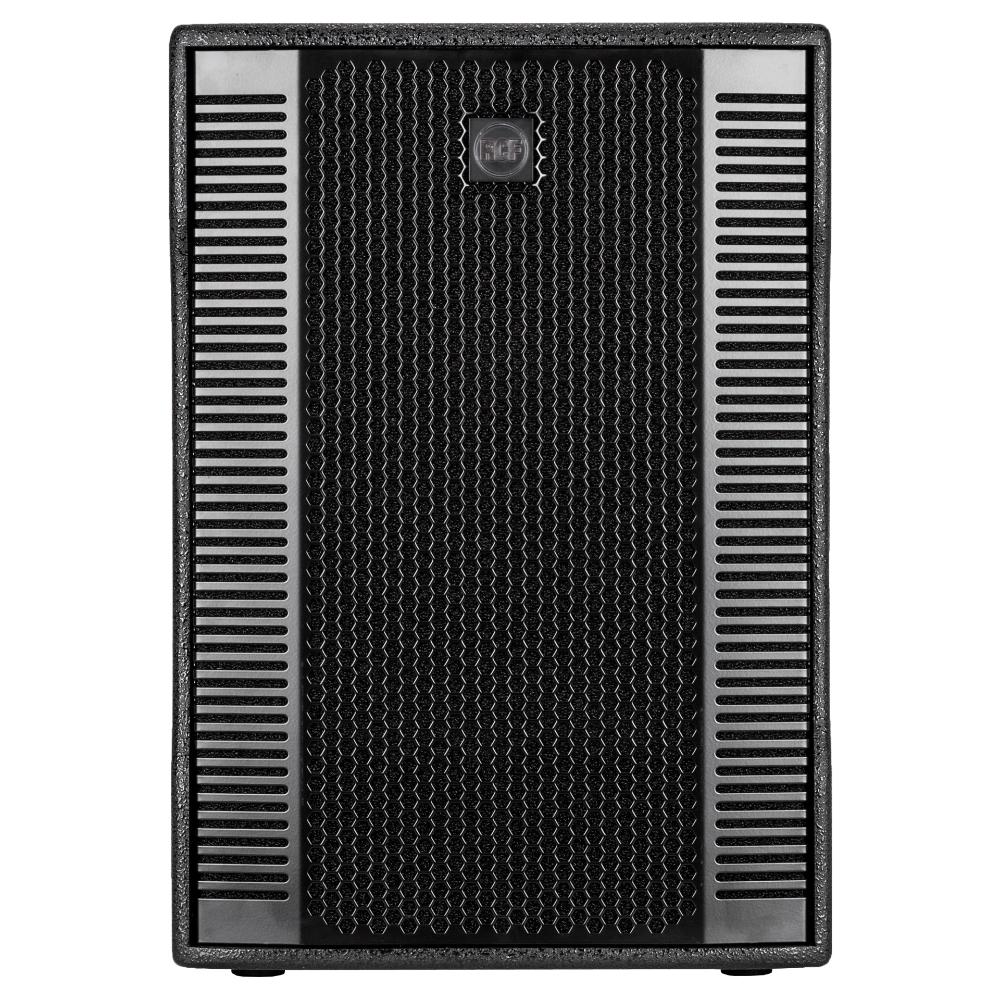

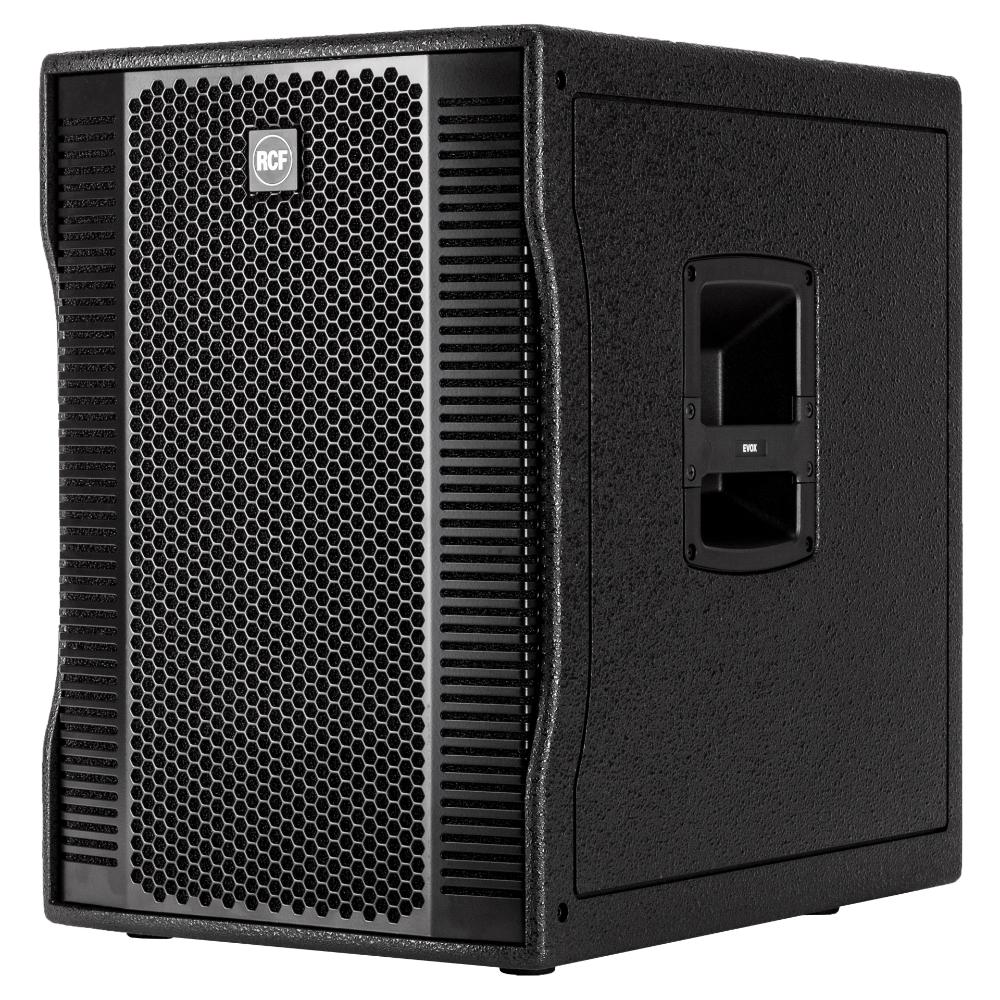

The subwoofer enclosure carries integrated wheels and an extendable handle, and the column breaks down into the sub for one-piece transport. Balanced XLR and jack inputs cover any source, and an XLR output loops to a second system for a stereo pair. It ships in black or white Baltic birch plywood.
| Configuration | Powered column array + subwoofer |
|---|---|
| Satellite Array | 8 x 4" neodymium full-range, phase plug |
| Subwoofer | 15" (3.0" voice coil) |
| Amplifier Power | 1400W peak (1000W LF + 400W HF) |
| Max SPL | 130 dB |
| Frequency Response | 40 - 20,000 Hz |
| Coverage | 90 x 30 degrees |
| Connectors | XLR/jack input (balanced/unbalanced), XLR output |
| Weight | 36.4 kg (80.25 lbs) |
