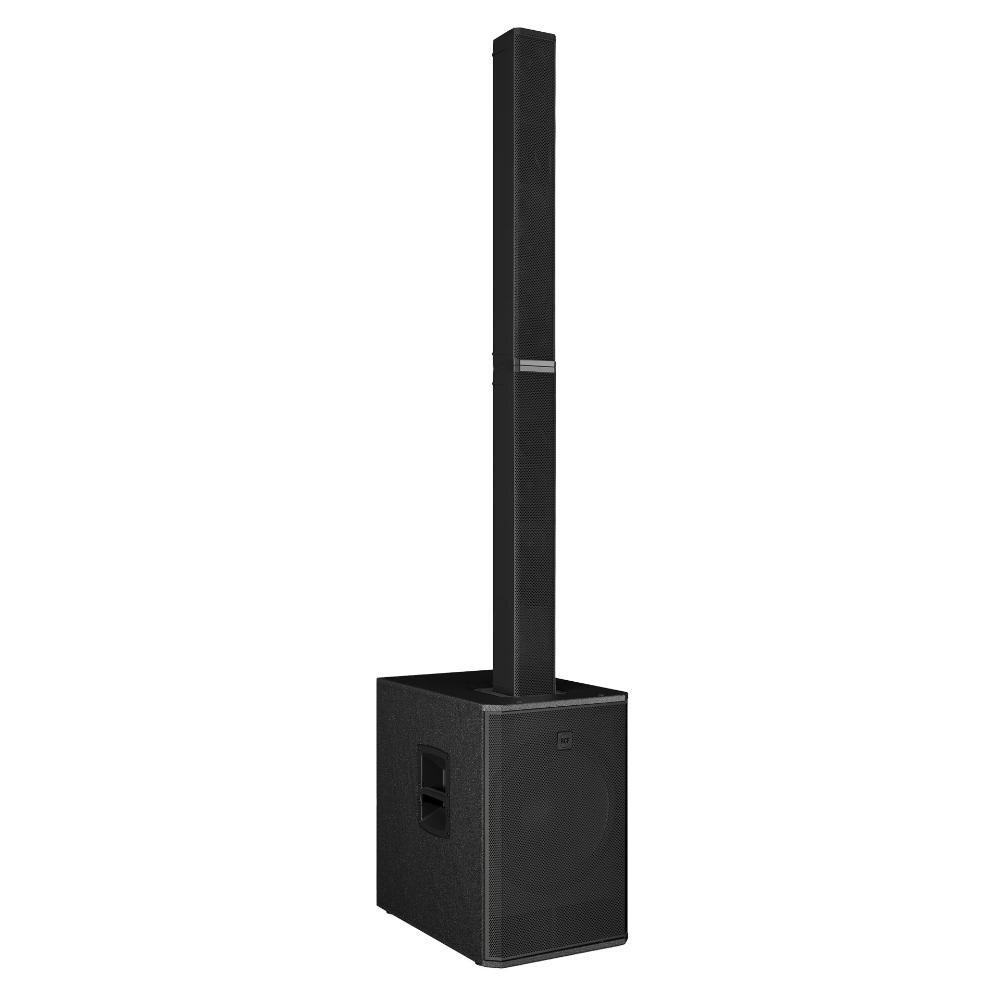

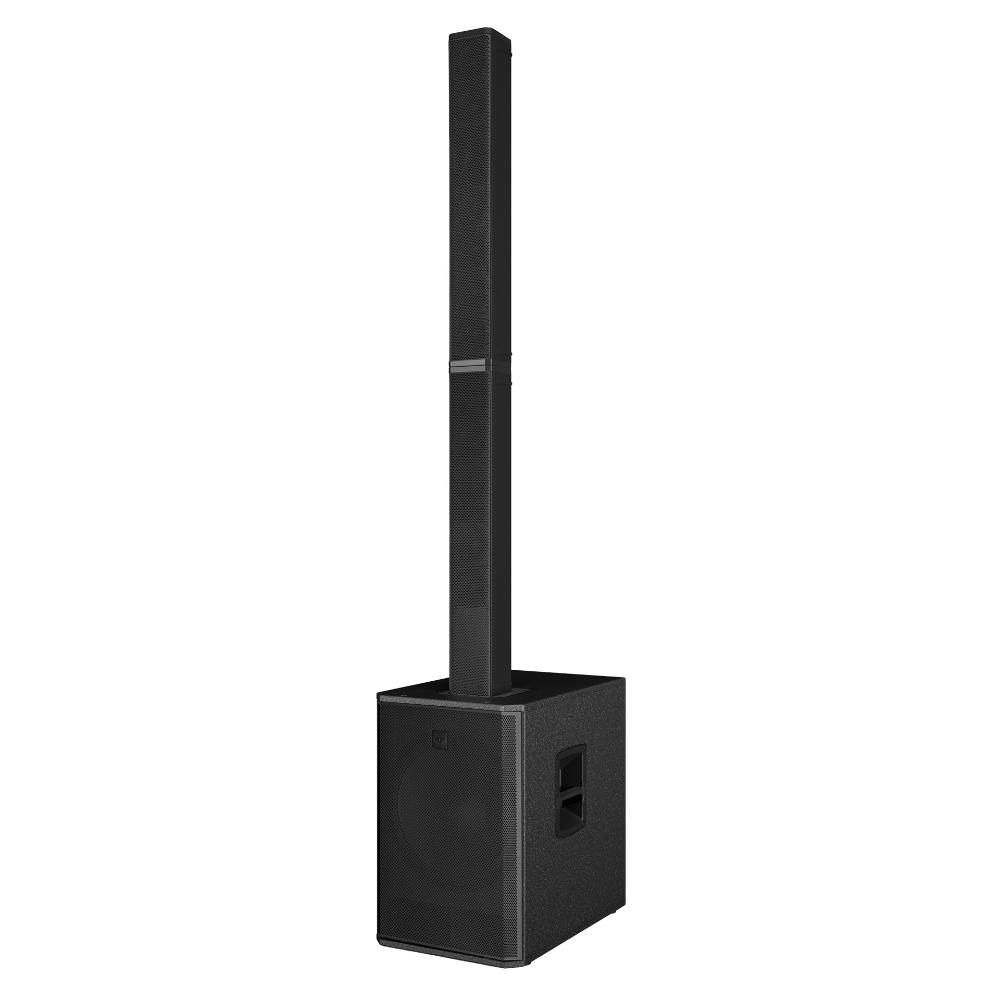

RCF EVOX V15 Three-Way Portable Column PA System
The EVOX V15 is the top of RCF's portable column line, a three-way system pairing ten 4-inch neodymium mid-range drivers and a 1.75-inch compression driver with a 15-inch subwoofer on a 3.0-inch voice coil. The 3500W peak Class-D amplifier (2000W LF, 1500W HF) reaches 133 dB SPL across 35 Hz to 20 kHz with a 120 by 40 degree coverage pattern, enough output to run as the sole system for a full room.

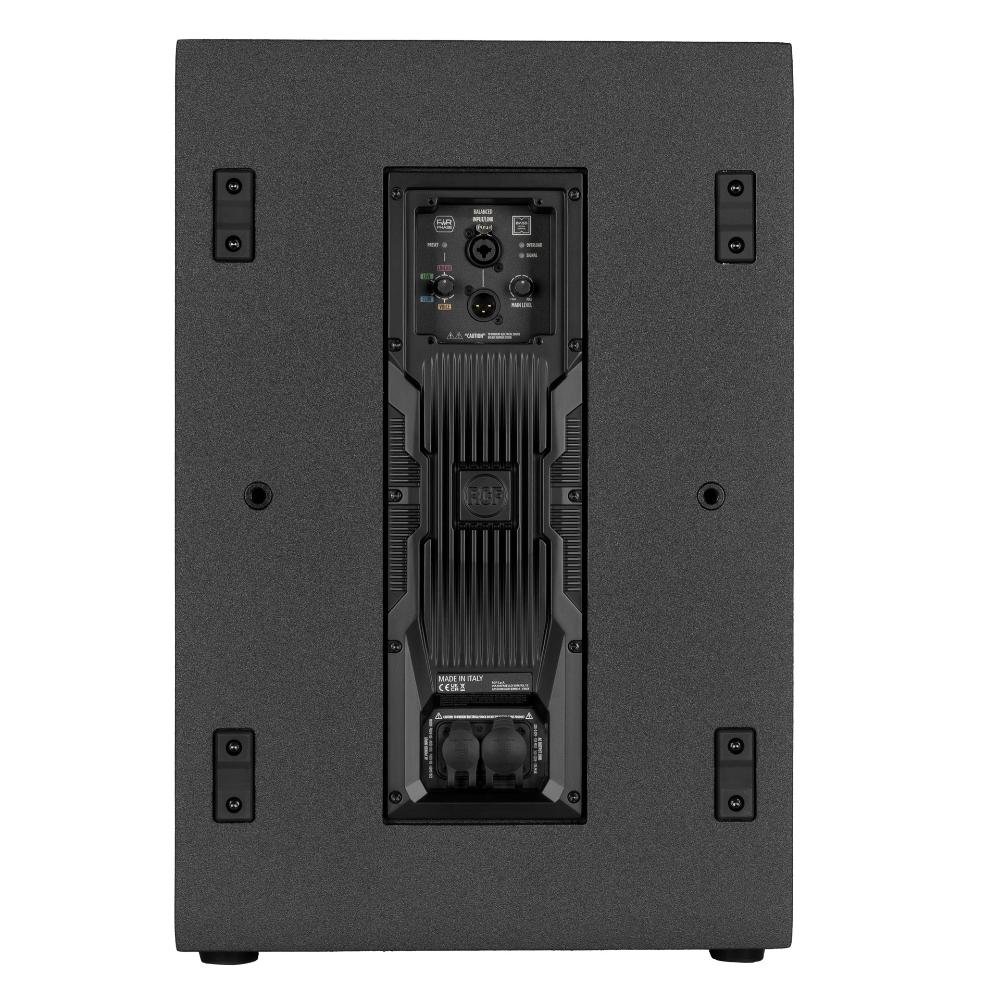

Combo XLR/jack inputs and an XLR output cover wired sources, and PowerCon TRUE1 TOP mains connectors make it simple to link a stack of cabinets. At 44.4 kg it is the heaviest EVOX, built for bands, DJs and live events that need the extra headroom over the J and JMIX models.
| Configuration | Three-way powered column array + subwoofer |
|---|---|
| Satellite Array | 10 x 4.0" neodymium mid-range |
| Compression Driver | 1.75" neodymium |

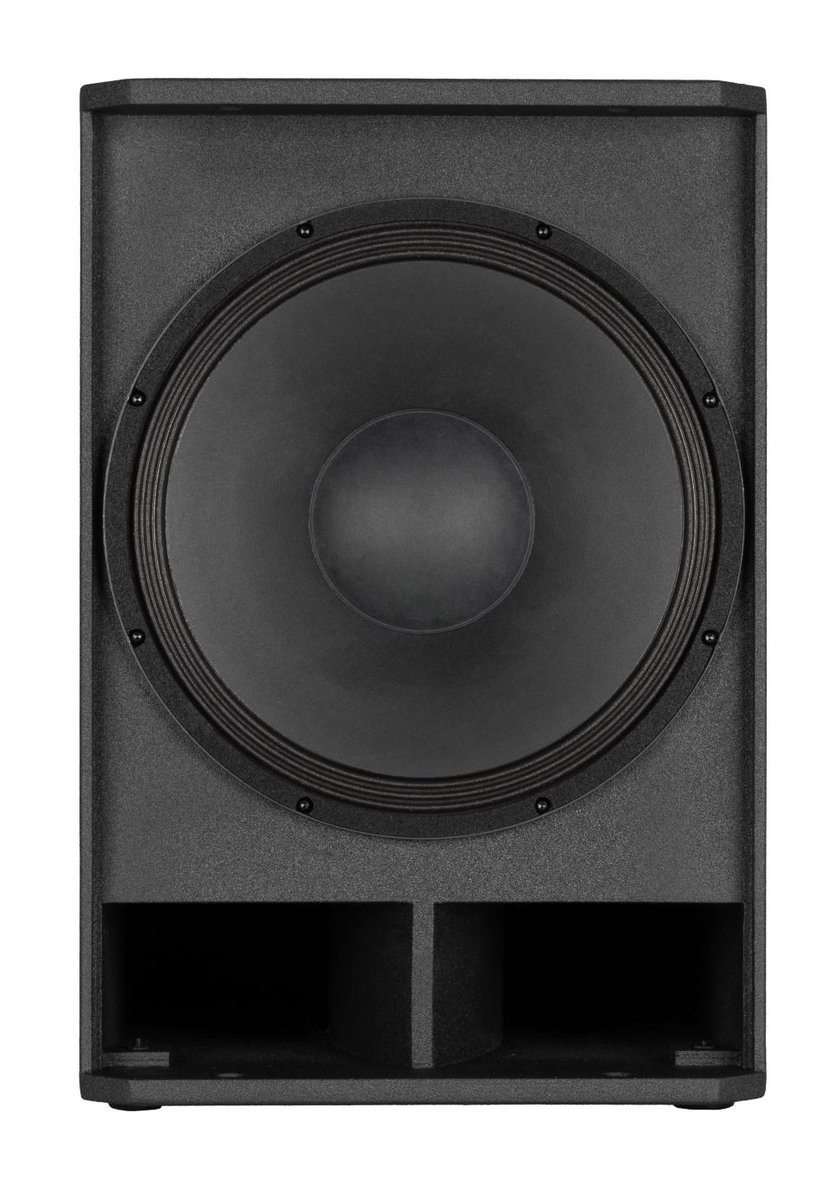

| Subwoofer | 15" (3.0" voice coil) |
| Amplifier Power | 3500W peak (2000W LF + 1500W HF) |
| Max SPL | 133 dB @ 1m |
| Frequency Response | 35 - 20,000 Hz |
| Coverage | 120 x 40 degrees |
| Connectors | Combo XLR/jack input, XLR output, PowerCon TRUE1 TOP |
| Weight | 44.4 kg (97.89 lbs) |
