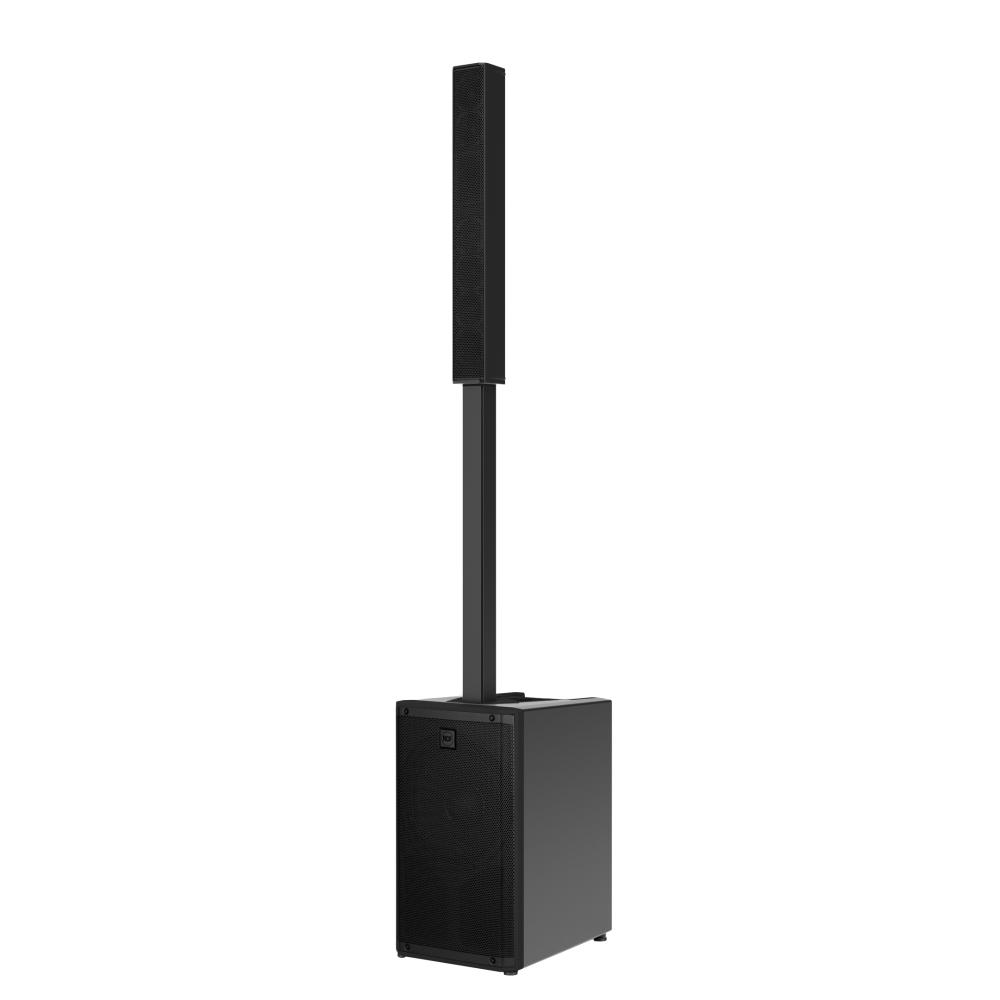

RCF EVOX J9 Three-Way Portable Column PA System

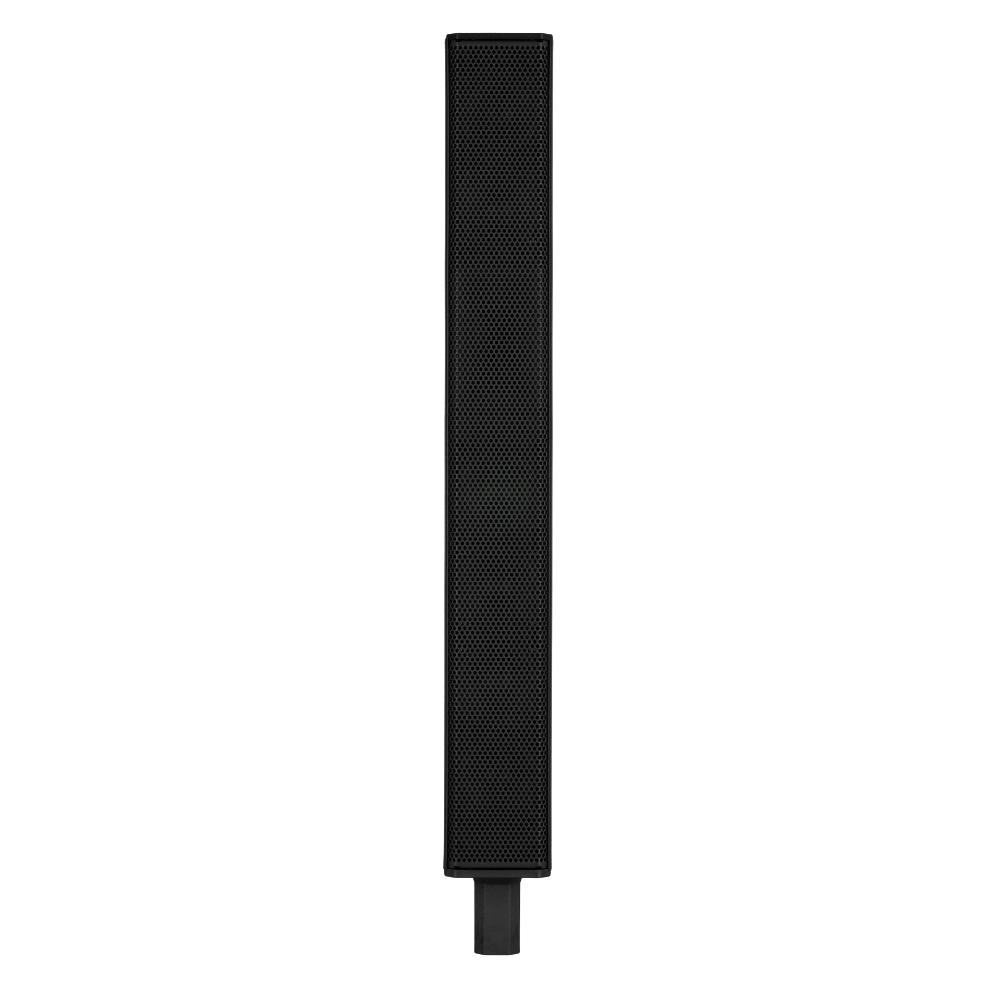

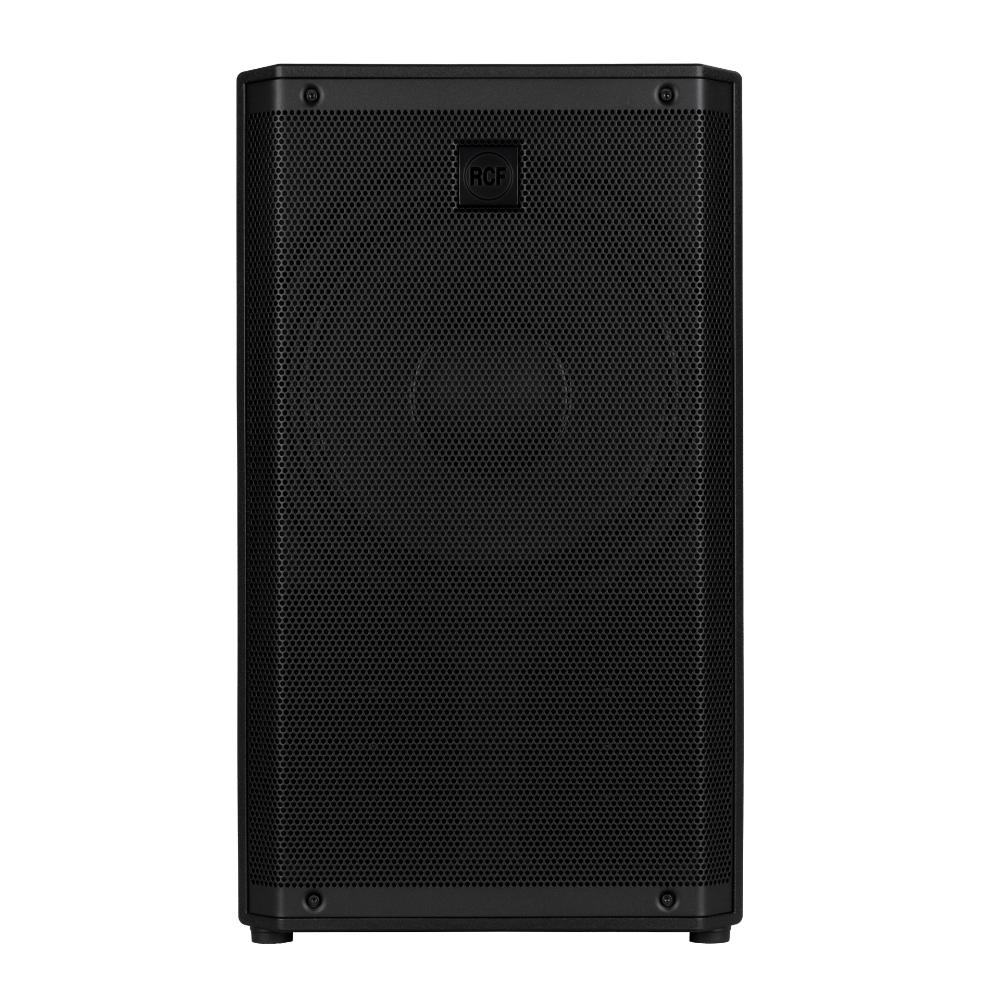

The EVOX J9 is a three-way column below the J11, adding a 1.75-inch neodymium compression driver with a Kapton dome above six 3-inch full-range transducers, powered by a 12-inch subwoofer in a bass-reflex enclosure. A 2100W Class-D amplifier with built-in DSP reaches 130 dB SPL across 40 Hz to 20 kHz, with crossovers set at 200 Hz and 1800 Hz to keep each driver in its comfortable range.
Coverage spans 120 by 40 degrees, and balanced combo XLR/jack inputs with an XLR output make it simple to link a second cabinet or feed a monitor mix. At 26 kg it is lighter than the J11 while keeping the same three-way clarity, and it ships in black or white.
| Configuration | Three-way powered column array + subwoofer |
|---|---|
| Satellite Array | 6 x 3" neodymium full-range |
| Compression Driver | 1.75" neodymium, Kapton dome |
| Subwoofer | 12" high-power woofer, bass-reflex |
| Amplifier Power | 2100W Class-D |
| Max SPL | 130 dB @ 1m |
| Frequency Response | 40 - 20,000 Hz |
| Coverage | 120 x 40 degrees |
| Crossover Frequencies | 200 Hz / 1800 Hz |
| Connectors | Combo XLR/jack input, XLR output |
| Weight | 26 kg (57.32 lbs) |
