RCF EVOX JMIX8 Portable PA with 8-Channel Digital Mixer
The EVOX JMIX8 takes the J8's eight 2-inch drivers and 12-inch subwoofer and adds an 8-input digital mixer built around RCF's Z.CORE DSP, so a duo or small band can mix from the box instead of hauling a separate console. Four mic, four mono line, one Hi-Z and two stereo line inputs cover most stage plots, and the same 1400W peak amplifier reaches 128 dB SPL across 40 Hz to 20 kHz.
The mixer adds four compressors with six presets, 3-band plus 7-band graphic EQ, an aux send, USB audio and Bluetooth, plus instrument amp and cabinet simulation for a guitar or bass run direct. Coverage holds the same 120 by 30 degree pattern as the J8, and XLR I/O with internal SpeakOn wiring keeps setup simple.
| Configuration | Powered column array + subwoofer with digital mixer |
|---|---|

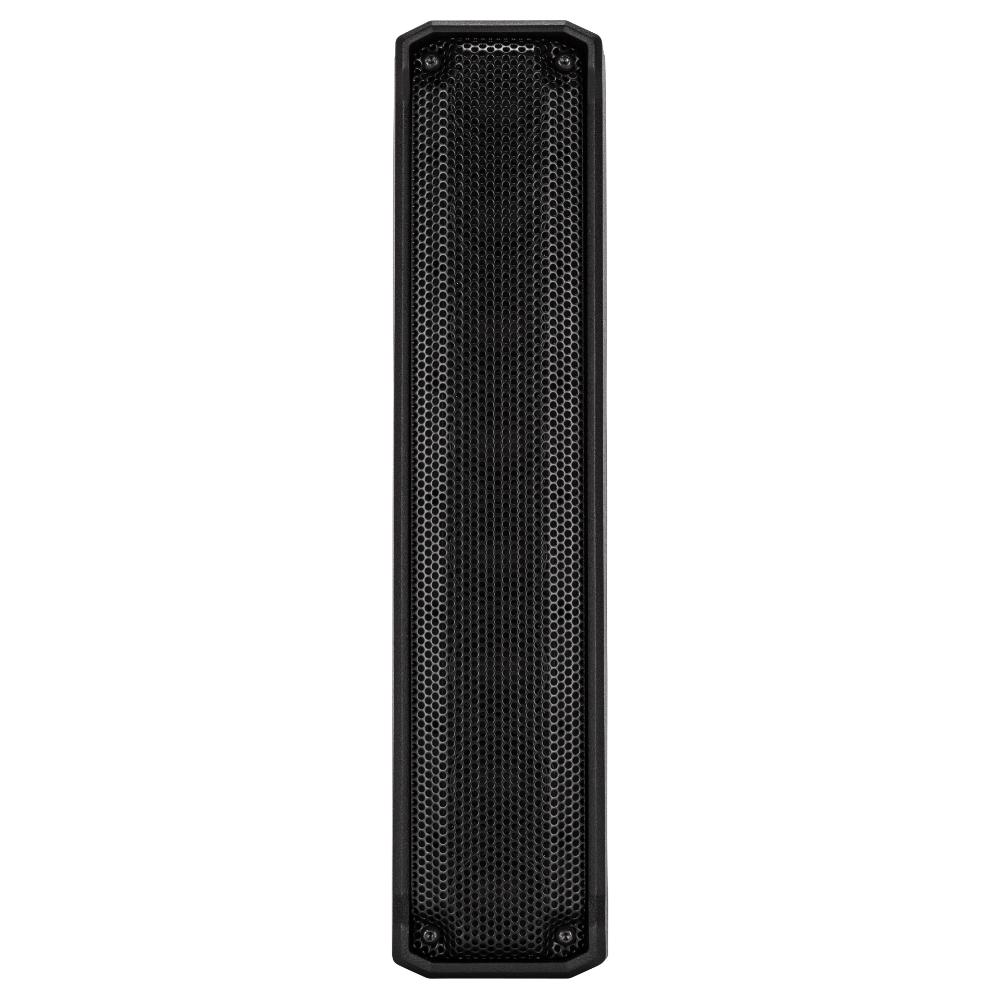

| Satellite Array | 8 x 2" full-range (1.0" voice coil) |

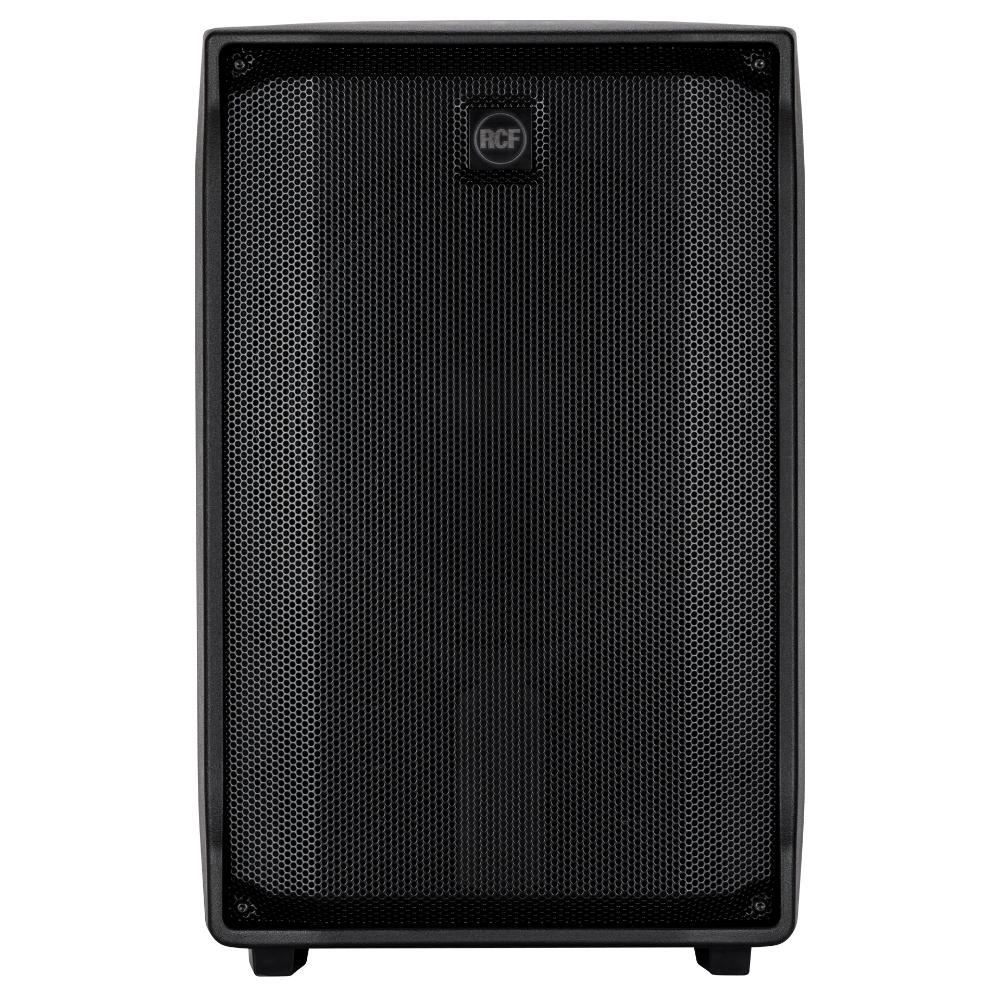

| Subwoofer | 12" (2.5" voice coil) |
| Amplifier Power | 1400W peak (1000W LF + 400W HF) |
| Max SPL | 128 dB @ 1m |
| Frequency Response | 40 - 20,000 Hz |
| Coverage | 120 x 30 degrees |

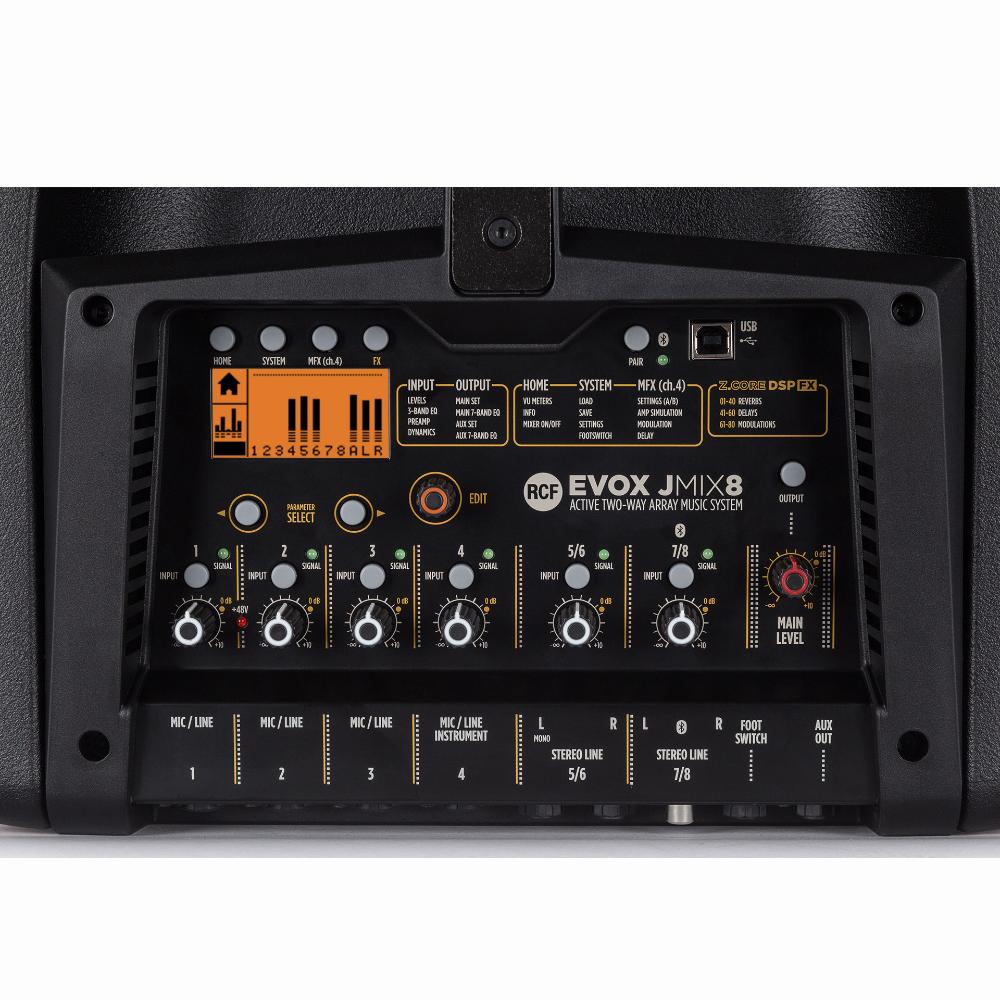

| Mixer | 8 inputs: 4 mic, 4 mono line, 1 Hi-Z, 2 stereo line; Bluetooth, USB audio |
| Connectors | XLR input/output, internal SpeakOn |
| Weight | 22.2 kg (48.94 lbs) |
