RCF EVOX JMIX9 Portable PA with 8-Channel Digital Mixer

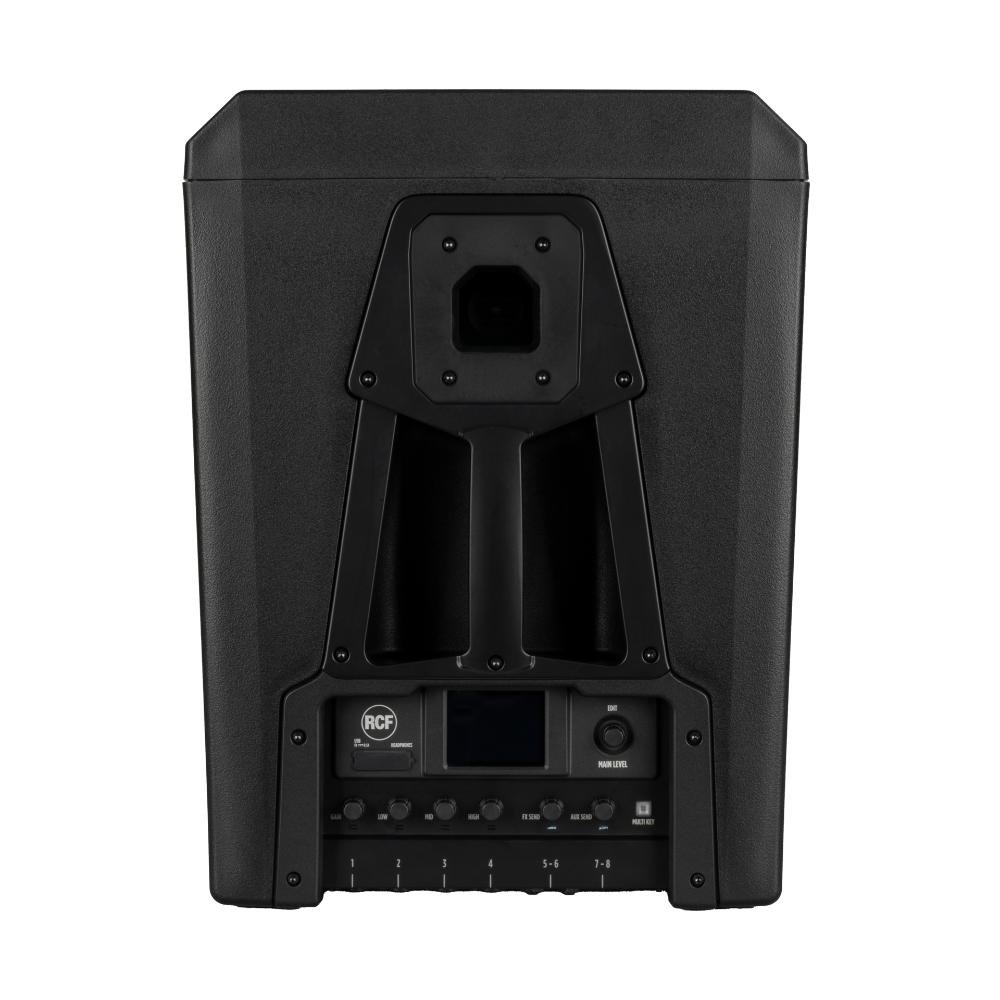

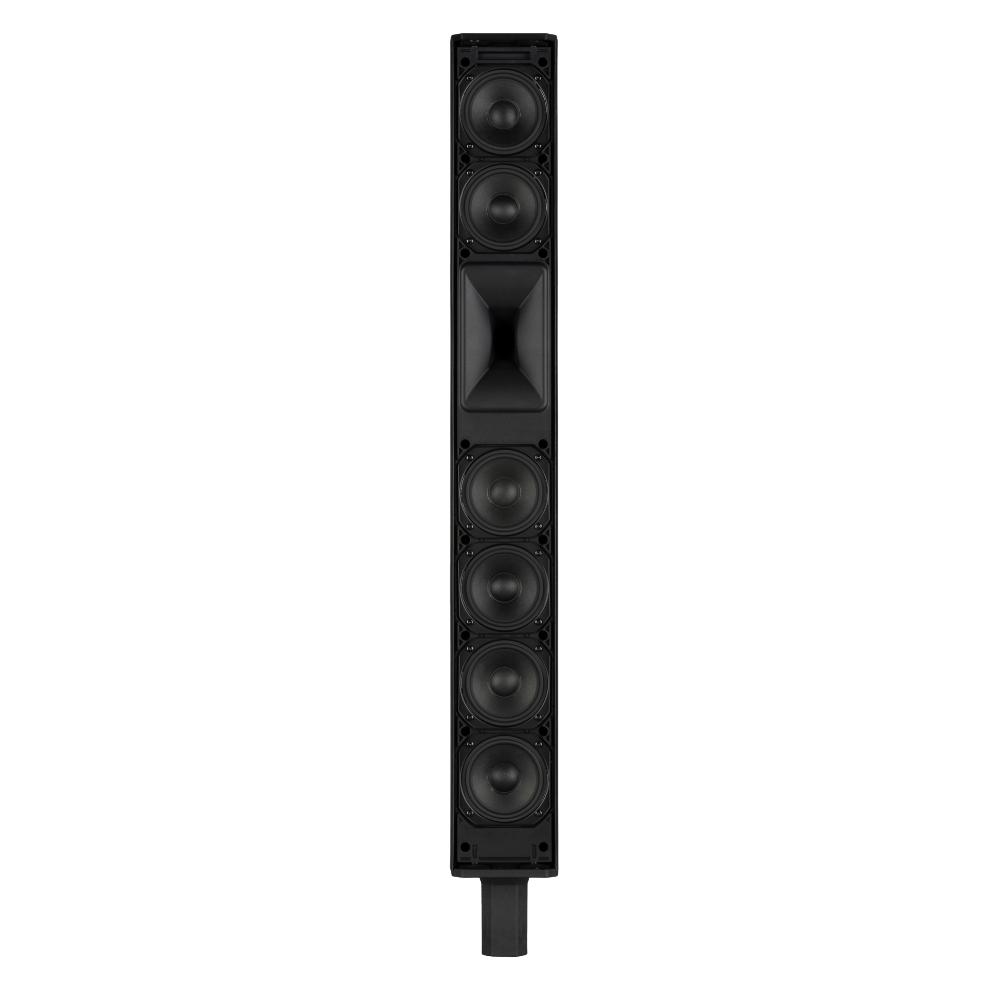

The EVOX JMIX9 pairs the J9's six 3-inch full-range drivers, 1.75-inch compression driver and 12-inch subwoofer with an 8-channel digital mixer built around 32-bit processing. Four mic/line combo inputs with phantom power and four stereo line inputs, including Bluetooth, cover a small band's whole input list, and a 2.4-inch color touchscreen with physical encoders puts channel control at your fingertips instead of buried in a menu.

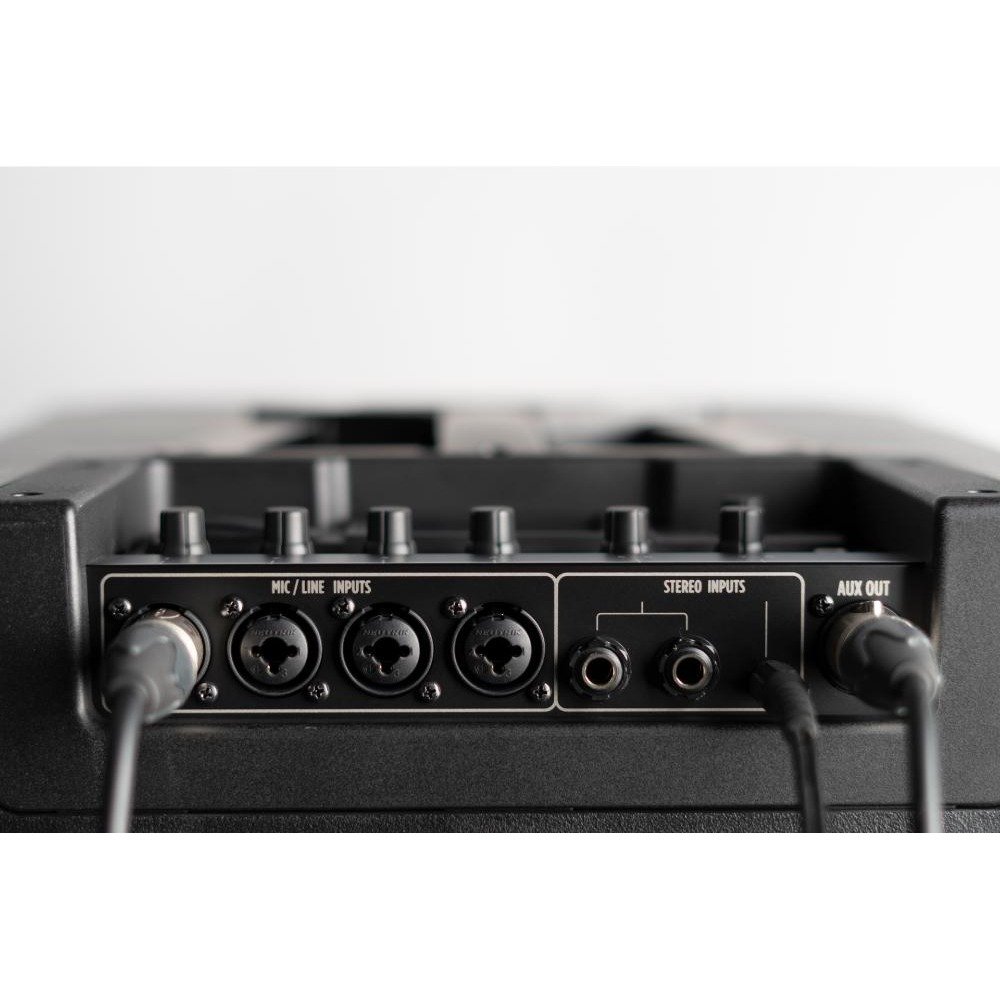

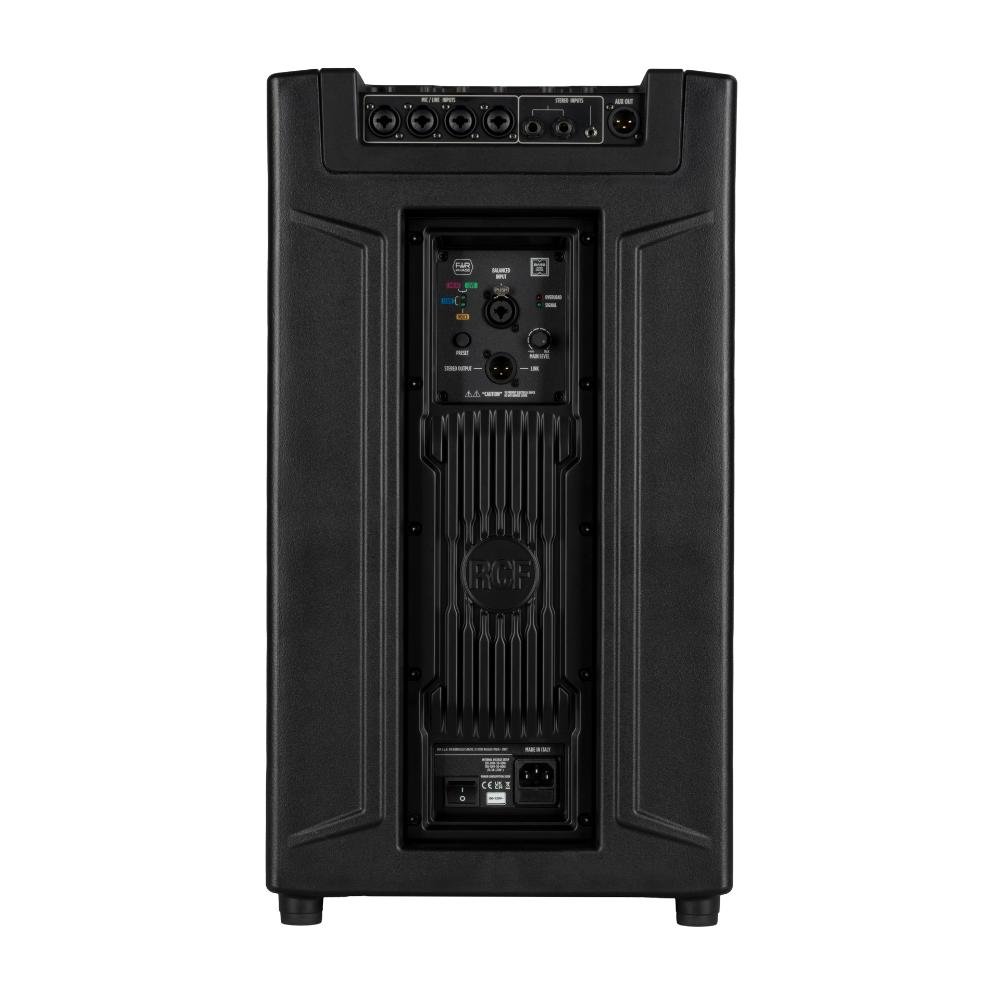

The 2100W Class-D system reaches 130 dB SPL across 40 Hz to 20 kHz with a 120 by 40 degree coverage pattern, and an 8-band parametric EQ on the main output plus reverb, compression and ducker functions handle the mix without an outboard rack. XLR combo mic inputs, XLR outputs and a dedicated pre/post aux output round out the connections.

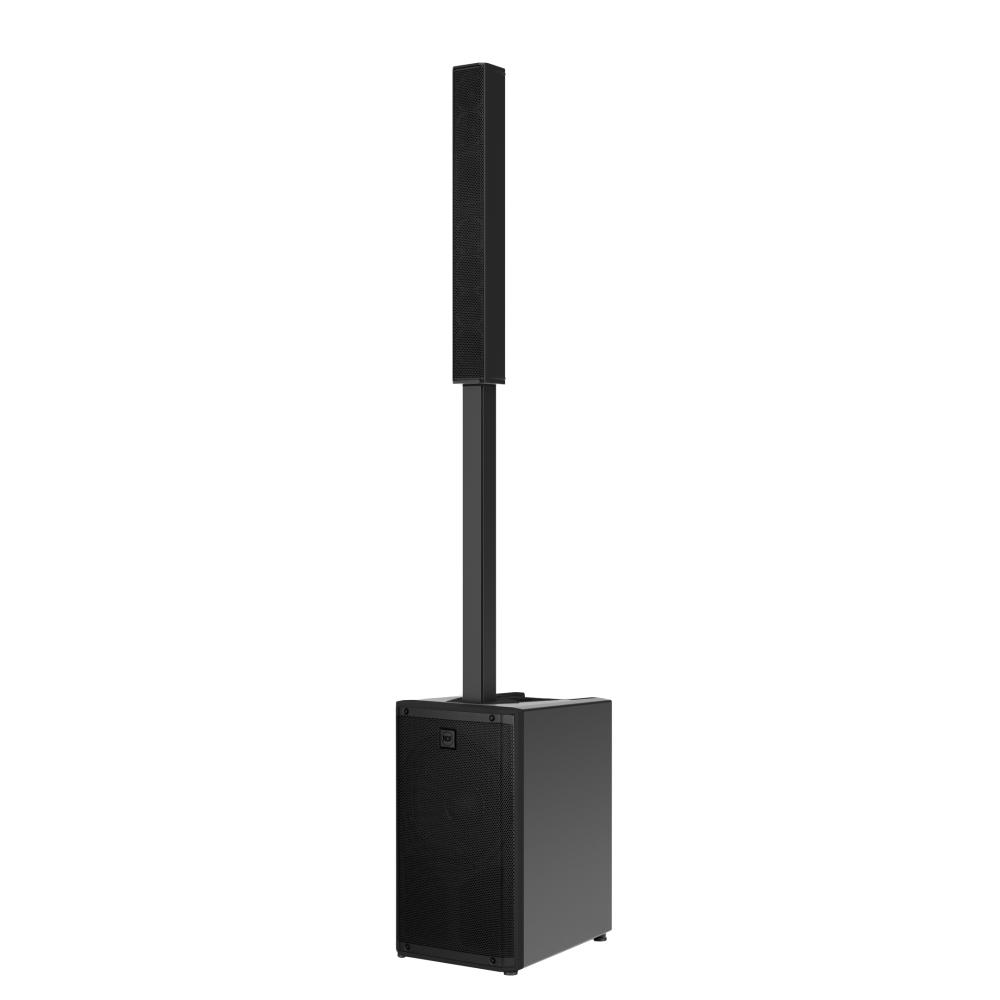

| Configuration | Powered column array + subwoofer with digital mixer |
|---|---|

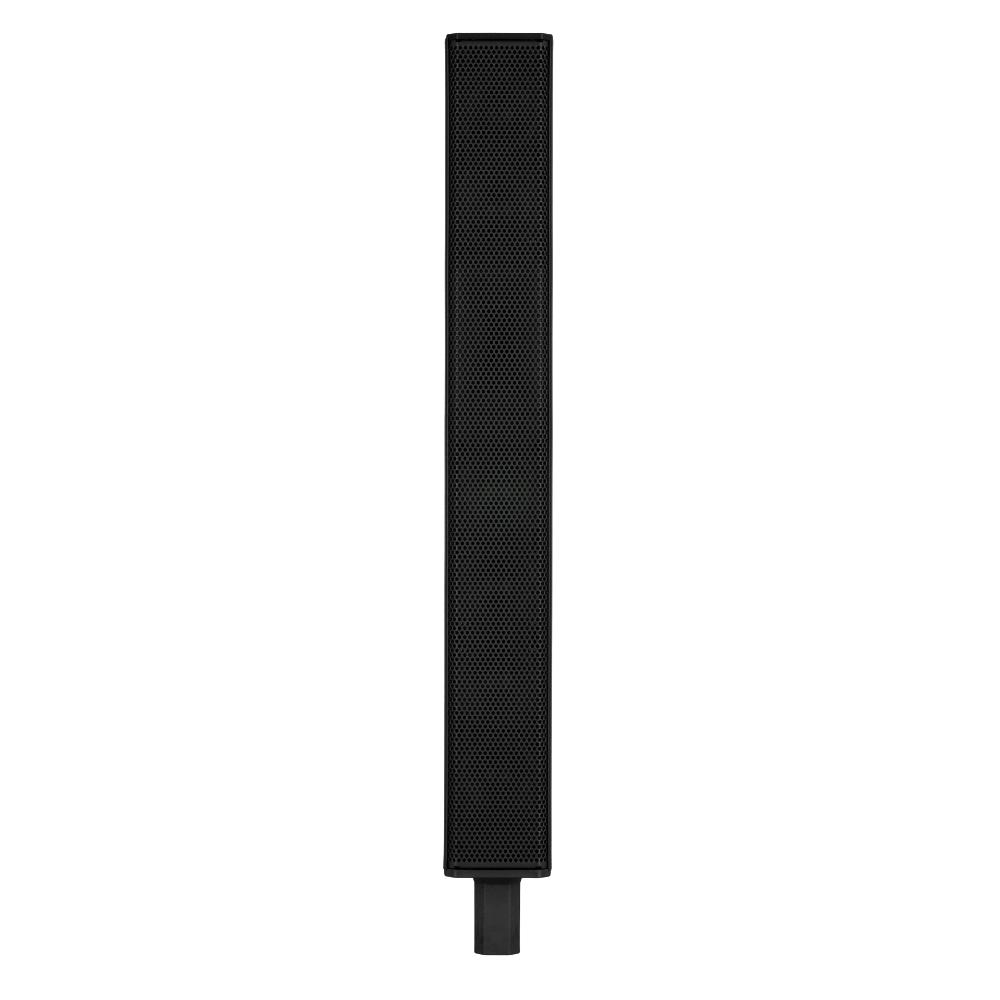

| Satellite Array | 6 x 3" neodymium full-range |
| Compression Driver | 1.75" neodymium |

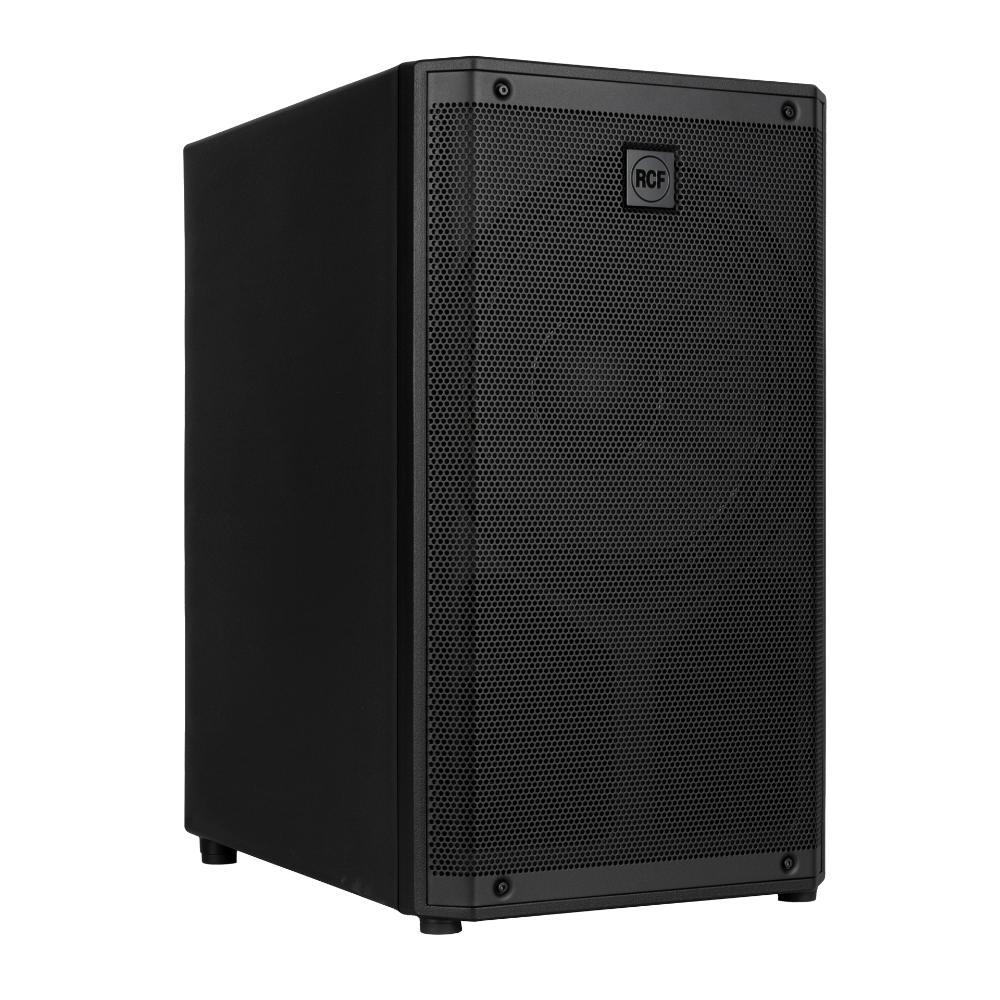

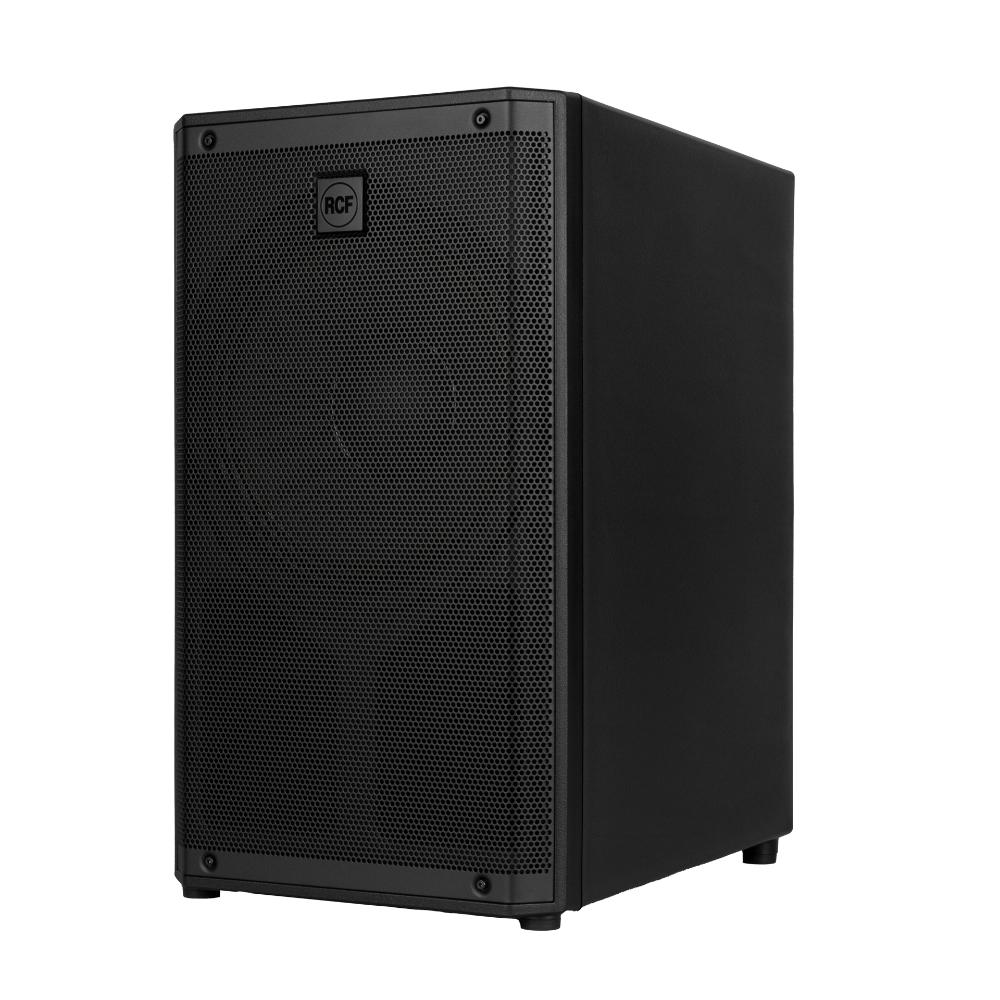

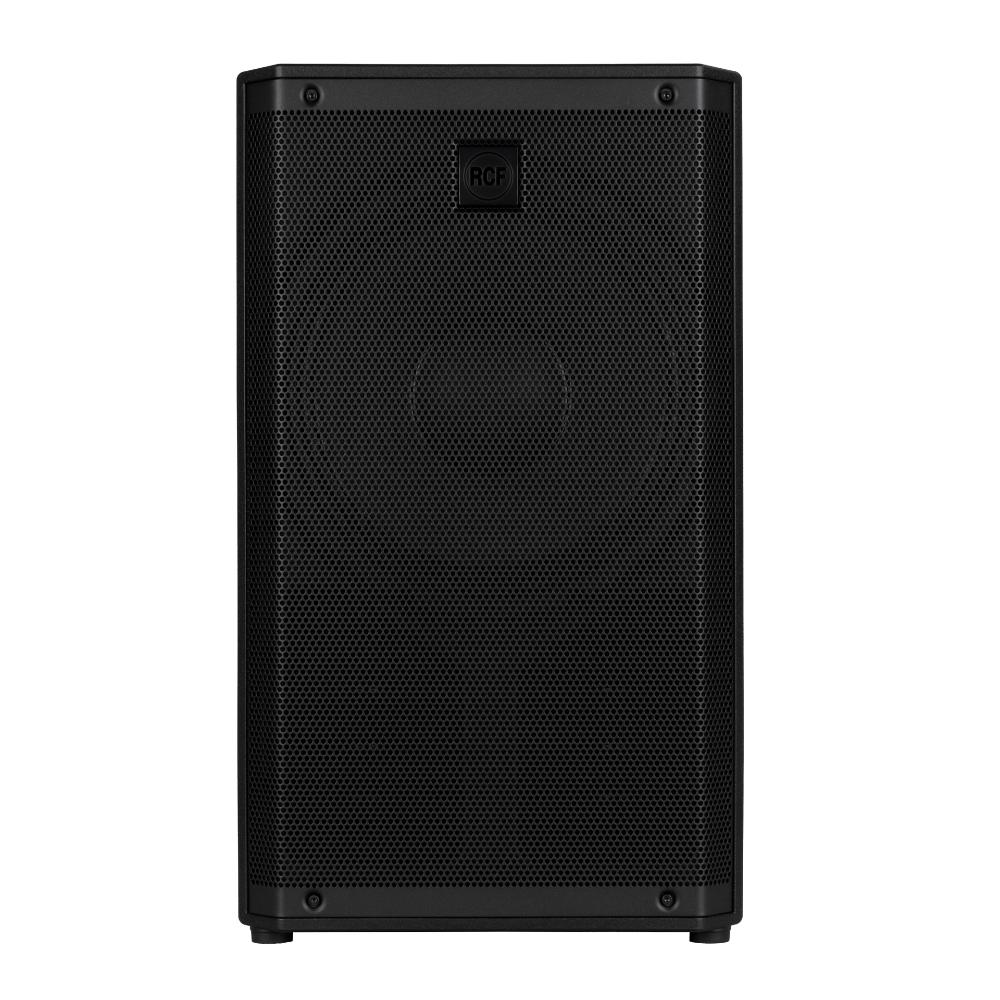

| Subwoofer | 12" high-power woofer |
| Amplifier Power | 2100W Class-D |
| Max SPL | 130 dB @ 1m |
| Frequency Response | 40 - 20,000 Hz |
| Coverage | 120 x 40 degrees |
| Mixer | 8-ch: 4 mic/line combo + 4 stereo line (Bluetooth), 2.4" touchscreen |
| Weight | 26.6 kg (58.64 lbs) |
