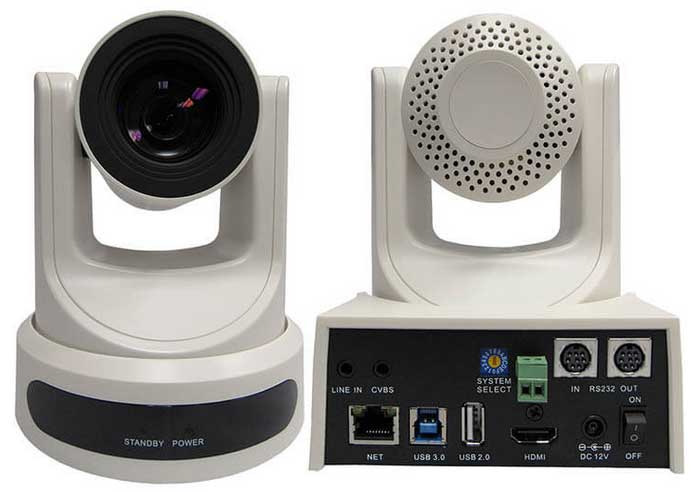

PTZOptics 20X USB Cameras

PTZoptics PTZ Camera



PTZoptics 20X
USB PTZ Camera

G&G Price: $1799
WHITE COLOR
USB 3.0
HDMI, IP Streaming, CVBS
60.7° Field of View
5 year warranty
FREE UPS SHIPPING
PTZoptics 20X
USB PTZ Camera

G&G Price: $1799
GRAY COLOR
USB 3.0
HDMI, IP Streaming, CVBS
60.7° Field of View
5 year warranty
FREE UPS SHIPPING
PTZoptics 20X
USB PTZ Camera

G&G Price: $1799
WHITE COLOR
USB 3.0
HDMI, IP Streaming, CVBS
60.7° Field of View
5 year warranty
FREE UPS SHIPPING
PTZoptics 20X
USB PTZ Camera

G&G Price: $1799
GRAY COLOR
USB 3.0
HDMI, IP Streaming, CVBS
60.7° Field of View
5 year warranty
FREE UPS SHIPPING



PTZOptics's plug-and-play USB 3.0 camera models are built with ease of use and compatibility in mind, featuring game-changing optics and video communication installation options.

USB connectivity is now available with options for HDMI and IP streaming in the latest USB PTZ cameras from PTZOptics. The combination of robust high-definition video outputs and flexible camera control options are what makes this camera powerful. Realize the value of connecting this camera to any application, and enjoy the advanced camera control options which include iOS, Android, PTZ controllers, joysticks and more.

Features
  • Smartphone (iOS, Android, Kindle)
  • Plug and Play USB Connectivity
  • Open Source Camera Control
  • Three Simultaneous Video Inputs
  • Compatible with Extron and Crestron Control Systems (IP or Serial)
  • IP Joystick Controller
  • Serial Joystick Controller
  • StreamDeck Integration
  • 5 Year Warranty
Camera & Lens
  • Video Output Interface USB 3.0, HDMI, IP Streaming, CVBS
  • Lens Zoom 20x, 4.42mm-88.5mm, F1.8-F2.8
  • Power Supply 12W 24W(Max)
  • Video CMOS Sensor 1/3” CMOS, 2.12 Mega Pixels
  • Frame Rate 1080p/30, 1080p/25, 720p/60,
  • 720p/50, NTCS, PAL
  • Field of View 60.7°
  • Min Lux 0.5 Lux at F1.8, AGC ON
  • Shutter Speed 1/30s - 1/10000s
  • SNR ≥55dB
  • Vertical Flip & Mirror Supported
  • Horizontal Angle of View 3.36° (tele) to 60.7° (wide)
  • Vertical Angle of View 1.89° (tele) to 34.1°(wide)
  • Working Environment Indoor
Pan & Tilt Movement
  • Pan Movement ±170°
  • Tilt Rotation Up: 90° Down: 30°
  • Presets 64 Presets (245 Presets via RS-232 & UVC)
  • Rear Board Connectors
  • Network Interface RJ45
  • Audio Interface Line In, 3.5mm (IP Stream Only)
  • Communication Interface RS-232, RS485
  • Baud Rate 2400/4800/9600 bits
  • Power Supply Interface JEITA Type Power Adapter (DC IN 12V)
  • USB Interface USB 3.0 *(requires quad core processor)
Physical Specifications
  • Dimension (in.) 5.6W x 6.5H x 6.3D (7.5H max w/ Tilt)
  • Box Dimensions 9”x9”x10” | 229mmx254mmx229mm
  • Camera Weight 2.95 lbs. (1.34kg)
  • Boxed Weight 5.4 lbs. (2.54 kg)
Electrical Index
  • Input Voltage 12V DC (10.8 - 13.0V DC)
Includes:
  • Power Adapter + Cord
  • USB 3.0 Cable
  • IR Remote Control
  • RS-232C Cable
  • Quick Start Guide
  • (2) AAA Batteries
  • 5 Year Warranty

PT20X USB Spec Sheet
PT20X USB User Manual


Accessories:

Model Image Description Pricing
PT-JOY-G3 PTZOptics PT-JOY-G3 IP Controller
  • Control up to 253 PTZ Cameras
  • Sony VISCA-over-IP Control
  • For All PTZOptics & Other VISCA Cameras
  • Quick-Switching Hot Keys for 6 x Cameras
  • Customizable Pan/Tilt/Zoom Speeds
  • 100+ Camera Presets
  • Focus, Iris & Zoom Control Buttons
  • Focus Lock/Unlock Control
  • 4D Joystick, Durable Metal Housing
  • PoE or 12 VDC Power Options
  • $649.00
    FREE UPS SHIPPING

    PT-SUPERJOY-G1 PTZOptics Superjoy PTZ Controller
  • PTZOptics VISCA over IP & Serial control
  • PTZOptics Camera On Screen Display control
  • Full Pan / Tilt / Zoom camera control
  • P/T/Z Speed adjustment on the fly
  • Direct exposure & white balance control
  • 255 camera presets, 9 Quick presets
  • 4 Customizable buttons (TCP, UDP, & HTTP)
  • Fine tune zoom & focus control dials
  • Buttons glow when available
  • $899.00
    FREE UPS SHIPPING

    HC-JOY-G3 PTZOptics HC-JOY-G3 RS232 Controller
    Easily Pan, Tilt, and Zoom virtually any VISCA, PELCO-D, or PELCO-D protocol camera!
  • VISCA, PELCO-D and PELCO-P protocol support.
  • Large LCD Menu display.
  • Key-press "BEEP" confirmation (optional - set on or off).
  • Pan, tilt, zoom, iris and focus control.
  • Variable speed control of pan, tilt and zoom.
  • Auto/Manual Focus and Iris.
  • Backlight Compensation control.
  • $299.00
    FREE UPS SHIPPING

    HCM-2-BK HCM-2-BK PTZ Camera Universal Wall Mount - BLACK
  • Mounts directly to drywall or masonry with the supplied wall anchors or to a 2-gang wall box
  • Black powder coat paint provides an attractive, tough and lasting finish
  • Mounting holes are slotted and opposed by 90° for easy camera leveling
  • Dimensions (base): 9-13/16" (249.3mm) W x 9-5/8" (244.5mm) D x 3-15/16 (100mm) H
  • Weight: 2.2 lbs, 1 kg
  • Mounting Hardware Included
  • Designed for use with: HuddleCamHD Air 12X, HuddleCamHD Air 20X and other large footprint cameras, such as Minrray, Vaddio, Sony, Cisco, PTZOptics, Polycom, and more
  • $120.00
    FREE UPS SHIPPING

    HCM-2-WH HCM-2-WH PTZ Camera Universal Wall Mount - WHITE
  • Mounts directly to drywall or masonry with the supplied wall anchors or to a 2-gang wall box
  • White powder coat paint provides an attractive, tough and lasting finish
  • Mounting holes are slotted and opposed by 90° for easy camera leveling
  • Dimensions (base): 9-13/16" (249.3mm) W x 9-5/8" (244.5mm) D x 3-15/16 (100mm) H
  • Weight: 2.2 lbs, 1 kg
  • Mounting Hardware Included
  • Designed for use with: HuddleCamHD Air 12X, HuddleCamHD Air 20X and other large footprint cameras, such as Minrray, Vaddio, Sony, Cisco, PTZOptics, Polycom, and more
  • $120.00
    FREE UPS SHIPPING

    Model Description Pricing
    PTZOptics PT-JOY-G3 IP Controller
  • Control up to 253 PTZ Cameras
  • Sony VISCA-over-IP Control
  • For All PTZOptics & Other VISCA Cameras
  • Quick-Switching Hot Keys for 6 x Cameras
  • Customizable Pan/Tilt/Zoom Speeds
  • 100+ Camera Presets
  • Focus, Iris & Zoom Control Buttons
  • Focus Lock/Unlock Control
  • 4D Joystick, Durable Metal Housing
  • PoE or 12 VDC Power Options
  • $649.00
    FREE UPS SHIPPING

    PTZOptics Superjoy PTZ Controller
  • PTZOptics VISCA over IP & Serial control
  • PTZOptics Camera On Screen Display control
  • Full Pan / Tilt / Zoom camera control
  • P/T/Z Speed adjustment on the fly
  • Direct exposure & white balance control
  • 255 camera presets, 9 Quick presets
  • 4 Customizable buttons (TCP, UDP, & HTTP)
  • Fine tune zoom & focus control dials
  • Buttons glow when available
  • $899.00
    FREE UPS SHIPPING

    PTZOptics HC-JOY-G3 RS232 Controller
    Easily Pan, Tilt, and Zoom virtually any VISCA, PELCO-D, or PELCO-D protocol camera!
  • VISCA, PELCO-D and PELCO-P protocol support.
  • Large LCD Menu display.
  • Key-press "BEEP" confirmation (optional - set on or off).
  • Pan, tilt, zoom, iris and focus control.
  • Variable speed control of pan, tilt and zoom.
  • Auto/Manual Focus and Iris.
  • Backlight Compensation control.
  • $299.00
    FREE UPS SHIPPING

    HCM-2 PTZ Camera Universal Wall Mount - BLACK
  • Mounts directly to drywall or masonry with the supplied wall anchors or to a 2-gang wall box
  • Black powder coat paint provides an attractive, tough and lasting finish
  • Mounting holes are slotted and opposed by 90° for easy camera leveling
  • Dimensions (base): 9-13/16" (249.3mm) W x 9-5/8" (244.5mm) D x 3-15/16 (100mm) H
  • Weight: 2.2 lbs, 1 kg
  • Mounting Hardware Included
  • Designed for use with: HuddleCamHD Air 12X, HuddleCamHD Air 20X and other large footprint cameras, such as Minrray, Vaddio, Sony, Cisco, PTZOptics, Polycom, and more
  • $120.00
    FREE UPS SHIPPING

    HCM-2-WH PTZ Camera Universal Wall Mount - WHITE
  • Mounts directly to drywall or masonry with the supplied wall anchors or to a 2-gang wall box
  • White powder coat paint provides an attractive, tough and lasting finish
  • Mounting holes are slotted and opposed by 90° for easy camera leveling
  • Dimensions (base): 9-13/16" (249.3mm) W x 9-5/8" (244.5mm) D x 3-15/16 (100mm) H
  • Weight: 2.2 lbs, 1 kg
  • Mounting Hardware Included
  • Designed for use with: HuddleCamHD Air 12X, HuddleCamHD Air 20X and other large footprint cameras, such as Minrray, Vaddio, Sony, Cisco, PTZOptics, Polycom, and more
  • $120.00
    FREE UPS SHIPPING
