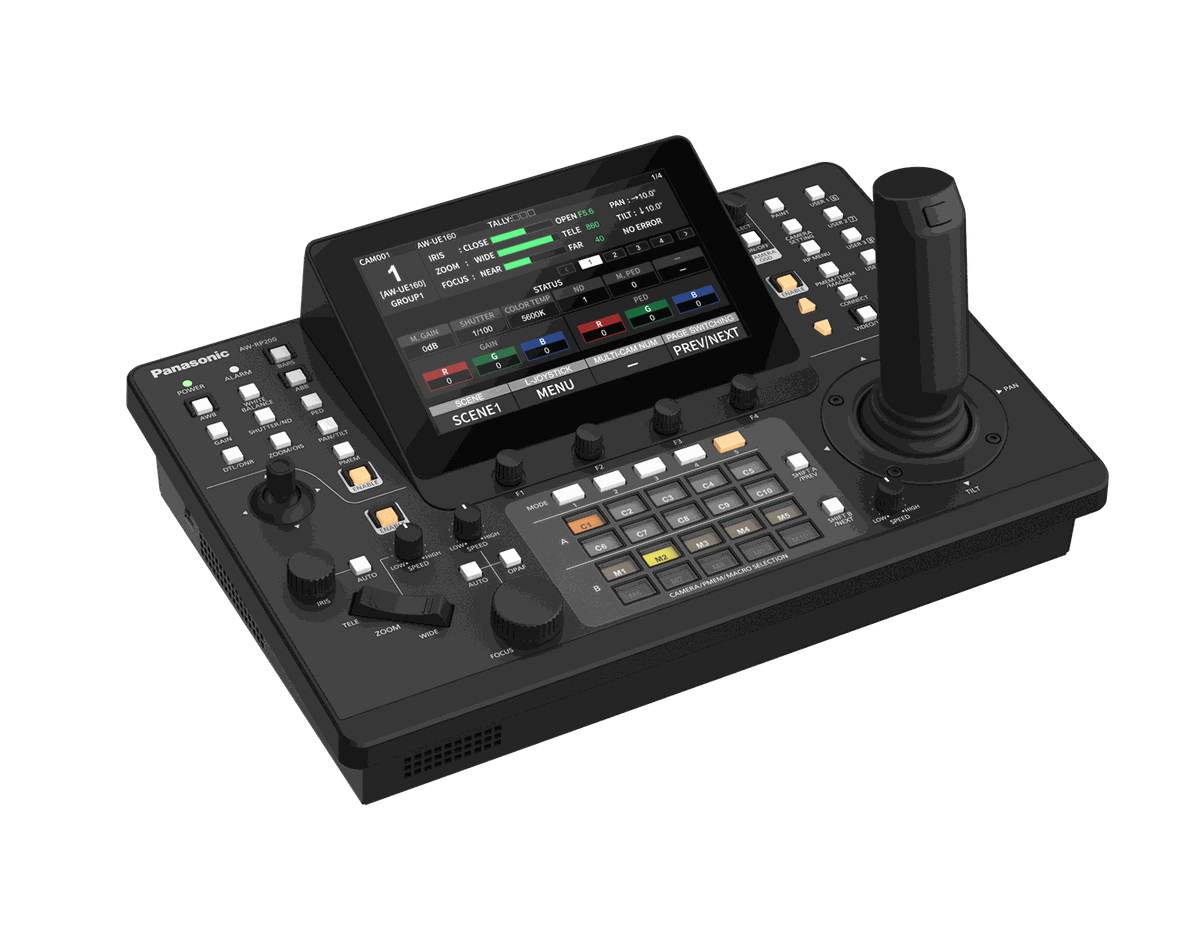

Panasonic AW-RP200GJ Camera Controller

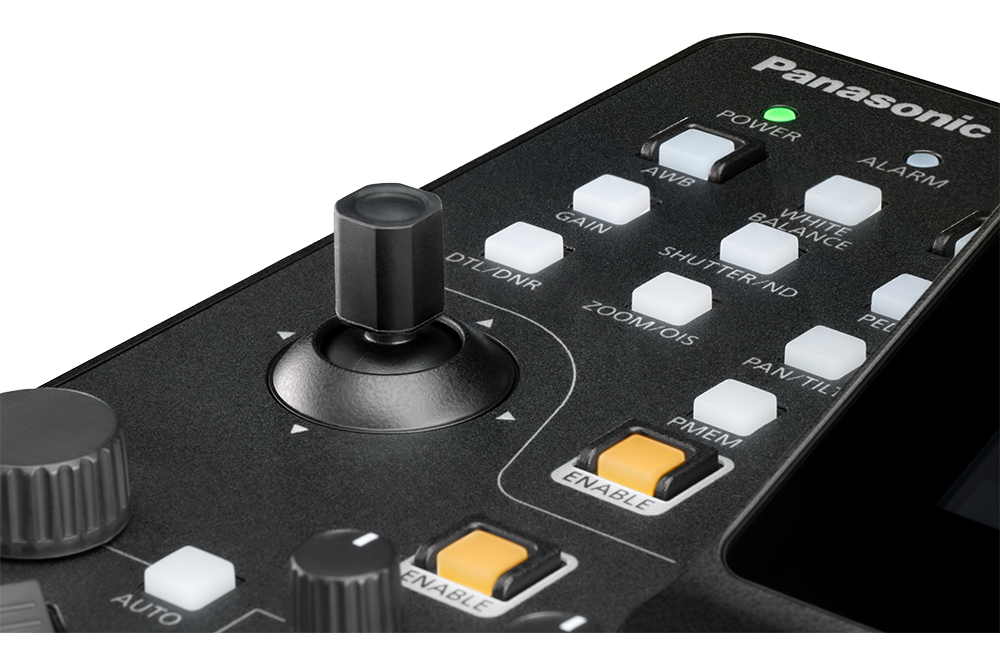

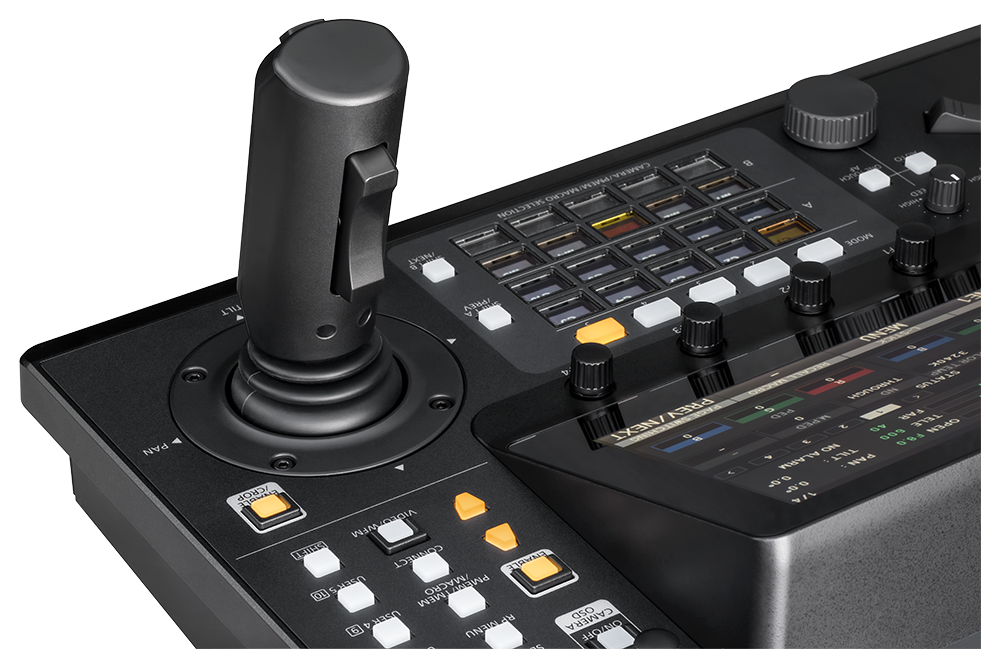

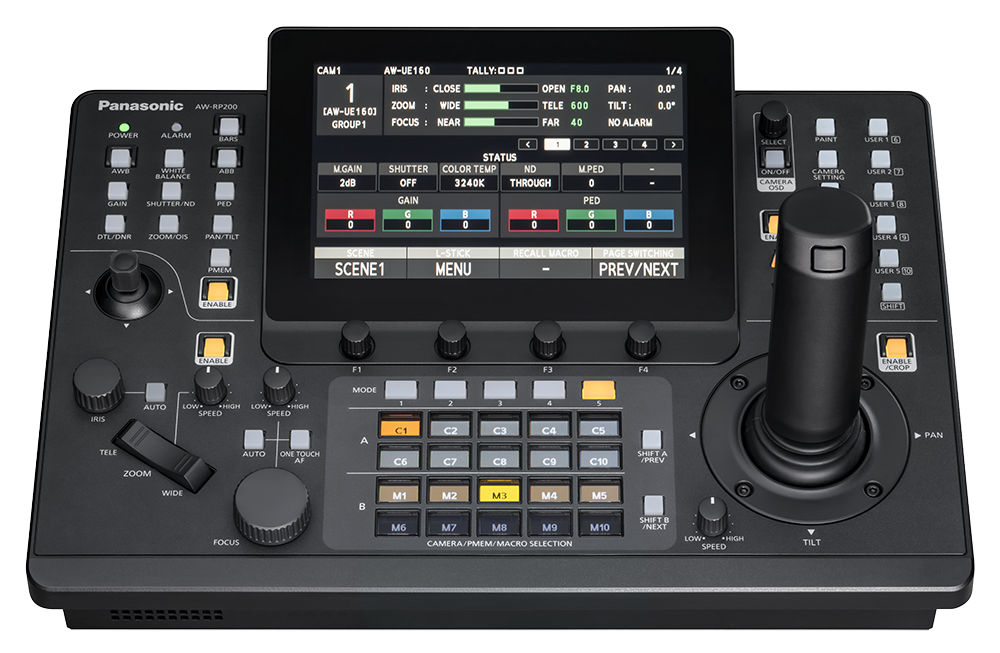

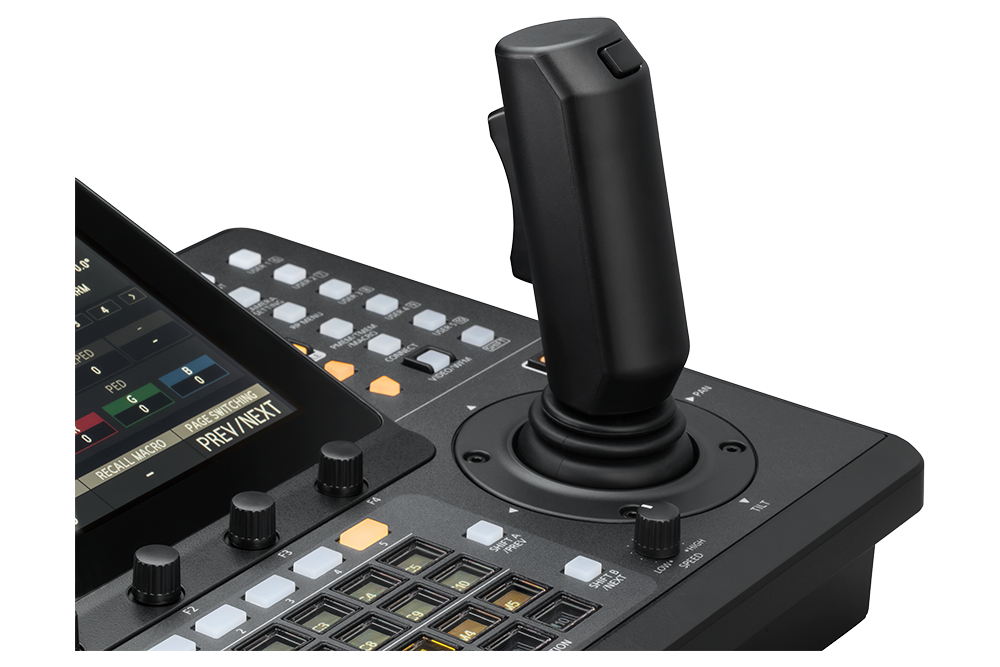

The AW-RP200GJ is Panasonic's flagship remote camera controller, built around two joysticks and a 7-inch touchscreen. The right joystick drives pan, tilt, zoom, and focus, while the left handles multi-camera control and other functions, so a single operator can run a complex show without swapping panels. The touchscreen doubles as a monitor with a built-in waveform monitor and vectorscope, and 20 customizable LCD buttons put camera selection, presets, and macros a single touch away.

It manages up to 200 pan/tilt cameras over IP and three over RS-422, and it accepts Full HD video directly over NDI and SRT in addition to 3G-SDI input and output, so a return feed reaches the operator without a separate monitor chain. Macros chain multi-camera moves and preset actions into one-touch sequences. Power is DC 12V or PoE++ per IEEE802.3bt (DC 42V to 57V). The unit measures 364 by 178 by 245 mm and weighs about 3.5 kg.
