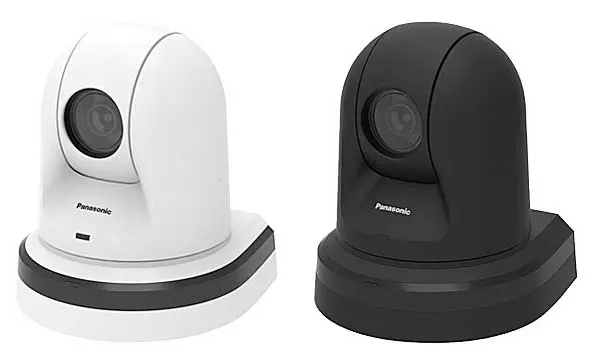

Panasonic AW-HE40 & AW-HN40
Integrated Pan/Tilt/Zoom Cameras

• Newly Developed 1/2.3-type MOS Sensor
• High Performance Optical 30x Zoom Lens/ Super Resolution 40x Zoom
• Night Mode (supports automatic switching)
• Equipped with High Dynamic Range (HDR) mode
• Outputs Still Image During Preset Movements; Supports One-Camera Operations
• Selection of SDI model/HDMI model and colors for flexible integration and application
• Audio input function
• Exceptional pan-tilt performance for smooth shooting over a wide area
• IP control with image monitoring using PC, Mac and mobile terminals
• Flexible IP Control Architecture Simplies System Design and Operation
• Preset memory up to 100 positions.
• Functions such as freeze during preset, digital extender zoom and color temperature settings can be assigned to the user buttons on Panasonic controllers.
• Equipped with RS422 remote terminal; up to five units can be controlled via serial control from a controller.
• Equipped with RS232C remote terminal (standard serial communication support). Up to seven units can be controlled via daisy chain connection. Up to four units can be operated with a wireless remote controller (AW-RM50G sold separately).
• Easy installation thanks to use of turn-lock mechanism.

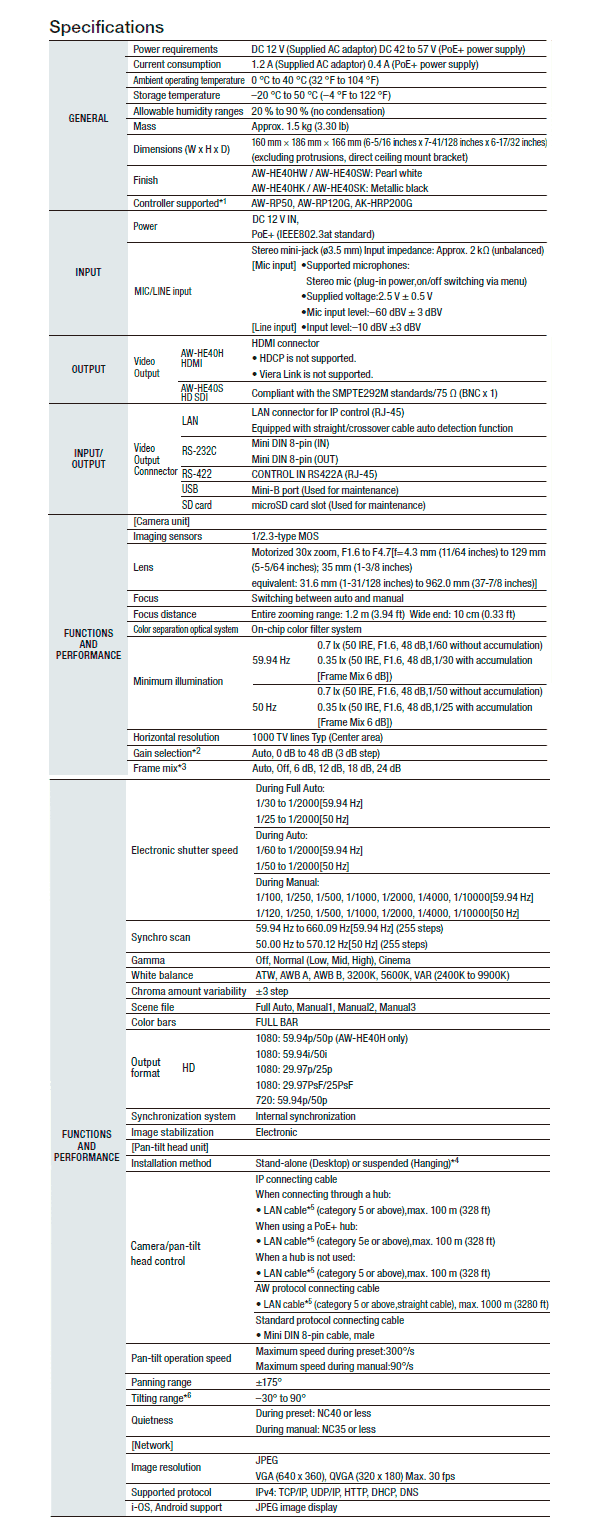

*1: It may be necessary to upgrade the version of the controller in order to support the unit. For the latest information on supported OS/browsers, please refer to "service and support" section on the Panasonic website (http://pro-av.panasonic.net/en/). *2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting. *3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting. *4: To ensure safety, the unit must be secured using the mount bracket supplied. *5: Use of an STP (shielded twisted pair) cable is recommended. *6: Depending on the pan or tilt position, the camera may be reflected in the image. * Microsoft®, Windows®, Windows® 7, Windows® 8, Windows® 8.1 and Internet Explorer® are either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. * Apple, Mac, OS X, iPhone, iPod Touch, iPad, and Safari are registered trademarks of Apple Inc., in the United States and other countries. * Android™ is a trademark of Google Inc.
