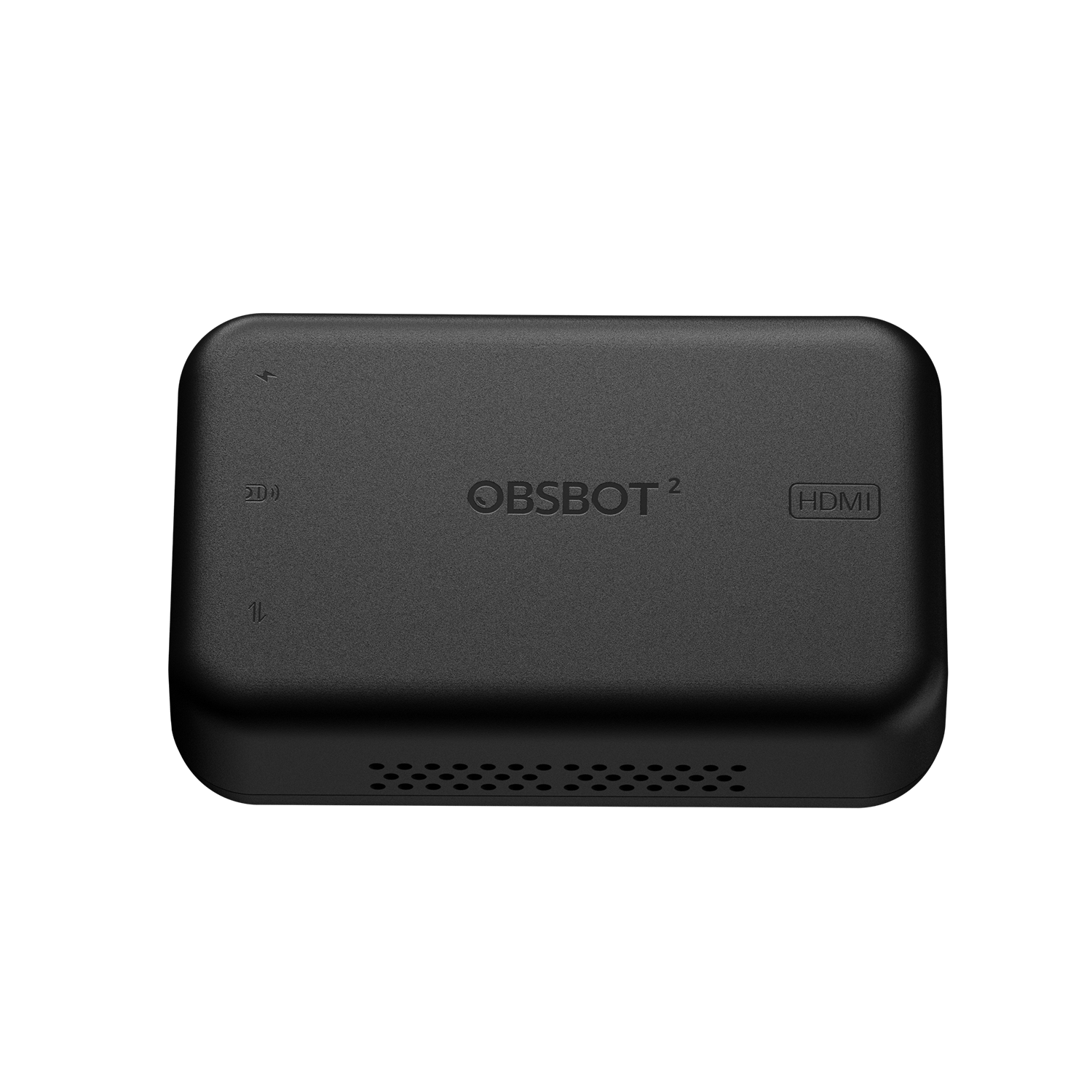

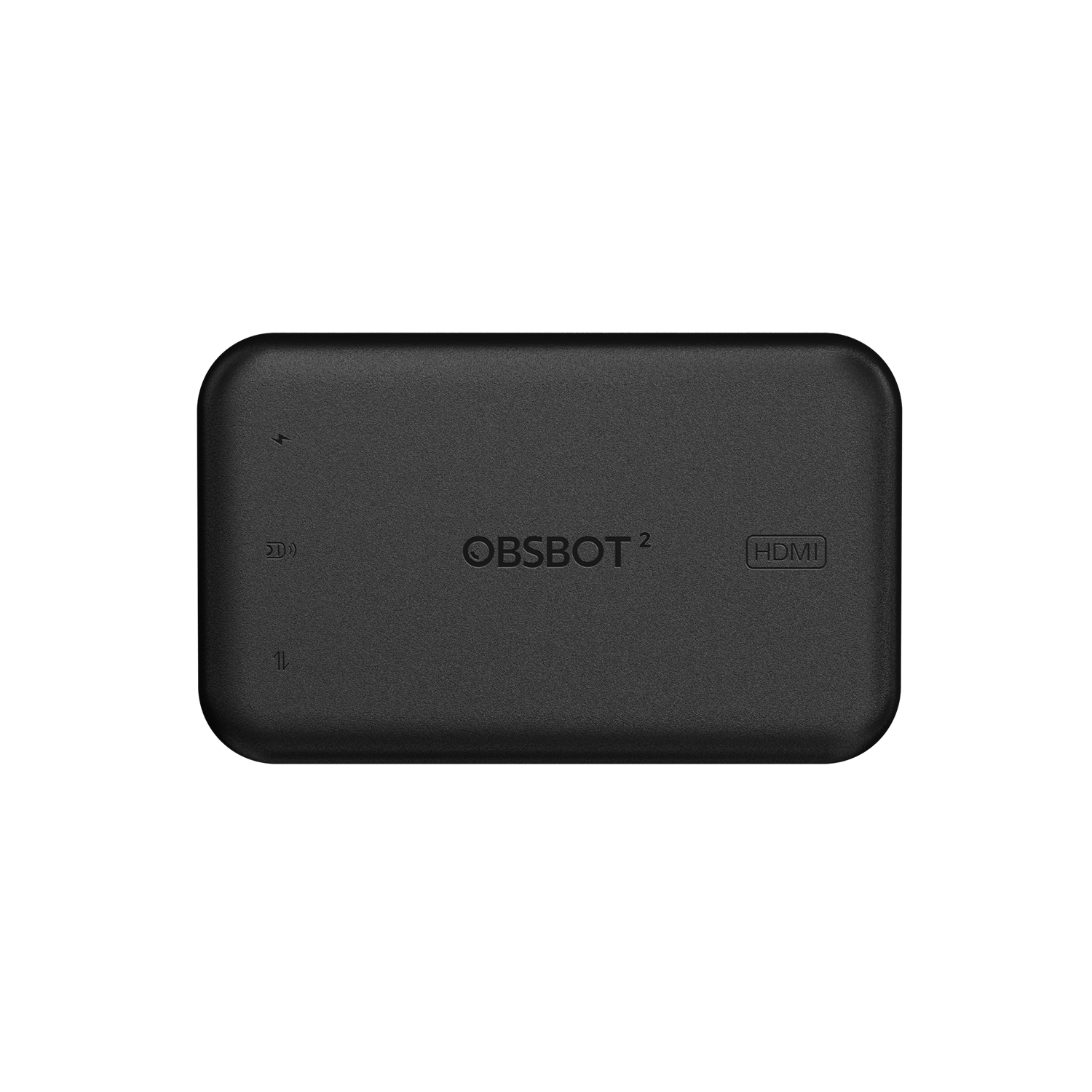

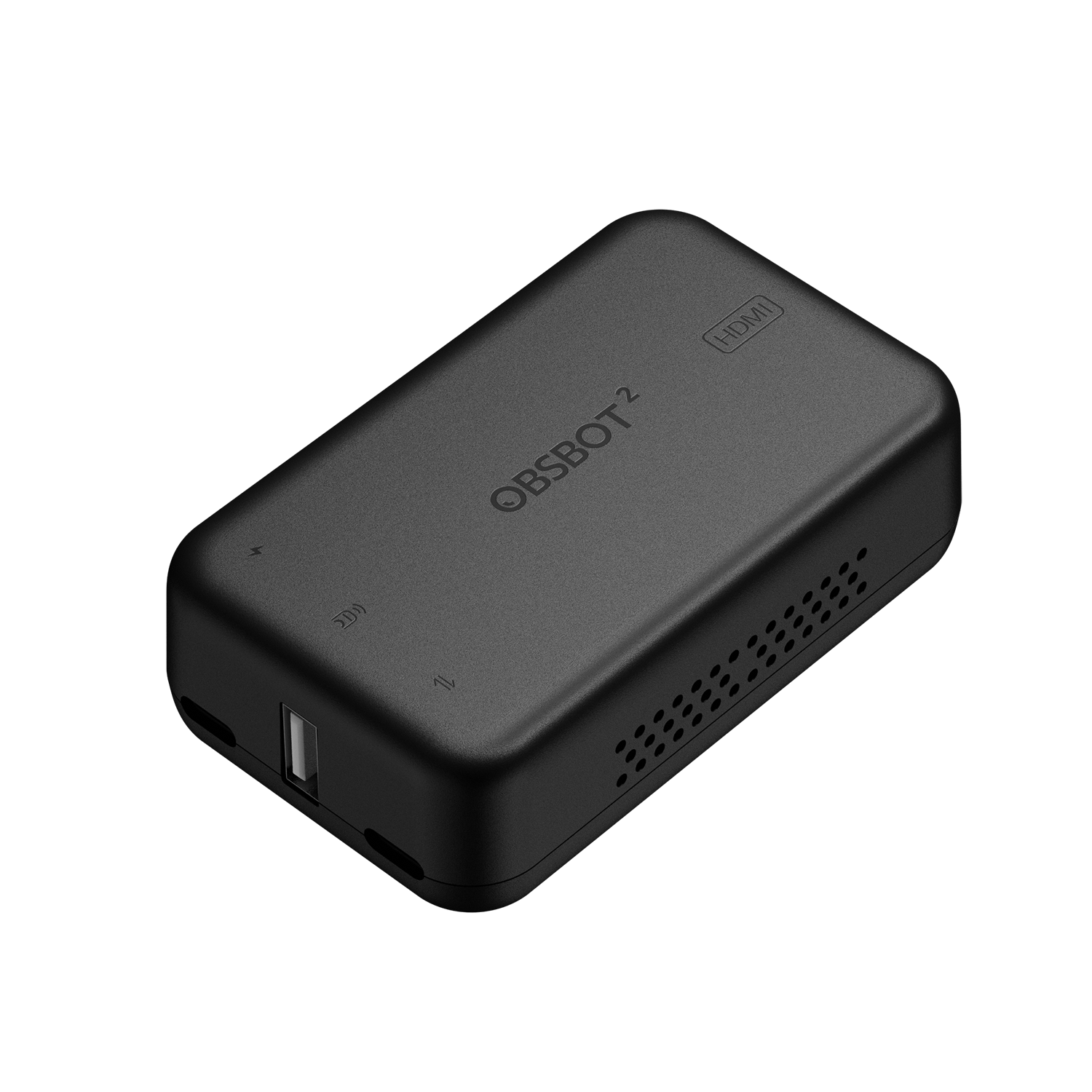

OBSBOT UVC to HDMI Adapter 2nd Gen

OBSBOT's cameras are USB devices, which is fine until the thing you need to feed is a switcher, a projector or a smart TV. The UVC to HDMI Adapter 2nd Gen sits between them: a USB-C input takes the camera, an HDMI output goes to whatever expects a video cable, and the conversion runs up to 4K at 30fps or 1080p at 60fps with no driver to install on either end.

Latency is low enough for live calls and there is no time limit or HDMI port restriction on the conversion. A USB port on the adapter accepts the receiver for an OBSBOT Meet or Tiny remote controller, so the camera can still be driven by hand once it is off the computer, and firmware updates run through OBSBOT's software. Compatibility with ATEM switcher UVC inputs is supported. Power comes from a supply of at least 5V/2A/10W on the dedicated power port, not from a computer USB port.

FunctionUVC (USB) camera to HDMI conversion
Max Resolution4K at 30fps, 1080p at 60fps
Video OutputHDMI 1.4
Camera InputUSB-C
ControlUSB port for OBSBOT Meet or Tiny remote controller receiver
PowerDedicated power port, 5V/2A/10W minimum (not from a computer USB port)
SetupPlug and play, no driver required
In the BoxAdapter, USB-C to USB-C cable (1.5 m)
OBSBOT - How to use the OBSBOT UVC to HDMI adapter
