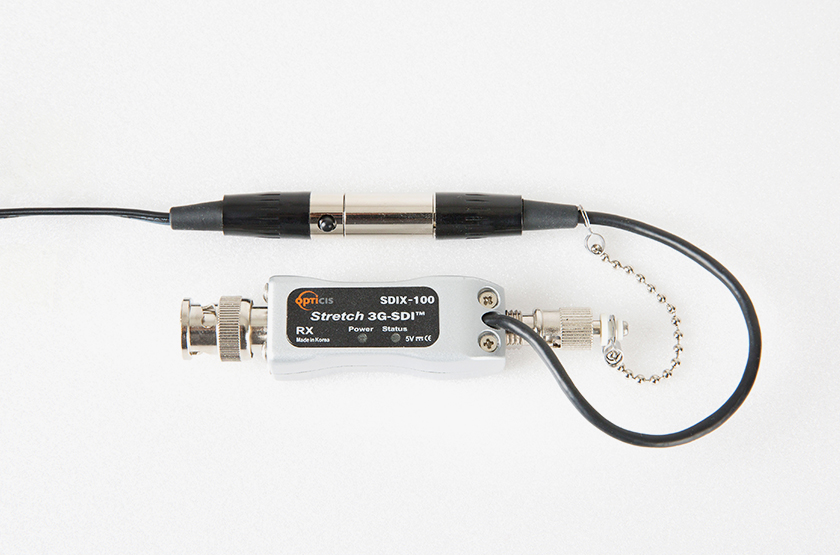

Opticis SDIX-100-TR Miniature Fiber Optic 3G-SDI Module

The SDIX-100-TR is Opticis's miniature Fiber Optic 3G-SDI Module. Supports multi-rate SDI up to 3G-SDI over one (1) fiber.

In the box: Locking Housing. Extends up to 2Km at 3Gbps. Latch-locking power connector (mini-XL). Robust metal die-casting enclosure for harsh environment. Operating temperature: 0 ~ 50 C.

Cable / FiberSupports multi-rate SDI up to 3G-SDI over one (1) fiber
BandwidthExtends up to 2Km at 3Gbps
PowerLatch-locking power connector (mini-XL)
EnclosureRobust metal die-casting enclosure for harsh environment
Operating TemperatureOperating temperature: 0 ~ 50 C
Form FactorDimensions (WDH): 19.5 x 82.7 x 19.5mm
IncludedLocking Housing
Part NumberSDIX-100-TR
