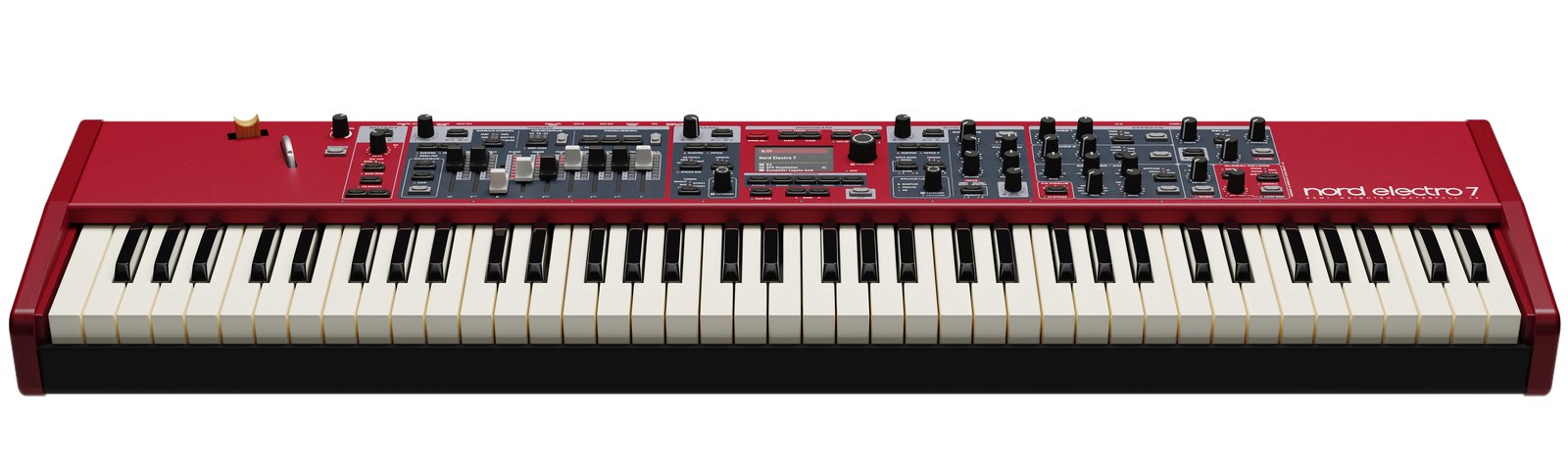

Nord Electro 7 73 Stage Keyboard

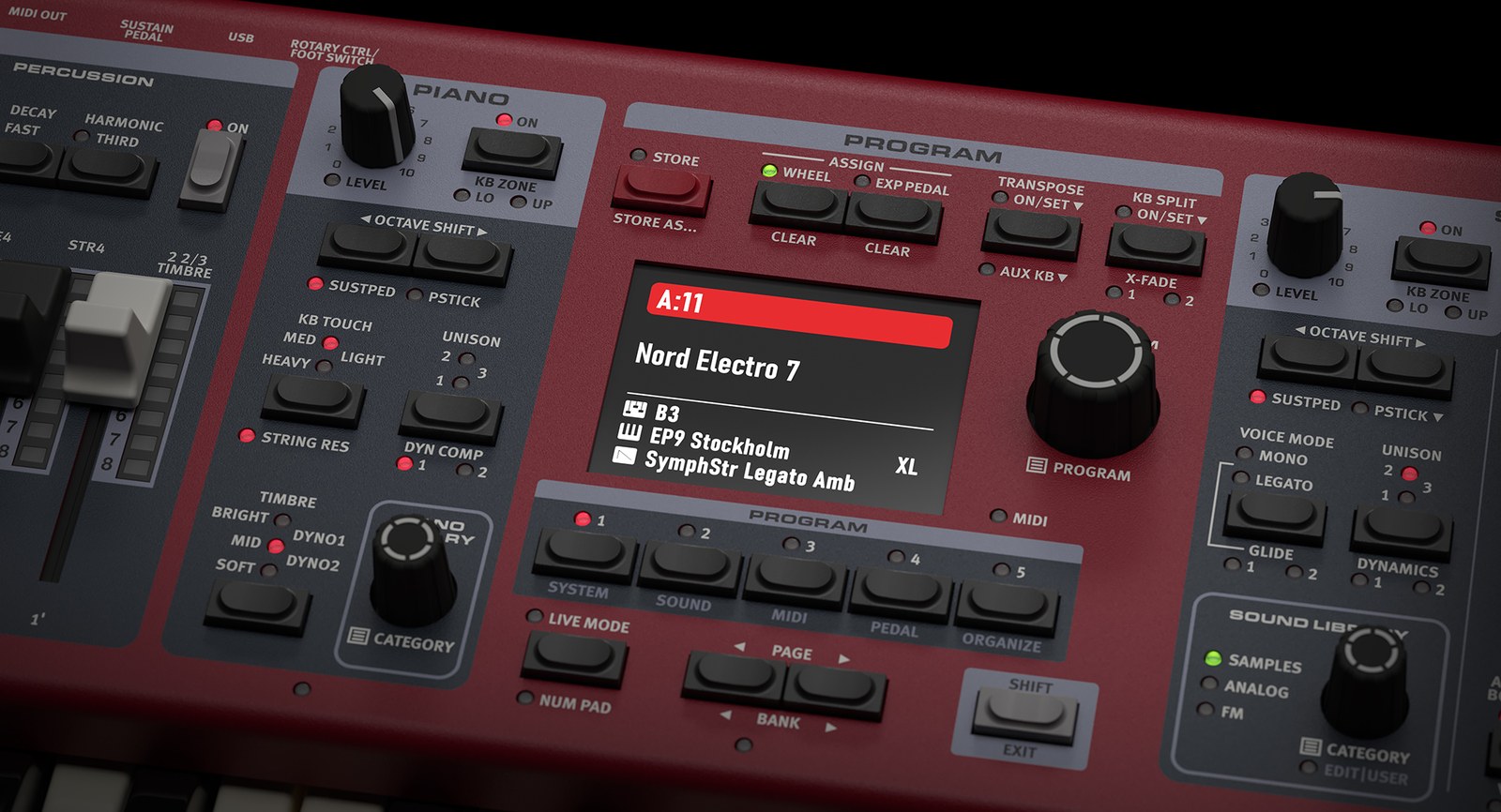

The Nord Electro 7 73 is the six-octave, E-to-E version of the Electro 7 and the one most organ and keyboard players will reach for on a gig. The organ section comes straight from the Nord Organ 3: B3, Soft B3, Vox, Farfisa and Pipe models, physical drawbars with LED indicators, percussion and vibrato/chorus controls, and the Organ 3 rotary speaker with Close, Wide and XY mic positions. The piano section runs the Nord Piano Library with string resonance and 120-voice polyphony, and the new synth section adds sample, analog and FM sounds with a filter, envelopes and unison. Every section has its own effects, from the Mod 1 and Mod 2 blocks through amp models, delay, compressor and a global reverb with a spring type that sits before the rotary.
The 73-key semi-weighted waterfall keybed is joined by a pitch stick and modulation wheel, and the panel carries a mount for the Half-Moon Switch. Round the back you get unbalanced quarter-inch L/R outputs, a headphone jack, a 3.5 mm monitor input, expression, sustain and rotary/foot-switch pedal jacks, five-pin MIDI in and out, and USB for MIDI, updates and sound transfer. Power is an IEC cord. At 9.5 kg it goes into a Nord Soft Case 73 with room to spare. Ships with a user manual and power cord.
| Keybed | 73-key (6 octaves, E-E) Semi Weighted Waterfall keyboard |
|---|---|
| Performance Controls | Pitch Stick and Modulation Wheel |
| Sound Sections | Organ, Piano and Synth |
| Organ Models | B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe, with physical drawbars |
| Piano Polyphony | 120 voices for Piano Library sounds |
| Synth Section | Sample, Analog and FM synthesis, 30+ voice polyphony |
| Program Memory | 20 banks x 25 programs (500 locations), 5 Live programs |
| Audio Outputs | 2 x 1/4 in unbalanced L/R, 1/4 in stereo headphone, 1/8 in monitor input |
| Pedal Inputs | Expression (1/4 in TRS), Sustain (1/4 in), Rotary Control/Foot Switch (1/4 in) |
| MIDI | 5-pin DIN In and Out, USB type B (MIDI, software update, sound transfer) |
| Dimensions | 1066 x 104 x 294 mm (42 x 4.1 x 11.6 in) |
| Weight | 9.5 kg (20.9 lbs) |
| Included | User manual, power cord (IEC C14) |
