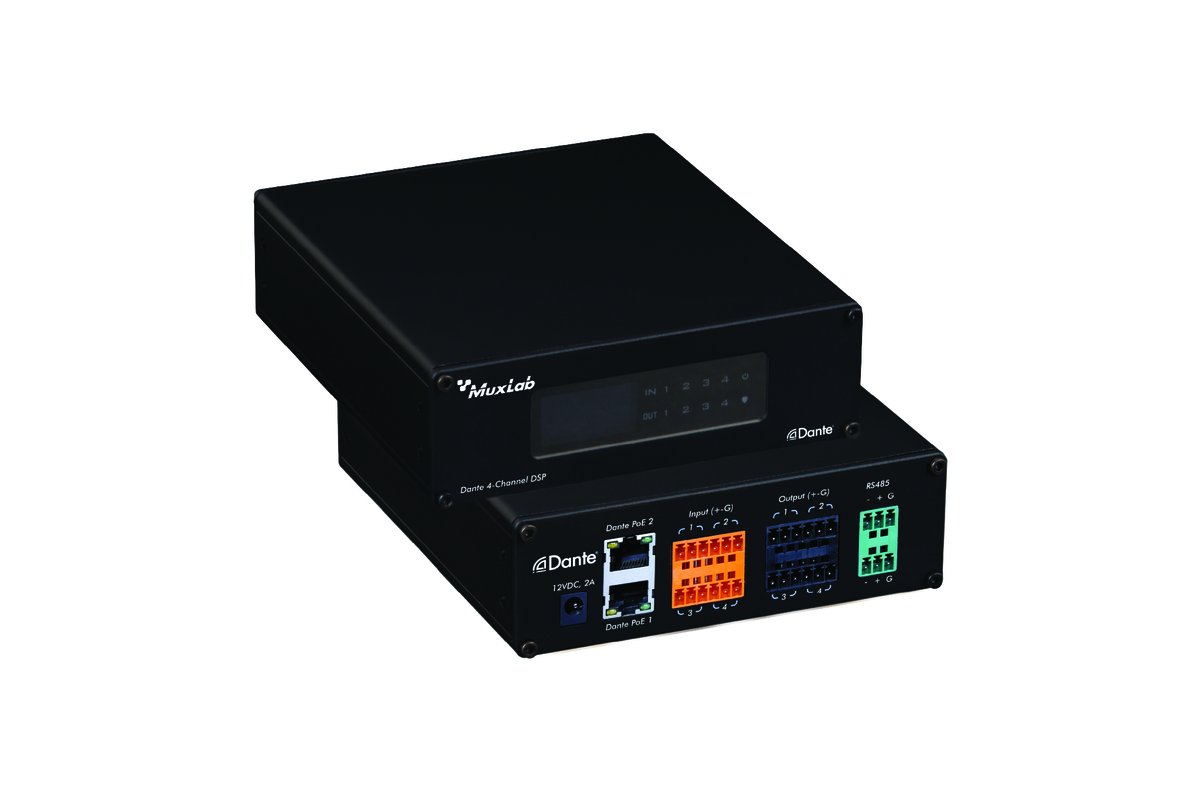

MuxLab 500556 Dante 4-Channel Audio DSP

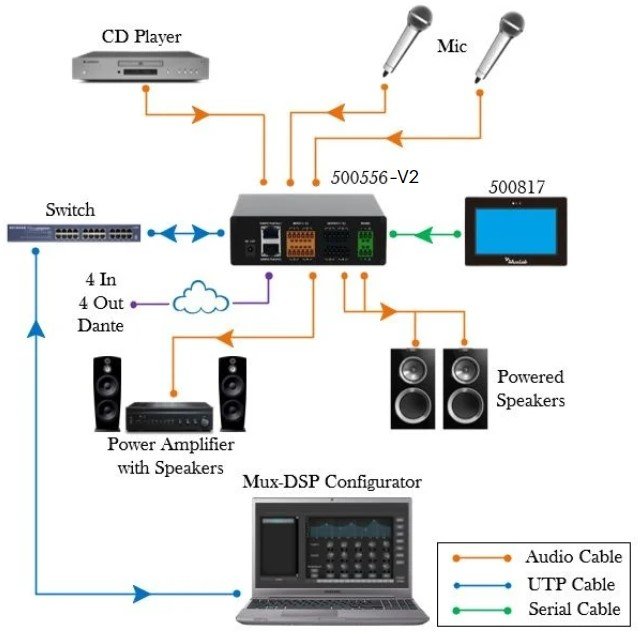

The 500556-V2 bridges four balanced analog channels to Dante in both directions, with 48VDC phantom power for condenser microphones and onboard DSP: gain, EQ, compression, mixing, and limiting all run in the unit rather than requiring a separate processor.

Control comes from Windows software on the network, RS232/RS485 for a control system, or a published Crestron API for programmers integrating it into a room system. PoE or 12V DC power keeps installation options open.

Signal Format	Four Dante digital inputs and outputs
Sensitivity	48VDC phantom power supported
Input	Four balanced analog inputs
Output	Four balanced analog outputs
Control	Windows PC software, RS232, RS485, TCP/IP, and Crestron API
Compatibility	One USB audio input and output
Power	PoE or 12V DC
