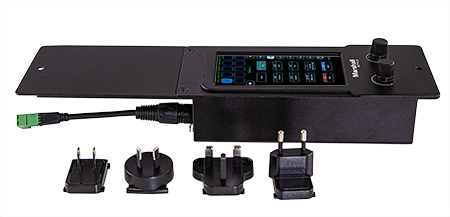

Marshall Electronics RCP-PLUS Multi-Camera Control Touchscreen RCP

The RCP-PLUS is a 5-inch touchscreen camera control panel that operates up to seven broadcast cameras at distances up to 300 meters over XLR cable, or up to 63 cameras over VISCA-over-IP (70 combined). Pre-programmed protocols cover Marshall and non-Marshall camera brands, and finger-dial touch controls adjust white balance, gain, gamma, exposure, iris and shutter without triggering the camera's on-screen menu.

It connects over a 3-pin XLR receptacle (RS485), USB 2.0 or LAN RJ-45, and runs on 12V DC or PoE at under 3 watts, making it light enough for a fly-pack control position.

Display	5 inch TFT LCD touchscreen, 480 x 854, 400 cd/m2
Camera Support	Up to 7 via RS485; 63 via VISCA-over-IP; 70 combined
Connections	3-pin XLR (RS485), USB 2.0, LAN RJ-45
Control	VISCA-over-IP, VISCA RS485
Baud Rates	4800, 9600 (default), 19200, 38400, 115200
Power	DC 12V or PoE, <3W
Dimensions	101.6 x 218.3 x 48 mm, 725g
Operating Temp	-20C to 70C
