Marshall Electronics VS-PTC-300 PTZ Camera IP/NDI Controller
The VS-PTC-300 controls PTZ cameras across multiple protocols from one controller: RS232, RS422, RS485, IP, ONVIF and VISCA over IP, mixed on the same network. It connects up to 7 cameras via RS232, 14 via RS422, or 255 via NDI/IP, with automatic NDI/IP camera discovery scanning the network for you.
A PTZ joystick, zoom rocker and individual knobs for iris, white balance, exposure, red/blue, shutter speed, focus, and pan/tilt and zoom speed give direct access to those settings without digging through an on-camera menu. It stores 6 ASSIGN function keys and up to 256 camera presets, each holding its own image settings.
- Camera Capacity7 via RS232, 14 via RS422, 255 via NDI/IP

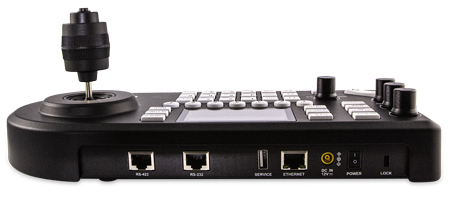

- ConnectionsRS-232 RJ45, RS-422 RJ45, Ethernet RJ45 (PoE)
- PowerDC 12V (EIAJ-04)
- Display3 inch LCD, 360x640, RTSP/NDI preview
- Joystick4-axis pan/tilt/zoom
| Display | 3 inch LCD, 360x640, RTSP/ preview |
|---|---|
| Joystick | 4-axis pan/tilt/zoom |
| Connections | RS-232 RJ45, RS-422 RJ45, Ethernet RJ45 () |
| Protocols | VISCA, VISCA over IP, ONVIF, NDI, PELCO D/P |
| Camera Capacity | 7 via RS232, 14 via RS422, 255 via NDI/IP |
| Preset Memory | 256 camera presets |
| Power | DC 12V (EIAJ-04) |
| Operating Temp | 0C to 40C |
