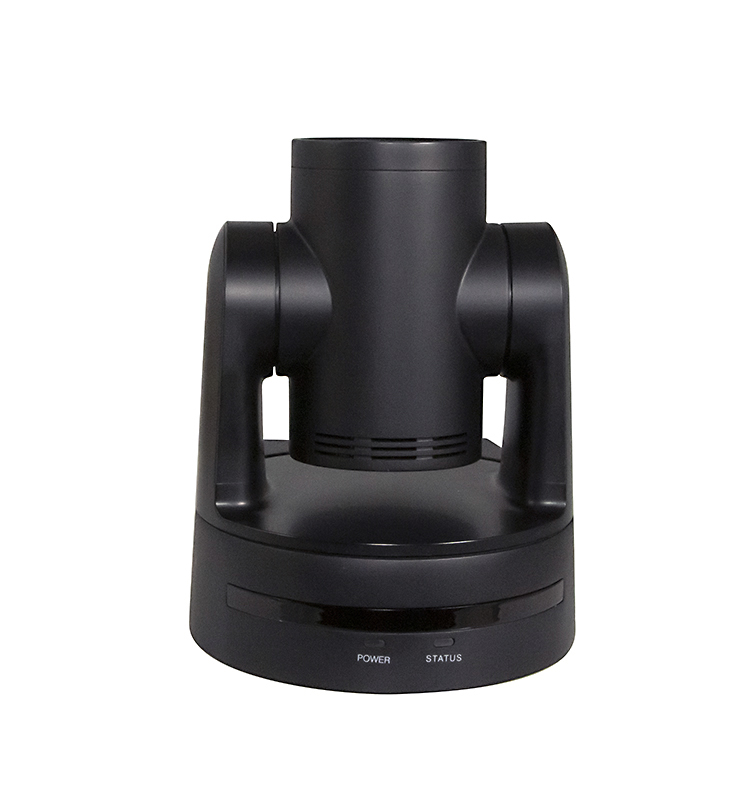

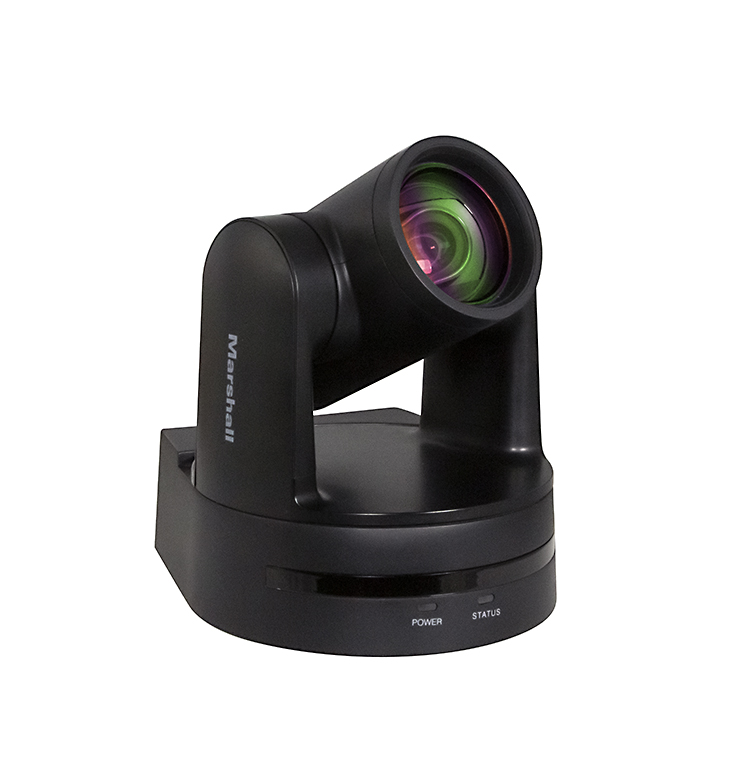

Marshall Electronics CV612 12x Intelligent Auto Track and Framing PTZ Camera

The CV612 pairs a 1/2.8-inch 2.07-megapixel sensor with a 12x optical (8x digital) zoom for auto-tracking and framing, holding subjects in frame from a starting field of view of roughly 70 degrees. It captures clear HD video up to 1920x1080p across 3G-SDI, HDMI, USB3.0 Type-C and IP outputs, so it drops into SDI truck, USB conferencing and networked workflows without a separate encoder.

Control covers VISCA, Pelco-D/P, RS232, ONVIF, a web browser and an IR remote, with a pan range of +/-170 degrees and tilt from -90 to +90 degrees. TBI is the black housing, TWI the white; both share the same optics and electronics.

Sensor	1/2.8 inch CMOS, 2.07 MP
Zoom	12x optical (4.1-49.2mm), 8x digital

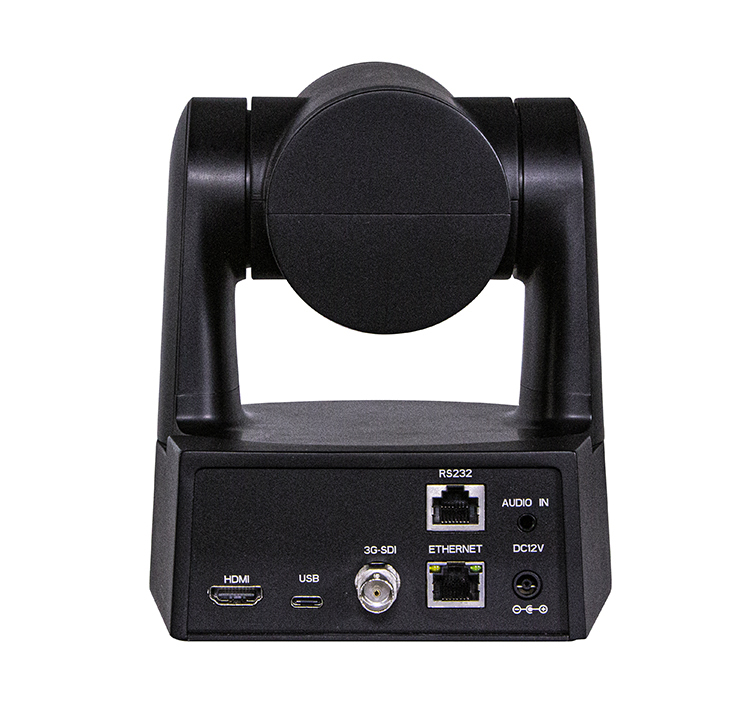

Outputs	3G-SDI, HDMI, USB3.0 Type-C, LAN (IP)
Resolutions	1920x1080, 1280x720, 640x480 at 60/50/30/25fps
Pan/Tilt	+/-170 deg pan, -90 to +90 deg tilt
Control	VISCA, Pelco-D/P, RS232, ONVIF, web browser, IR remote
Power	DC12V +/-10%, 1.25A (15W max)
Dimensions	162.3 x 146.2 x 164.9 mm, 1.49 kg
