Lake People DIGI-TOOL F611 AES/EBU Distribution Amplifier

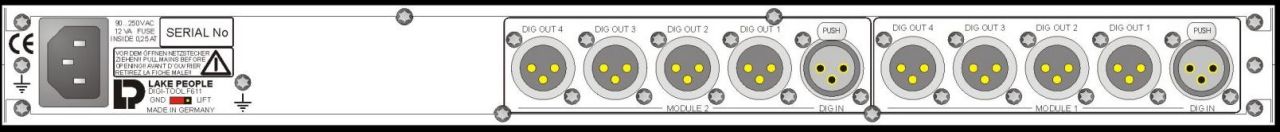

The DIGI-TOOL F611 distributes AES/EBU signals in a 19 inch, 1U frame. Two identical modules each take one input to four outputs, and an internal switch links them so a single source feeds all eight outputs instead. Inputs and outputs are on XLR at the 110 ohm AES standard, and sensitivity below 200 mV lets the unit regenerate a signal that has already travelled a long cable.

Word length is 24 bit and sample rates run to 192 kHz. A Multi-Sync option is available for installations that need it. The internal supply runs on 230 V or 115 V AC, and the unit ships with power cord and manual.
