Lake People DIGI-TOOL F622 Word Clock Distribution Amplifier

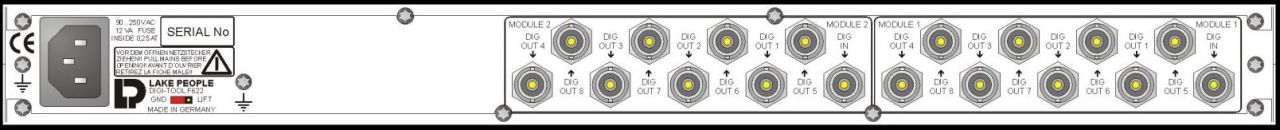

The DIGI-TOOL F622 is the clock distribution member of the Lake People digital range, built for word clock or AES-id. Two identical modules each take one input to eight unbalanced BNC outputs at 75 ohms, and an internal switch links them so one source feeds all sixteen. High sensitivity inputs regenerate clock edges that have been rounded off by a long run.

Output voltage is high enough to drive long cable distances, and jumpers switch output impedance from 75 to 50 ohms and put the unit into Superclock 256 Fs mode where a studio needs it. Word length is 24 bit, and a Multi-Sync option is available. The 19 inch 1U chassis runs on an internal 230 V or 115 V supply.
