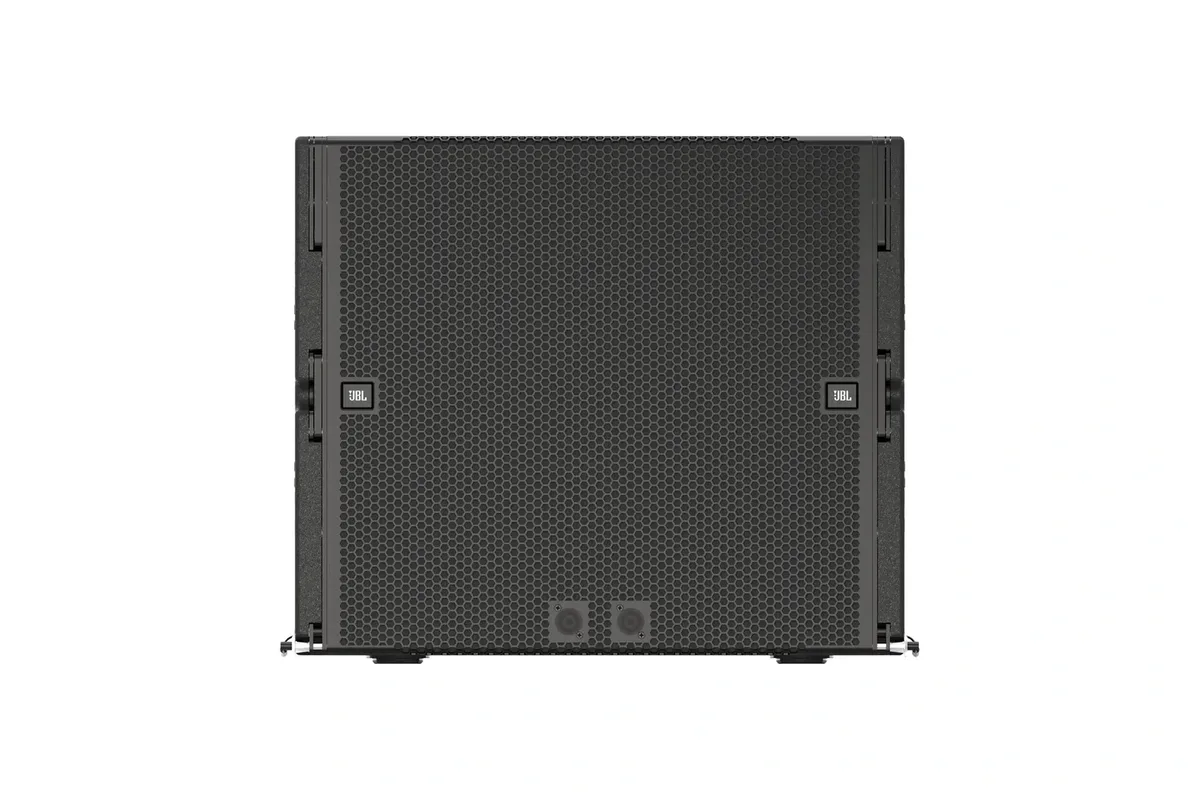

JBL VTX B15 Compact Arrayable 15-inch Subwoofer

The VTX B15 is a compact arrayable 15-inch subwoofer, from the VTX touring range. The low-frequency section uses (1) JBL 2285H, 15 in diameter, dual 4 in diameter voice coil, neodymium Differential Drive. Nominal coverage is Omnidirectional or Cardioid. Frequency range is 35 Hz-95 Hz (Preset: 80 Hz). Maximum SPL at 1 m is 132 dB (Preset: 80 Hz). Nominal impedance is 8 ohms.

The enclosure is 15 mm, 18 mm and 24 mm exterior grade birch plywood, black DuraFlexTM finish, two integral recessed handles. It measures 446 mm x 536 mm x 586 mm 18.3 in x 21.1 in x 23.1 in. Net weight is 41.5 kg (91.5 lbs).
