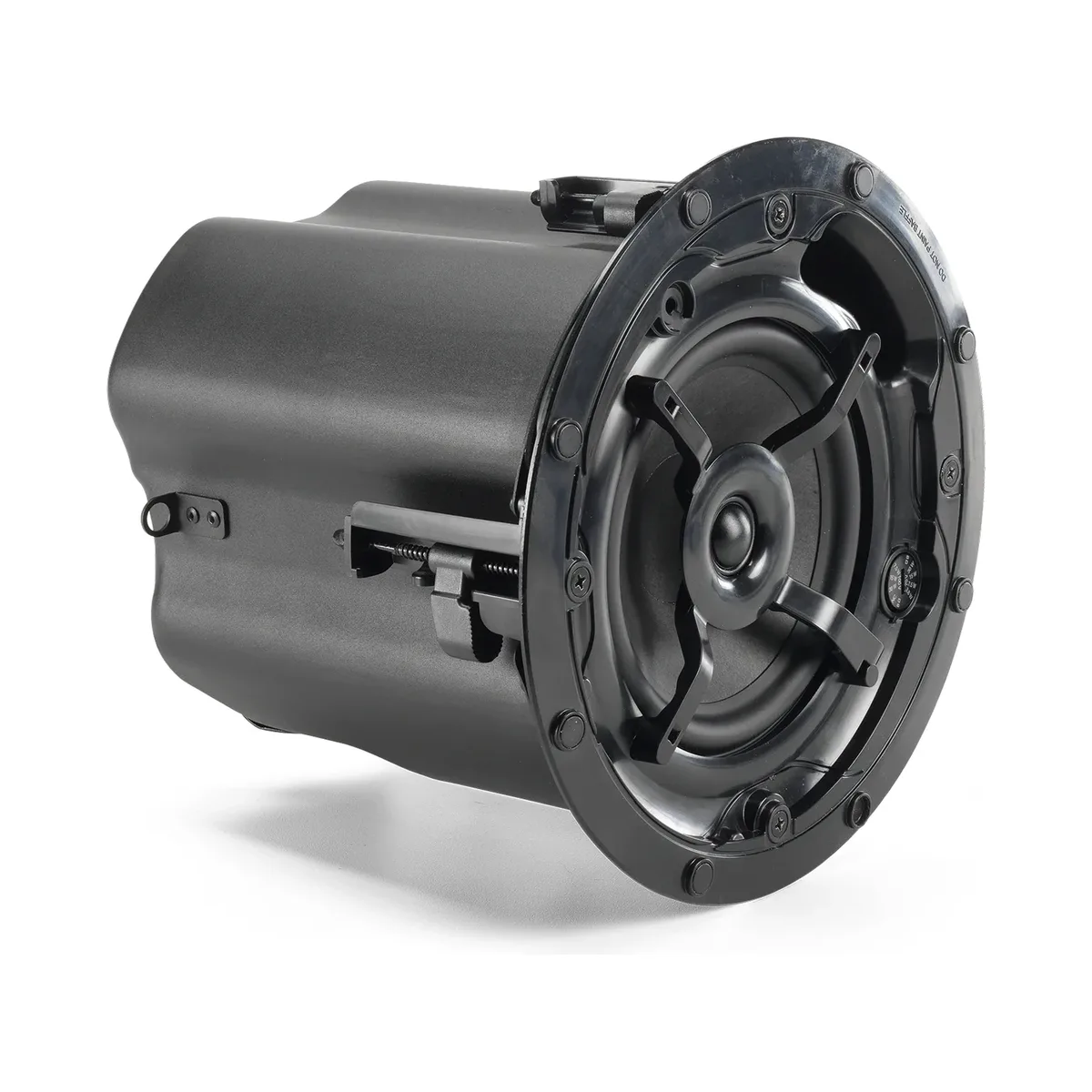

JBL Control 416C/T 6.5" Two-Way Coaxial Ceiling Loudspeaker

The Control 416C/T is a 6.5" two-way coaxial ceiling loudspeaker, from the Control Contractor 400 Series. Transducers are LF: 165 mm (6.5 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome. Nominal coverage is 120 degrees conical. JBL rates it at 75W (300W Peak) Cont. Pink Noise (2 hrs) 50W (200W Peak) Cont. Pink Noise (100 hrs). Maximum SPL at 1 m is 108 dB continuous pink noise (114 dB peak). Nominal impedance is 8.

Transformer taps are 70 V: 30 W, 15 W, 7.5 W & 3.8 W 100 V: 30 W, 15 W, 7.5 W. Environmental rating: IP rating: IP33 per EN/IEC 60529. Operating temperature: 0 degrees C to 45 degrees C. It measures 233 mm (9.3 in) H x 261 mm (10.4 in) dia. 222 mm (8.9 in) from bottom of ceiling tile to top of backcan.
