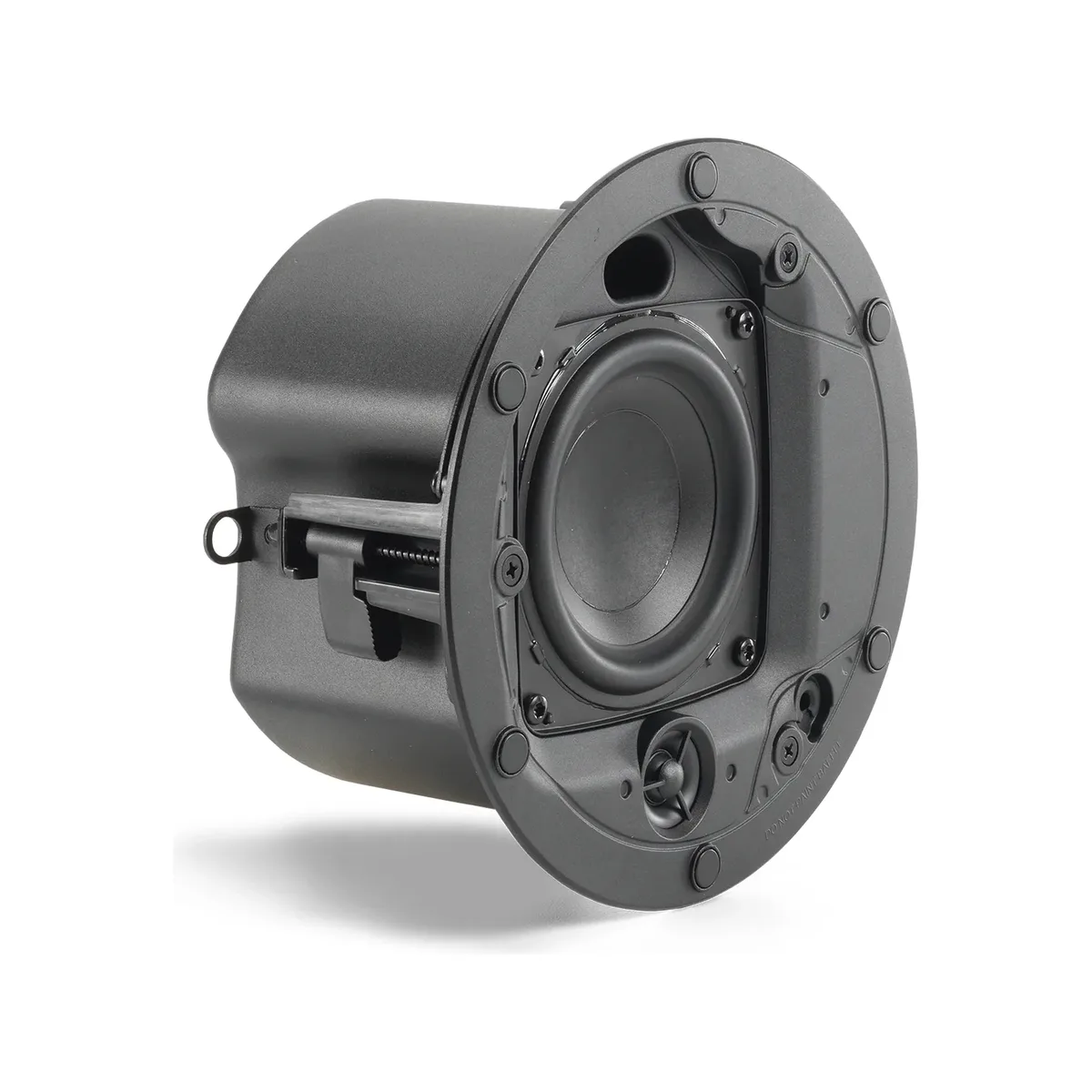

JBL Control 414C/T Micro 4" Two-Way Ceiling Loudspeaker with Low-Profile Enclosure

The Control 414C/T Micro is a 4" two-way ceiling loudspeaker with low-profile enclosure, from the Control Contractor 400 Series. Transducers are LF: 103 mm (4 in) with PP cone and paper cup, SBR surround HF: 13 mm (0.5 in) PEI dome. Nominal coverage is 160 degrees conical. JBL rates it at 22.5 W (90 W Peak), Cont. Pink Noise (2 hrs) 15 W (60 W Peak), Cont. Pink Noise (100 hrs). Maximum SPL at 1 m is 98 dB continuous pink noise (104 dB peak). Nominal impedance is 8.

Transformer taps are 70 V: 10 W, 5 W, 2.5 W, 1.2 W & 0.6 W 100 V: 10 W, 5 W, 2.5 W & 1.2 W. Environmental rating: IP rating: IP32 per EN/IEC 60529. Operating temperature: 0 degrees C to 45 degrees C. It measures 114 mm (4.6 in) H x 203 mm (8.1 in) dia. 105 mm (4.2 in) from bottom of ceiling tile to top of backcan.
