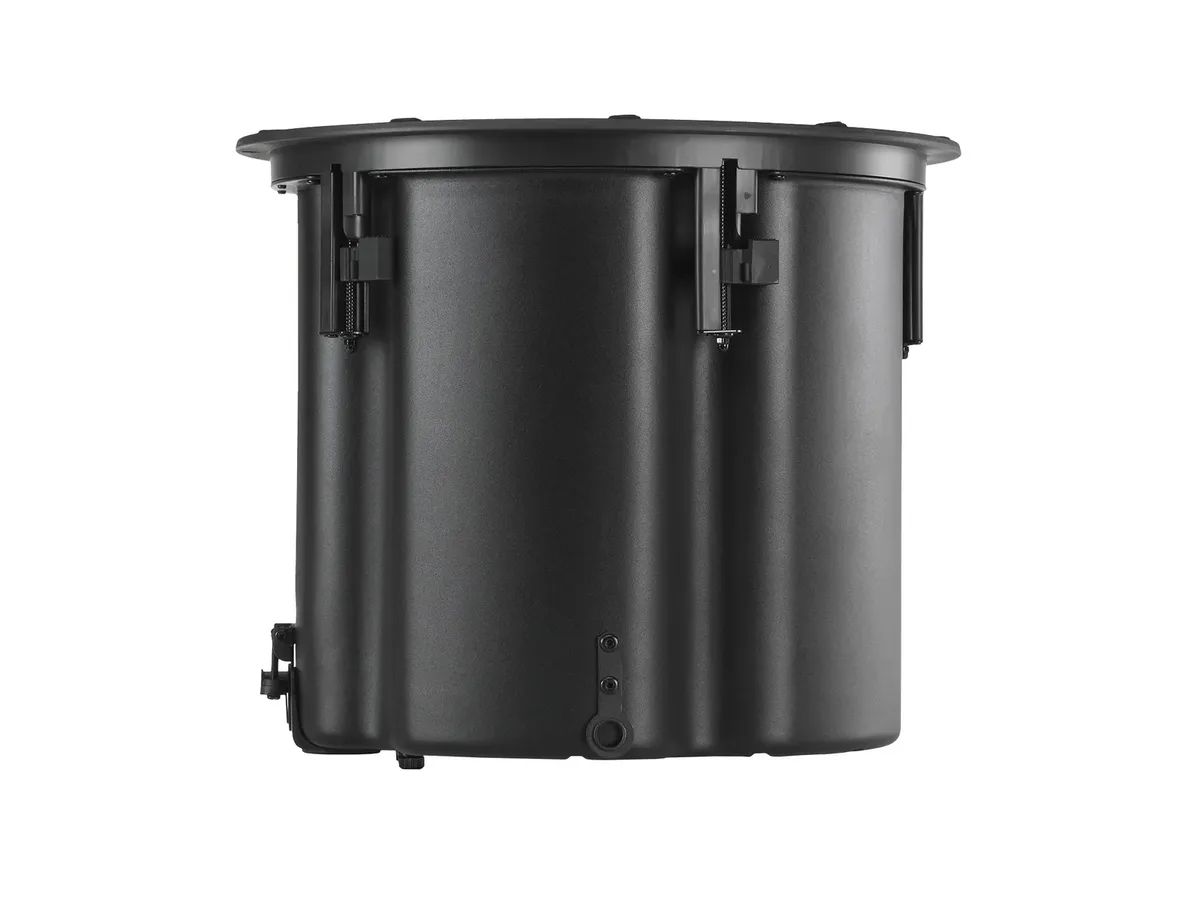

JBL Control 419CS/T 8" Ceiling Subwoofer

The Control 419CS/T is a 8" ceiling subwoofer, from the Control Contractor 400 Series. Transducers are 200 mm (8 in) with treated paper cone and high-performance magnet. Nominal coverage is 180 degrees conical. JBL rates it at 160 W (640 W Peak), Continuous IEC Pink Noise (2 hrs) 80 Watts (320 W Peak) Continuous IEC Pink Noise Power (100 hrs). Maximum SPL at 1 m is 112dB continuous pink noise (118 dB peak). Nominal impedance is 8.

Transformer taps are 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W. Environmental rating: IP33 rating per EN/IEC 60529. Operating temperature 0 degrees C to 45 degrees C. It measures 289 mm (11.4 in) H x 346 mm (13.6 in) dia. 280 mm (11.0 in) from bottom of ceiling tile to top of backcan.
