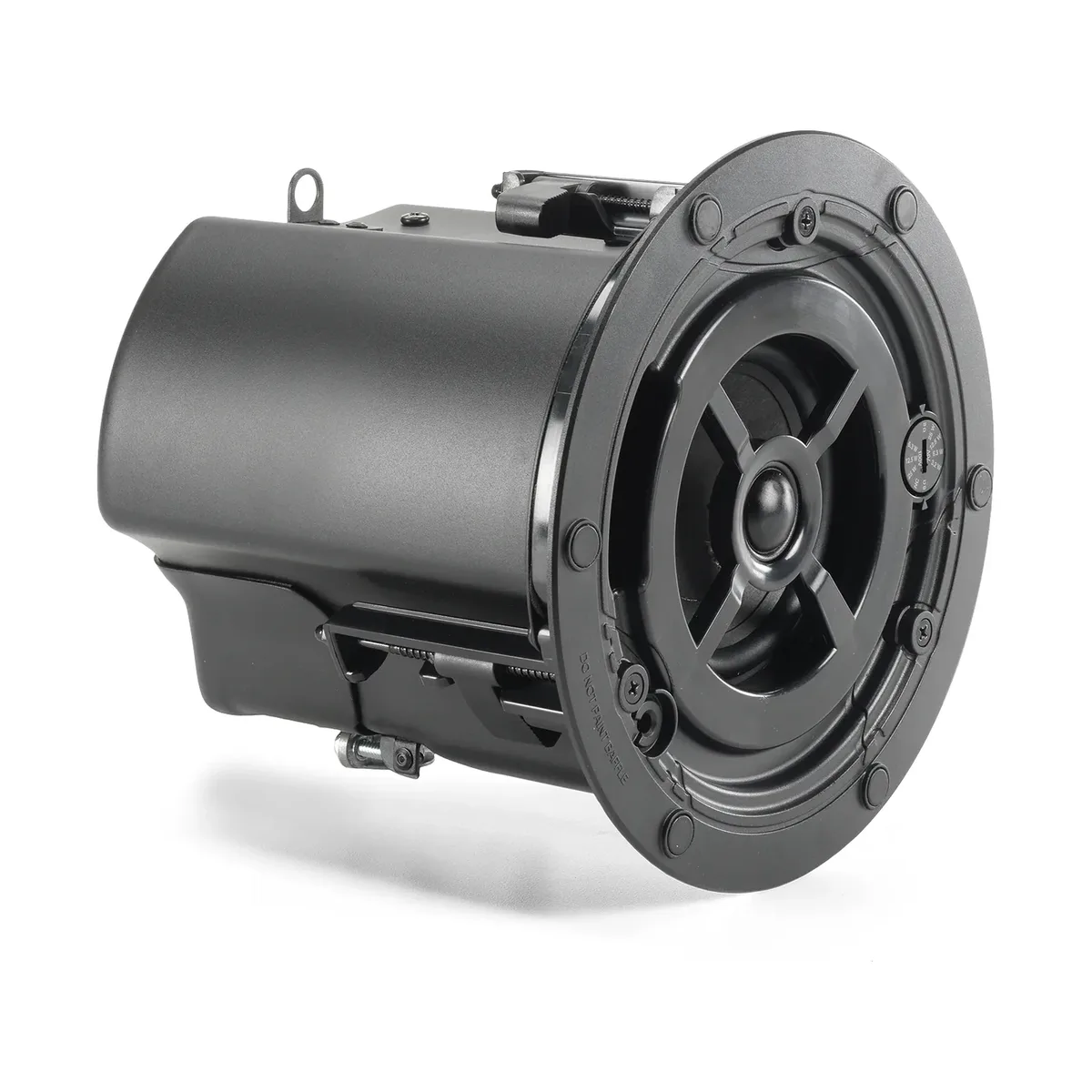

JBL Control 414C/T 4" Two-Way Coaxial Ceiling Loudspeaker

The Control 414C/T is a 4" two-way coaxial ceiling loudspeaker, from the Control Contractor 400 Series. Transducers are LF: 100 mm (4.0 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome. Nominal coverage is 130 degrees conical. JBL rates it at 45W (180W Peak) Cont. Pink Noise (2 hrs) 30W (120W Peak) Cont. Pink Noise (100 hrs). Maximum SPL at 1 m is 103 dB continuous pink noise (109 dB peak). Nominal impedance is 8.

Transformer taps are 70 V: 25 W, 12.5 W, 6.3 W & 3.2 W 100 V: 25 W, 12.5 W, 6.3 W. Environmental rating: IP rating: IP33 per EN/IEC 60529. Operating temperature: 0 degrees C to 45 degrees C. It measures 186 mm (7.4 in) H x 203 mm (8.1 in) dia. 177 mm (7.1 in) from bottom of ceiling tile to top of backcan.

Type	4" Two-Way Coaxial Ceiling Loudspeaker
Frequency Range (-10 dB)	65Hz - 20kHz
Power Capacity	45W (180W Peak) Cont. Pink Noise (2 hrs) 30W (120W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)	86dB
Coverage Angle	130 degrees conical
Maximum SPL (1m)	103 dB continuous pink noise (109 dB peak)
Nominal Impedance	8
Transformer Taps	70 V: 25 W, 12.5 W, 6.3 W & 3.2 W 100 V: 25 W, 12.5 W, 6.3 W
Drivers	LF: 100 mm (4.0 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome
