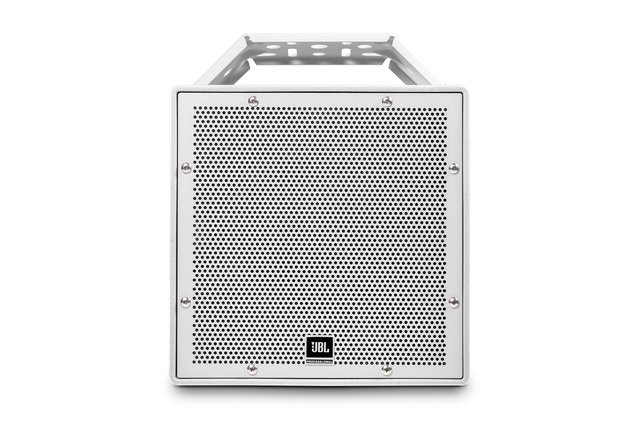

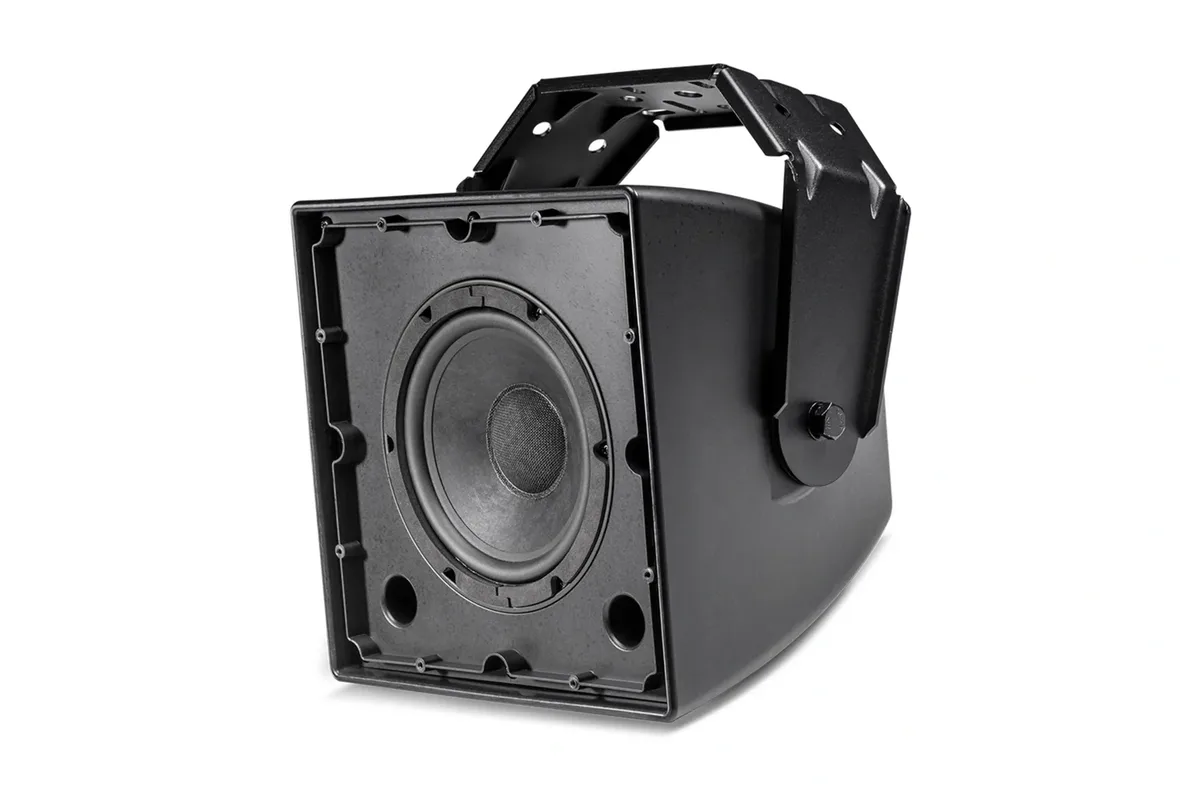

JBL AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF

The AWC62 is an all-weather compact 2-Way coaxial loudspeaker with 6.5" LF, from JBL's all-weather installed range. The low-frequency section uses Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil. High frequencies come from 25 mm (1 in) diaphragm and voice coil diameter. Nominal coverage is 110 degrees x 110 degrees. Frequency range is 70 Hz - 18 kHz. JBL rates it at 175 W 2 hrs. 120 W 100 hrs (IEC rated).

The enclosure is ABS with Glass enclosure. The grille is Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. Transformer taps are 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W. Crossover: Passive. Rigging: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. Environmental rating: IP56 per IEC529, with a minimum 5 degrees downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
