Hiwatt Studio Stage Combo 2x12

Loading the Studio/Stage chassis over a pair of 12-inch Custom Hiwatt Fane F75s gives the widest of the SS20/40 combos, and it is the one to take when the room is bigger than the 1x12 wants to fill.

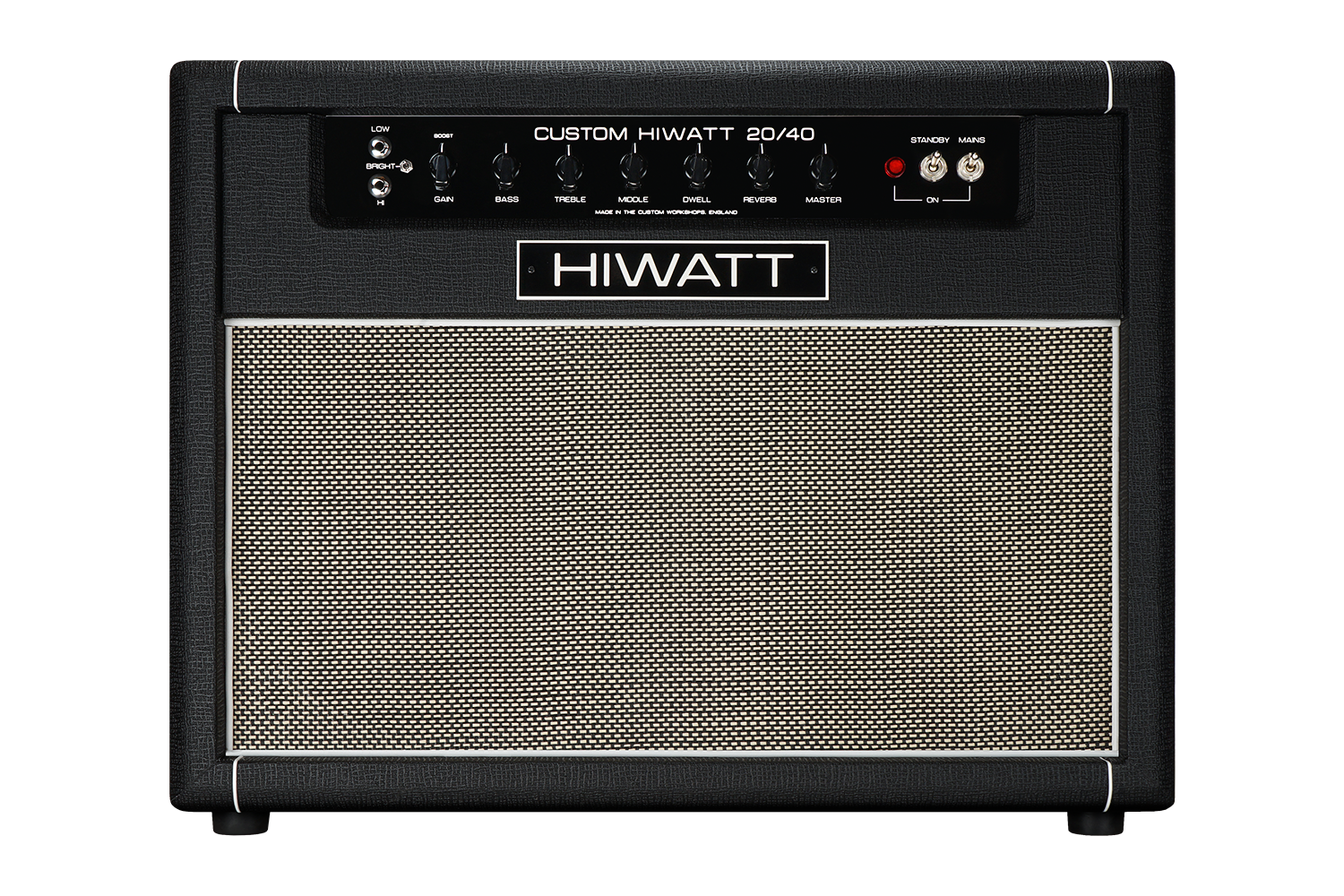

Four EL84s deliver 40 watts in Stage mode, scaling to just over 20 in Studio mode. The front panel starts with high and low impedance inputs for tailoring gain response, adds a Bright switch that works across both, and puts a boost on a push-pull gain pot. Reverb is a real spring tank with its own Dwell and Level controls. Purpleback 150s are available as a speaker upgrade.

Wattage	Switchable - 40W or 20W
Inputs	Hi; Low
Output	2 x 1/4" Speaker Out
Preamp Valves	3 x ECC83 (12AX7), 1 x ECC81 (12AT7)
Output Valves	4 x EL84
Controls	Master Volume; Reverb Level; Reverb Dwell; 3-Band EQ - Bass, Treble, Middle; Gain (Pull Potentiometer for Boost); Bright Switch; Standby - On/Off; Mains - On/Off
Impedance	Switchable using Impedance Selector on the rear panel - 4 Ω, 8 Ω, or 16 Ω
Speakers	2 x Custom Hiwatt Fane F75, 75 W, 12-inch
Optional Speaker Upgrade	Custom Hiwatt Fane Purpleback, 150 W, 12-inch
Reverb	Onboard spring tank with Dwell and Level controls
