ESE ES-562UE Desktop Combo Clock/Timer

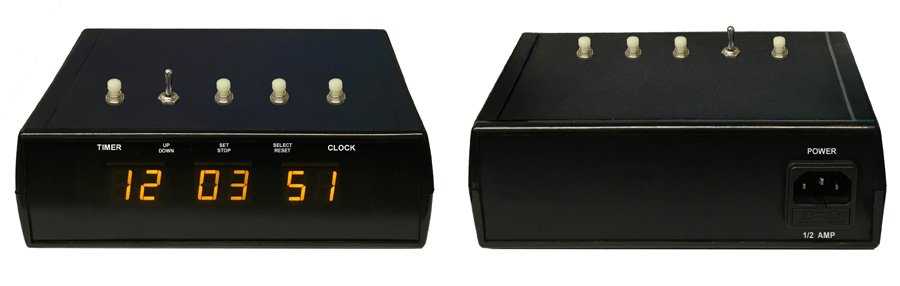

The ES-562UE combines a six-digit time-of-day clock and a 100-hour up/down timer in one desktop unit, switching its .56 inch yellow LED display and its controls between the two functions while each keeps its own independent memory. Dual-function Set/Stop and Select/Reset controls sit on top of the case along with Clock/Timer mode selection and a momentary Up/Down toggle for the timer.

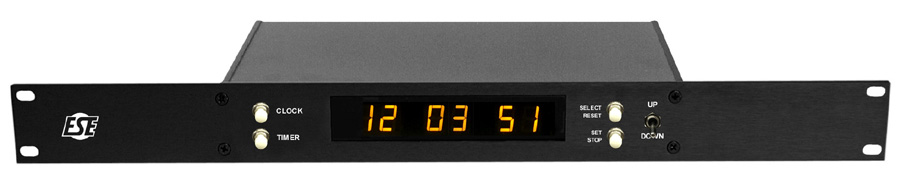

Options extend it into a small timing system: an ESE Time Code output can drive remote displays elsewhere in the facility, a remote control input lets it be triggered externally, and a 1.75 inch rackmount enclosure is available for rack installs. It runs on 110-120 VAC standard, with 220-240 VAC and UL options available.
