ESE ES-366UE 1.0 Inch Remote Timer Display

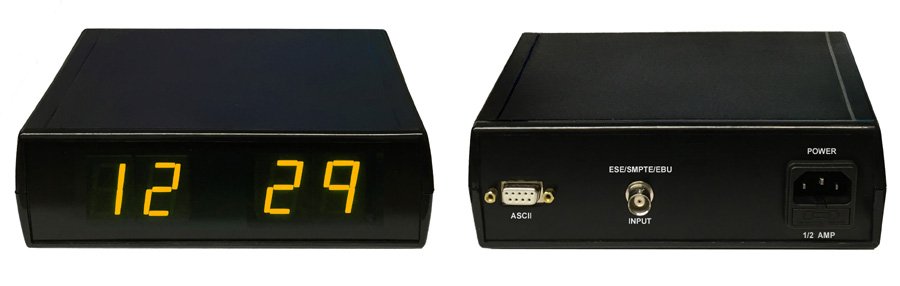

The ES-366UE is a slave display for an ESE timing system. It takes ESE or SMPTE code on a BNC and shows it on four 1.0 in yellow LED digits, legible from 35 ft, so a green room or a hallway sees the same count as the control room.

It is a desk top enclosure with nothing to operate: the master timer drives it and it stays in step. Options cover NTP referencing, panel and wall mounting, and alternate finishes.

TypeRemote timer display
Display1.0 in yellow LED
DigitsFour (minutes and seconds)
Viewing Distance35 feet
InputESE or SMPTE code on BNC
EnclosureDesk top, 5.5 in H x 10.4 in W x 6.6 in D
Power5 Watts, 117 VAC 50/60 Hz
