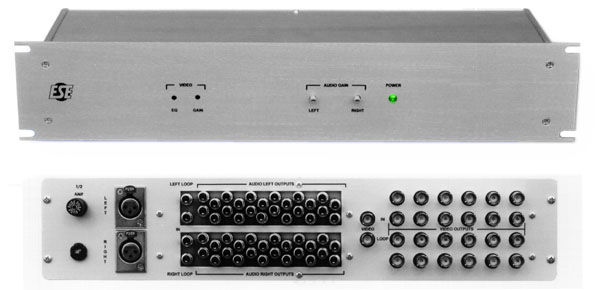

ESE ES224 Video/Audio Distribution Amplifier

The ES-224 is a 1x24 distribution amplifier that fans a single video source and a stereo audio pair out to twenty-four isolated destinations. A loop-thru video input on two BNC connectors feeds 24 BNC video outputs, while each audio channel accepts both unbalanced RCA and balanced XLR inputs and provides an RCA active loop output plus 24 RCA DA outputs.

Everything lives in a rack-mounted cabinet that stands 3.5 inches high, giving a facility large-scale video and audio distribution from a single chassis. It suits master control, teleport, and post rooms that need to send one feed to many monitors and recorders at once.
