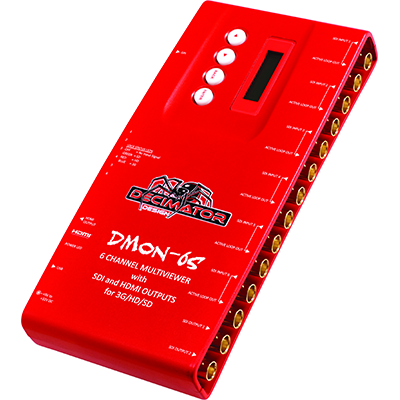

Decimator DMON-6S 6 Channel Multi-Viewer

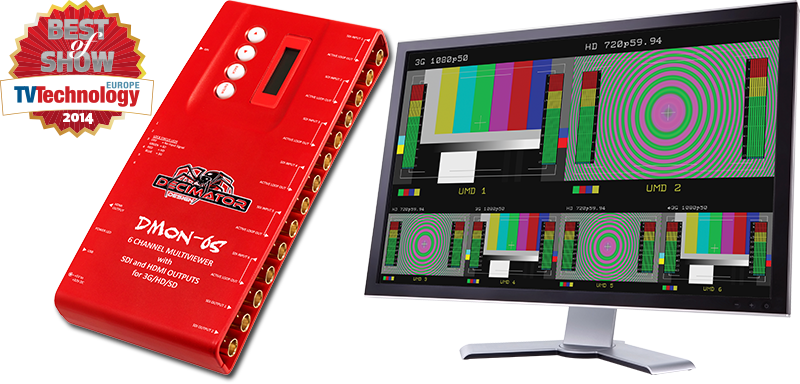

The DMON-6S is a miniature six-input SDI multi-viewer that also works as a 6-to-1 multiplexer. It tiles up to six (3G/HD/SD)-SDI sources onto one screen, and each of its six inputs carries an active loop-through, so you can pass every signal on to other gear without a separate distribution amp. Every window is independent, letting any 3G/HD/SD format at any frame rate share the layout up to 1080p60. A pass-through mode routes a selected input to both the SDI and HDMI outputs.

Video leaves through two (3G/HD/SD)-SDI outputs and an HDMI output, and there are 32 selectable layouts per format with 10 predefined arrangements. Each window supports a 16-character UMD overlay, and a 37-pin D-SUB provides 32 GPI plus RS422/485 for tally display and UMD control. Housed in a robust aluminum box with a metal thread-locking DC socket, it is driven entirely from the front-panel LCD and buttons.
