Decimator MC-DMON-QUAD MultiViewer

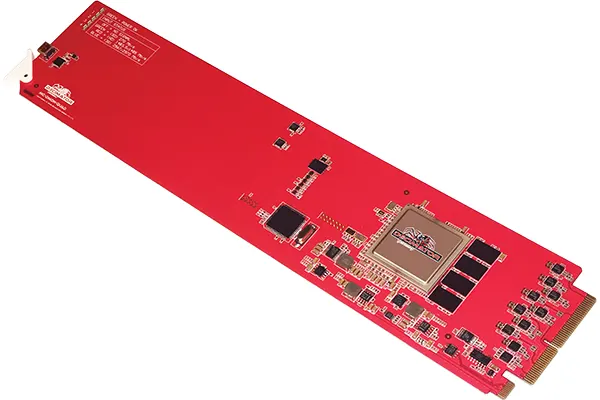

The MC-DMON-QUAD is a four-channel 3G-SDI multi-viewer built as an openGear card for openGear frames. It runs as a 1-to-4 multi-viewer that tiles four SDI sources into a quad-split, or as a 4-to-1 multiplexer. Each quadrant is independent, with low-latency buffering that lets non-synchronous inputs of any 3G/HD/SD format and frame rate be displayed side by side, up to 1080p60 across 29 supported formats and both 3G level A and B.

Each window supports an independently positioned 16-character UMD and an 8-channel audio metering overlay with visual level meters and channel ID tags. The card is controlled through openGear DashBoard software, and dynamic UMD and tallies over RS422/485 using the TSL protocol run through the separately available DR1-10B1G rear, which provides the ten BNC connections and 3-pin serial connector.
