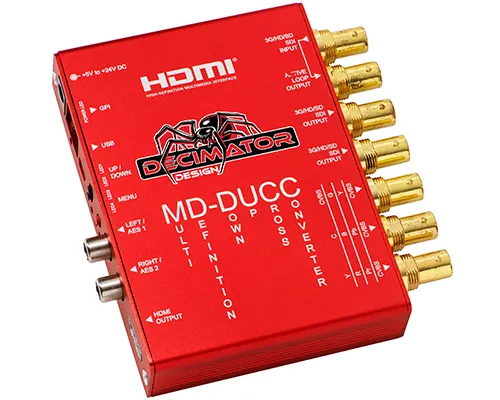

Decimator MD-DUCC Multi-Definition Down Up Cross Converter

The MD-DUCC is a true down, up, and cross converter that takes a single (3G/HD/SD)-SDI input and delivers it as SDI, HDMI, and analog video at once. It auto-detects 3G, HD, or SD across 26 formats and runs a full 10-bit data path with multipoint interpolation and professional motion-adaptive de-interlacing, so it can convert between any supported format with complete 16:9, 14:9, and 4:3 aspect ratio support. It handles 3G level A and B on both the input and output.

Outputs cover SDI, HDMI, and component, composite, and Y/C through three BNC connectors, with two RCA jacks configurable for analog or AES digital audio. Sixteen-channel audio metering lets any of the four embedded SDI audio groups be monitored on-screen. A threaded locking power connector, onboard configuration buttons and LEDs, and a USB port for firmware updates and computer control round out a compact converter suited to location or studio use.
