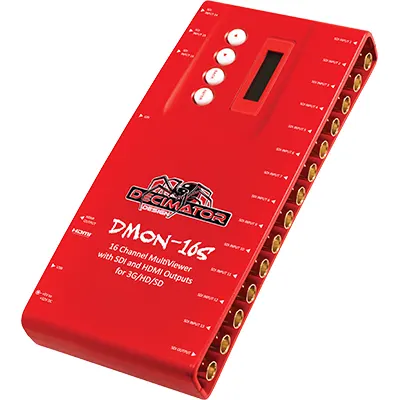

Decimator DMON-16S 16 Channel Multi-Viewer

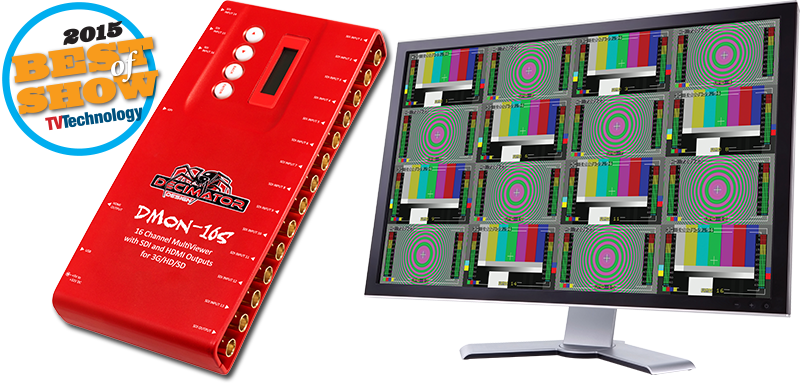

The DMON-16S brings sixteen SDI sources onto a single display in a compact box. It runs as a 1-to-16 channel multi-viewer that tiles every input, or as a 16-to-1 multiplexer that passes a selected source to the outputs. All sixteen inputs auto-detect their format across 26 standards, and each window is independent, so mixed 3G/HD/SD formats and frame rates share the same layout up to 1080p60.

Both an HDMI Type A output and a (3G/HD/SD)-SDI output carry the multi-view. Every window supports a 16-character UMD and an 8-channel audio metering overlay, each with individual enables and custom position and size. A 37-pin D-SUB carries 32 GPI for tallies and remote switching plus RS422/485 for dynamic UMD and tallies over TSL, and the front-panel LCD menu handles setup on location or in the studio. It runs on +5V to +32V DC.
