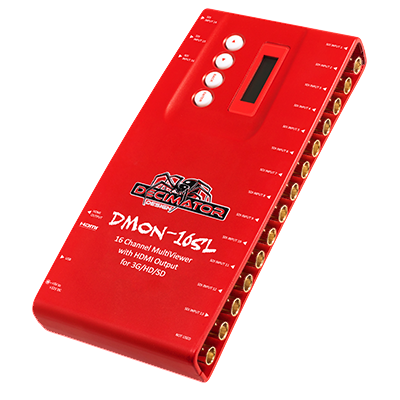

Decimator DMON-16SL 16 Channel Multi-Viewer

The DMON-16SL is the HDMI-only member of the DMON-16 family, built to stream sixteen SDI inputs to a single display for less. It tiles all sixteen sources into a custom multi-view, and a pass-through mode lets you select any one of the sixteen inputs and route it full-screen to the HDMI output. Each input auto-detects across 26 formats, and every window is independent, so any 3G/HD/SD format at any frame rate can share the same layout.

Sixteen (3G/HD/SD)-SDI inputs feed a single HDMI Type A output, with input equalization rated beyond 100 meters on Belden 1694A cable. Every window carries a 16-character UMD overlay with individual enables and custom position and size, and standard and custom layouts can be loaded and restored. The front-panel LCD and buttons drive setup, adjustments can also be made over the included USB cable, and it runs on +5V to +32V DC.
