DAS Audio WR-218S-DXW Passive Subwoofer

The DAS Audio WR-218S-DXW is a passive subwoofer built around a 18-inch 18LX low-frequency driver. It covers 29 Hz - 160 Hz, and it reaches 139 dB peak at one metre.

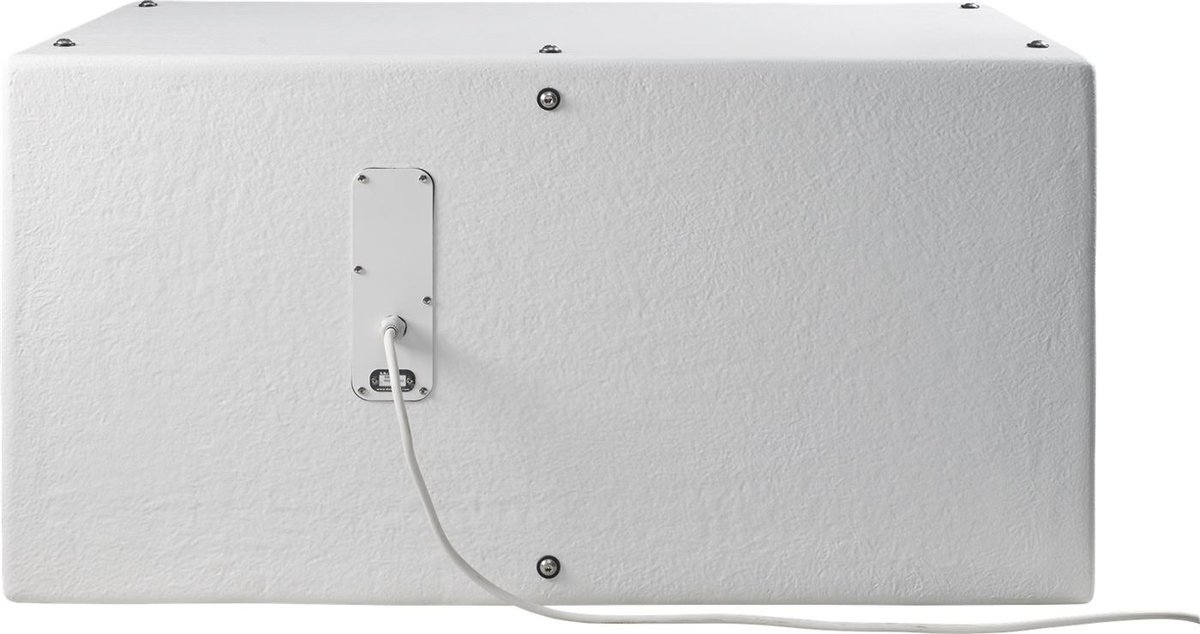

It is a passive box, 4 ohms nominal, handling 2000 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. The enclosure is built in Birch Plywood, finished in Fiberglass. It carries an IP54 rating for outdoor and wash-down sites. Rigging provision: M10 Rigging Points. Net weight is 70.0 kg (154.3 lb).

Frequency Range (-10 dB)	29 Hz - 160 Hz
Nominal Impedance	4 ohms
RMS Power Handling	2000 W
Peak Power Handling	8000 W
On-axis Sensitivity 1W/1 m	99 dB SPL
Maximum Peak SPL at 1 m	139 dB
LF Driver	18LX
IP Rating	IP54
