DAS Audio WR-320-DXW Passive Line Array Module

The DAS Audio WR-320-DXW is a passive line array module built around a 10-inch 10MI low-frequency driver with the M-75N compression driver on a BPS-90AR waveguide. It covers 60 Hz - 18 kHz, and it reaches 132 dB peak at one metre. Nominal horizontal coverage is 90 deg.

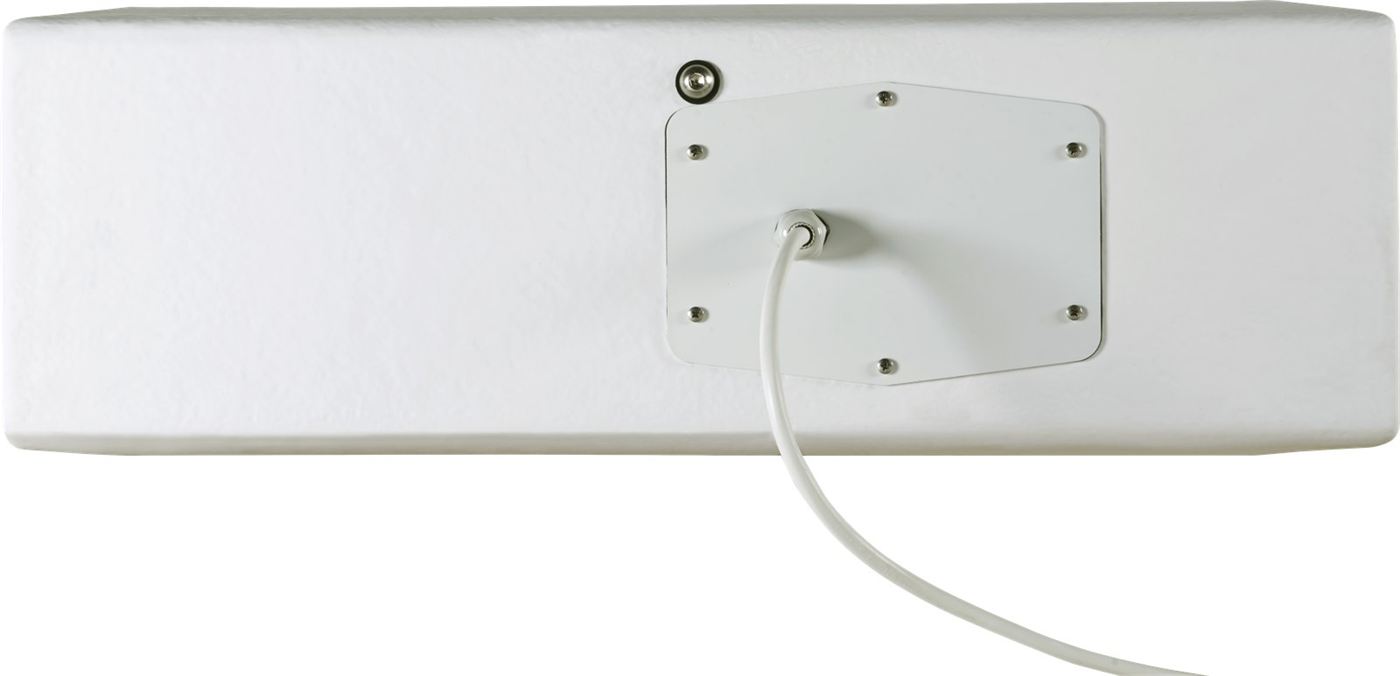

It is a passive box, 16 ohms nominal, handling 500 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. The enclosure is built in Birch Plywood, finished in Fiberglass. It carries an IP55 rating for outdoor and wash-down sites. Rigging provision: Attachable Rigging System. Net weight is 32.5 kg (71.6 lb).

Frequency Range (-10 dB)	60 Hz - 18 kHz
Horizontal Coverage (-6 dB)	90 deg
Vertical Coverage	Splay Dependent
Nominal Impedance	16 ohms
RMS Power Handling	500 W
Peak Power Handling	2000 W
On-axis Sensitivity 1W/1 m	99 dB SPL
Maximum Peak SPL at 1 m	132 dB
