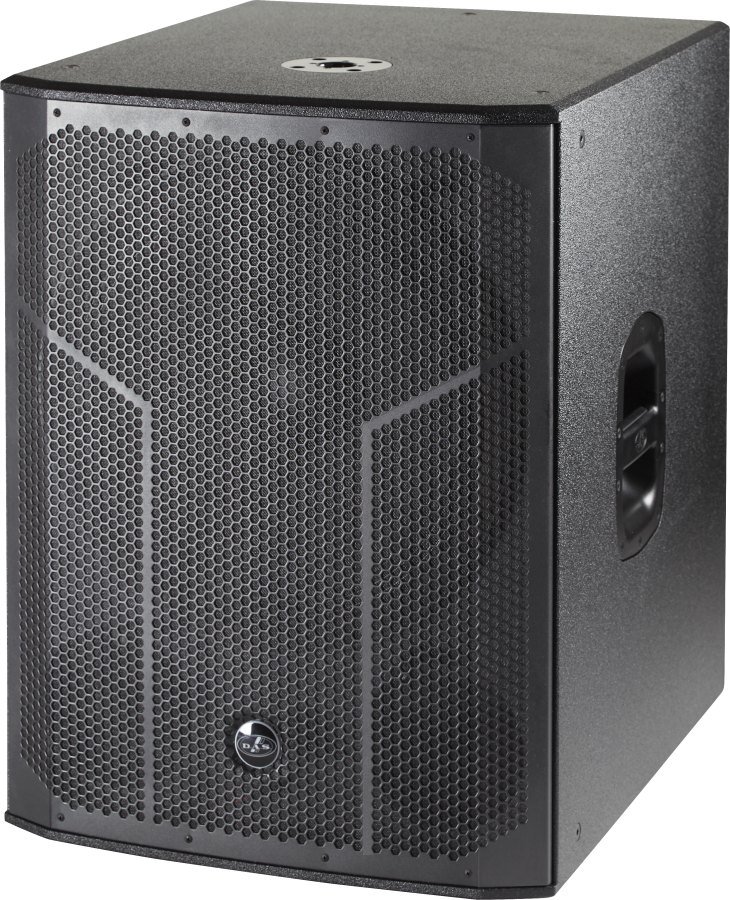

DAS Audio ACTION-S18 Passive Subwoofer

The DAS Audio ACTION-S18 is a passive subwoofer built around the 18FW low-frequency driver. It covers 33 Hz - 160 Hz, and it reaches 133 dB peak at one metre.

It is a passive box, 8 ohms nominal, handling 600 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Net weight is 40.5 kg (89.1 lb).

Frequency Range (-10 dB)	33 Hz - 160 Hz
Nominal Impedance	8 ohms
RMS Power Handling	600 W
Peak Power Handling	2400 W
On-axis Sensitivity 1W/1 m	96 dB SPL
Maximum Peak SPL at 1 m	133 dB
LF Driver	18FW

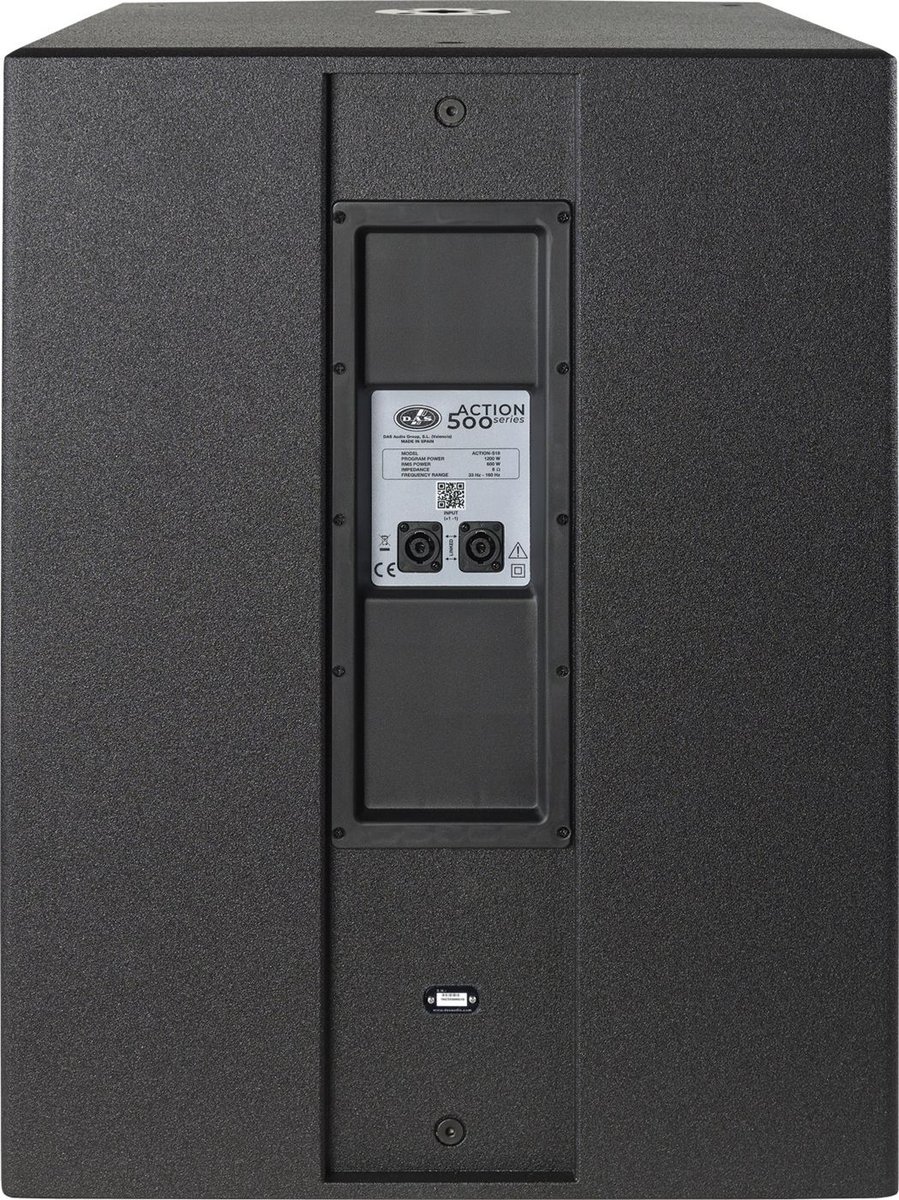

Audio Input Connector	1 x speakON NL4
