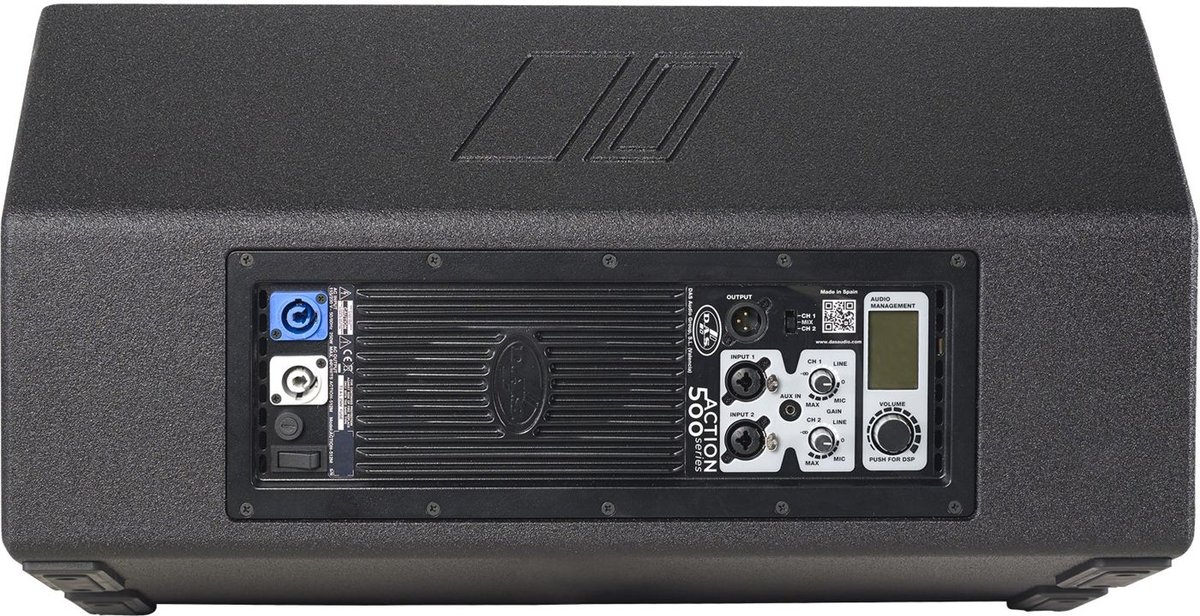

DAS Audio ACTION-M512A Powered Stage Monitor
The DAS Audio ACTION-M512A is a powered stage monitor built around the 12MI4 low-frequency driver with the M-34 compression driver on a BC-85 waveguide. It covers 60 Hz - 20 kHz, and it reaches 130 dB peak at one metre. Nominal coverage is 80 deg horizontal by 50 deg vertical.
Amplification is on board, rated 500 W continuous and 1000 W peak. Signal comes in on 2 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Net weight is 19.5 kg (43.0 lb).
- Inputs2 x Female XLR
- Frequency Range (-10 dB)60 Hz - 20 kHz
- Nominal Amplifier Power (continuous)500 W
- Nominal Amplifier Power (peak)1000 W
- Weight19,5 kg ( 43,0 lb )
| Frequency Range (-10 dB) | 60 Hz - 20 kHz |
|---|---|
| Horizontal Coverage (-6 dB) | 80 deg |
| Vertical Coverage | 50 deg |
| Nominal Amplifier Power (continuous) | 500 W |
| Nominal Amplifier Power (peak) | 1000 W |
| Maximum Peak SPL at 1 M | 130 dB |
| LF Driver | 12MI4 |
| HF Driver | M-34 |
| Dimensions | 335 x 650 x 450 mm 13,2 x 25,6 x 17,7 in |
| Weight | 19,5 kg ( 43,0 lb ) |
| Inputs | 2 x Female |
XLRThe three-pin balanced audio connector used on professional microphones and mixers.
