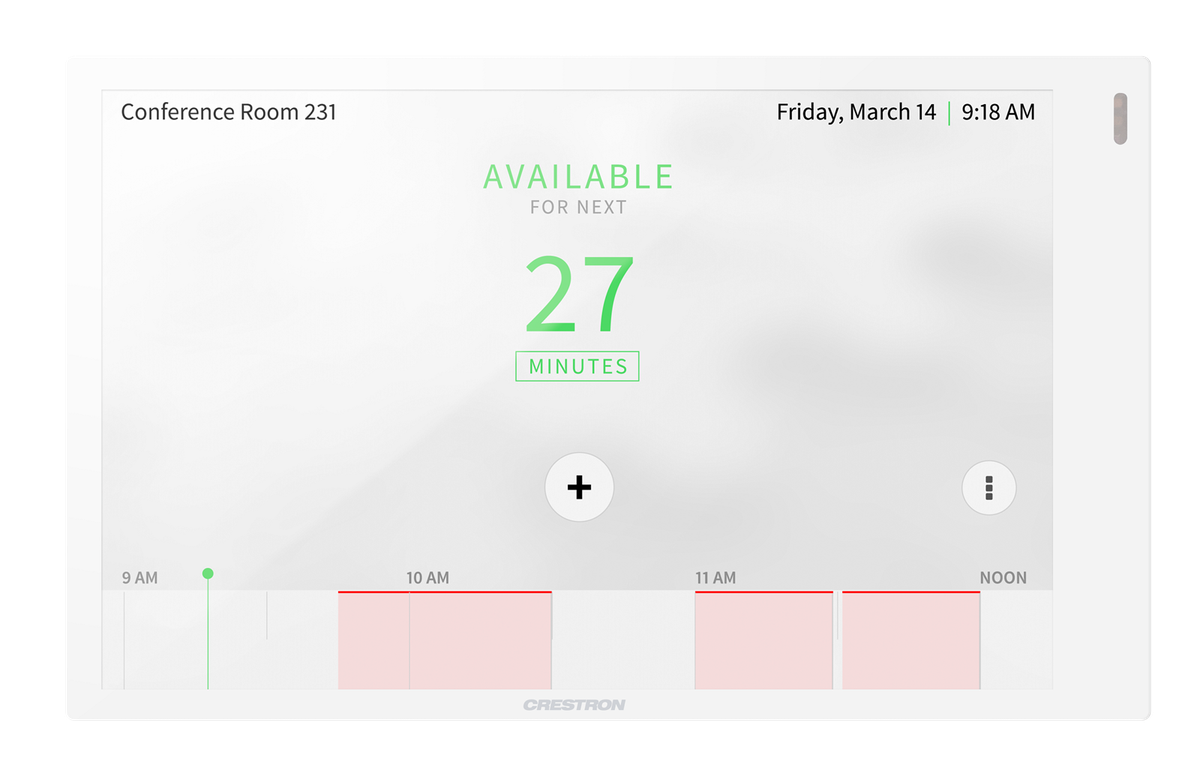

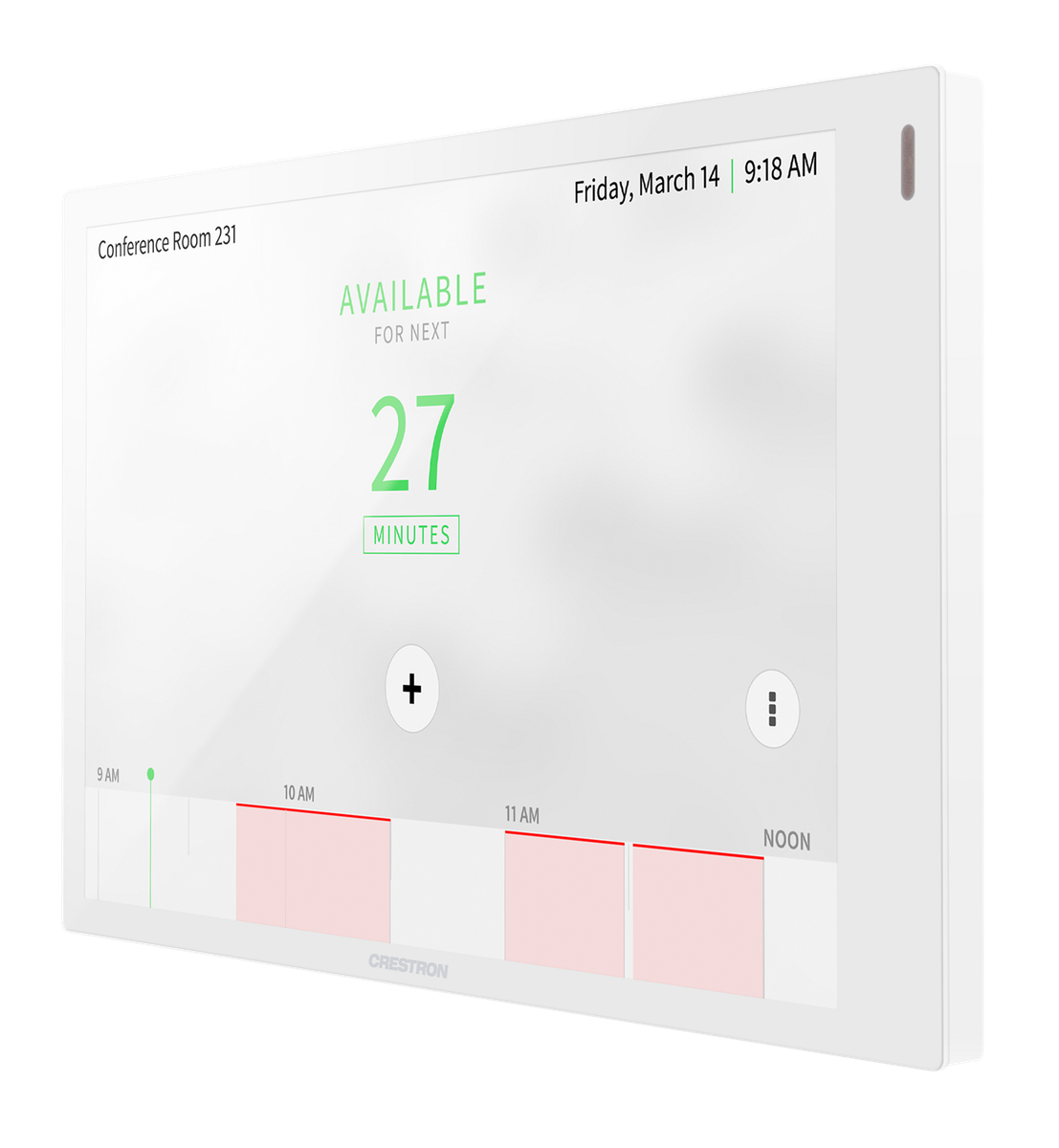

Crestron TSW-770-W-S
The TSW-770-W-S is the white smooth version of Crestron's 7 inch wall mount touch screen, identical in hardware to the black TSW-770-B-S. Its capacitive display runs Crestron HTML5 and Smart Graphics interfaces alongside built-in applications for room scheduling, conferencing, and home control. A built-in microphone and speakers drive the Rava SIP intercom, and H.265 and H.264 streaming video bring a camera or DigitalMedia feed onto the panel.

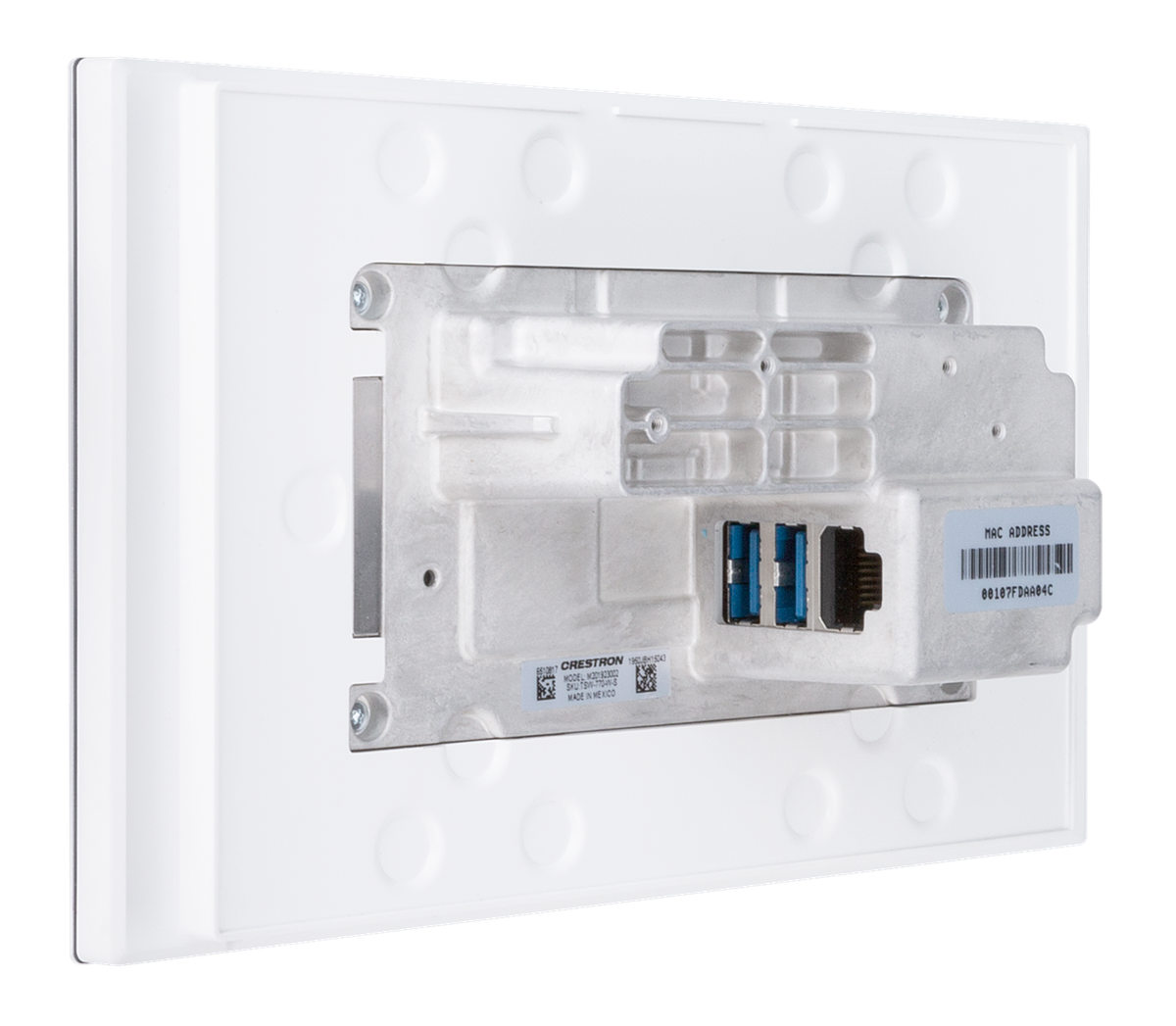

One Ethernet run does the work: PoE+ supplies power, control, and video over a single cable, and both wired and Wi-Fi networking are on board. The screen is compatible with Wall-Smart flush mounting accessories, and the white finish blends into lighter rooms and painted walls.
| Display | 7 in. (178 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1280 x 800 pixels, 16:10 WXGA |
| Brightness | 350 nits |
| Audio | Built-in microphone and speakers, Rava SIP intercom |
| Video | H.265 and H.264 streaming |
| Network | 100BASE-TX Ethernet with PoE+, dual-band 802.11a/b/g/n/ac Wi-Fi |
| USB | 2 USB 2.0 Type-A host ports |
| Dimensions | 4.17 x 6.80 x 1.99 in. (106 x 173 x 51 mm) |
