Crestron TWS-1070-W-S

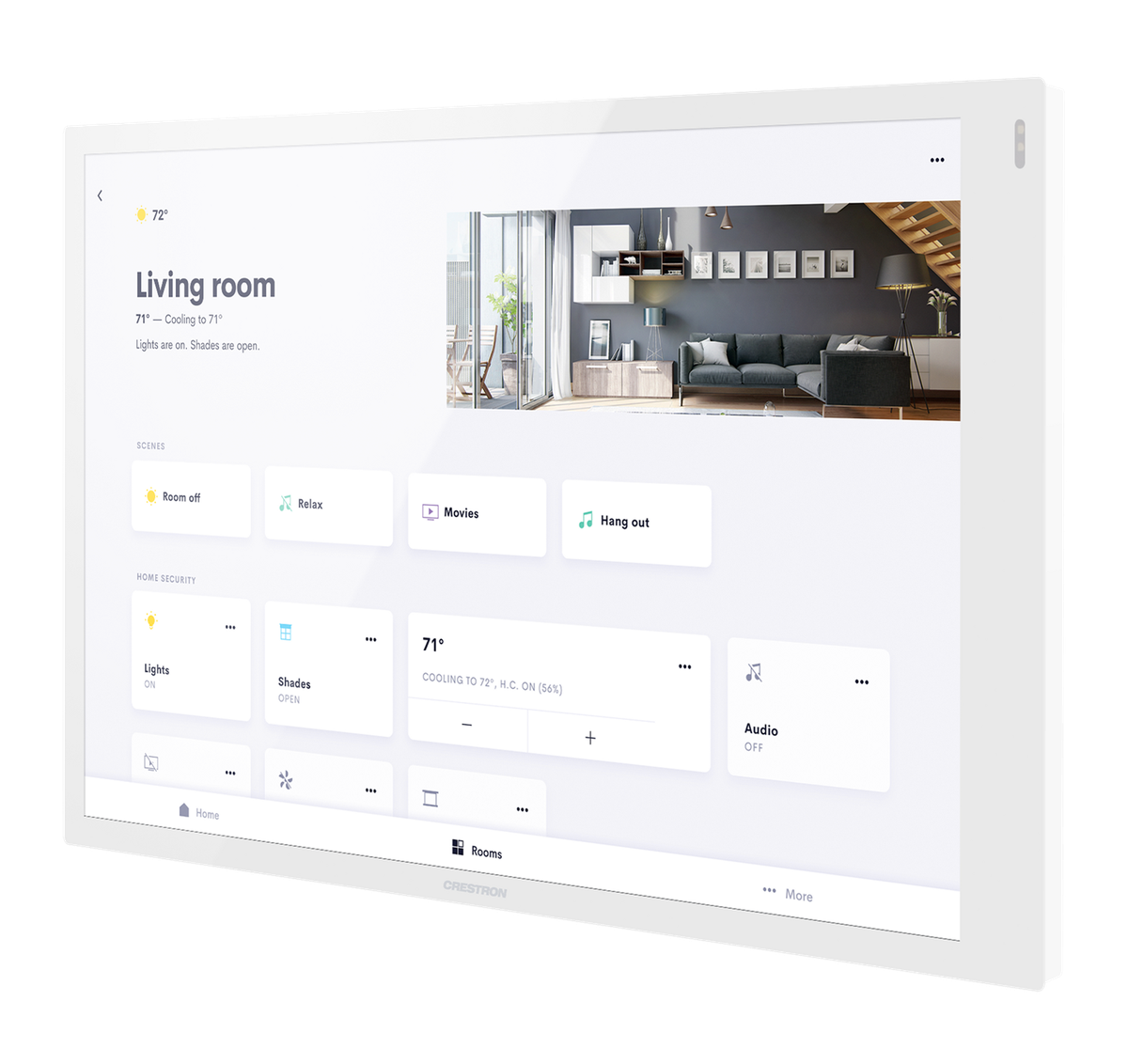

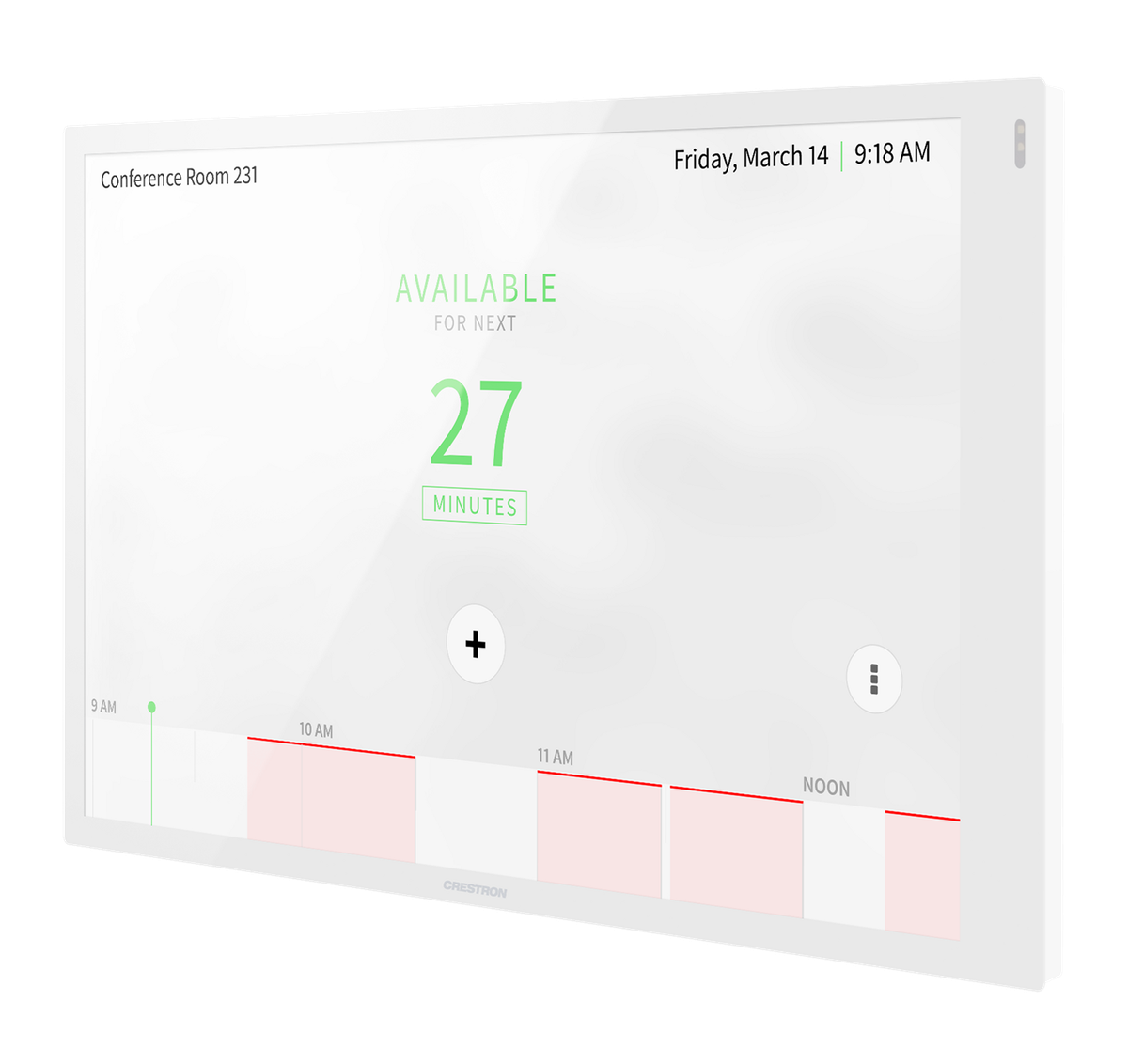

The TSW-1070-W-S is the white smooth version of Crestron's 10.1 inch wall mount touch screen, identical in hardware to the black TSW-1070-B-S. Its high-resolution WUXGA display runs Crestron HTML5 and Smart Graphics interfaces with built-in applications for room scheduling, conferencing, and home control. A built-in microphone and speakers drive the Rava SIP intercom, and H.265 and H.264 streaming video bring a camera or DigitalMedia feed onto the panel.

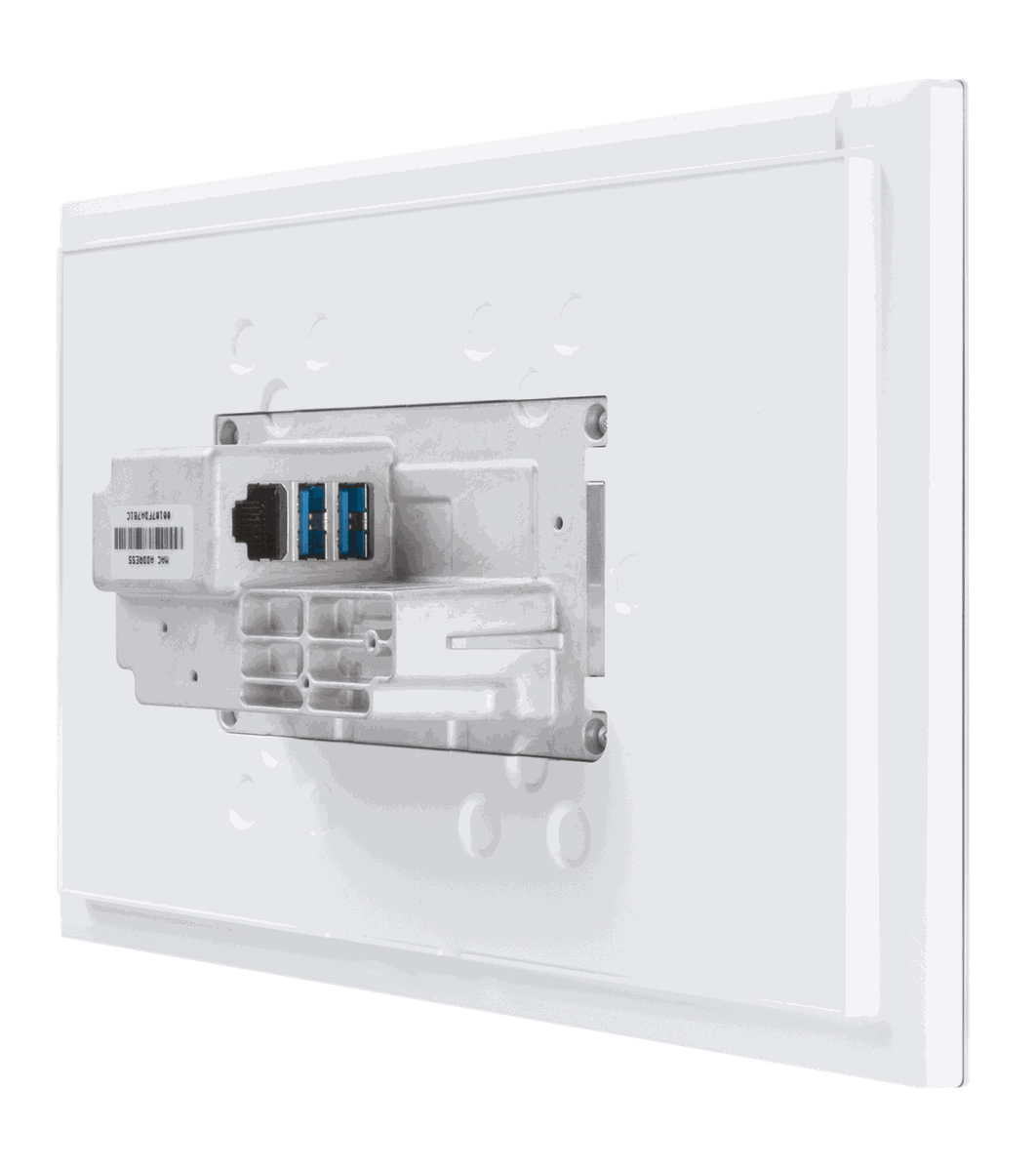

Installation is a single Ethernet run: PoE+ supplies power, control, and video over one cable, with both wired and Wi-Fi networking on board. The screen is compatible with Wall-Smart flush mounting accessories, and the white finish suits lighter rooms and painted walls.
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1200 pixels, 16:10 WUXGA |
| Brightness | 400 nits |
| Audio | Built-in microphone and speakers, Rava SIP intercom |
| Video | H.265 and H.264 streaming |
| Network | 100BASE-TX Ethernet with PoE+, dual-band 802.11a/b/g/n/ac Wi-Fi |
| Dimensions | 5.87 x 9.46 x 2.01 in. (149 x 240 x 51 mm) |
| Weight | 1.61 lb (730 g) |
