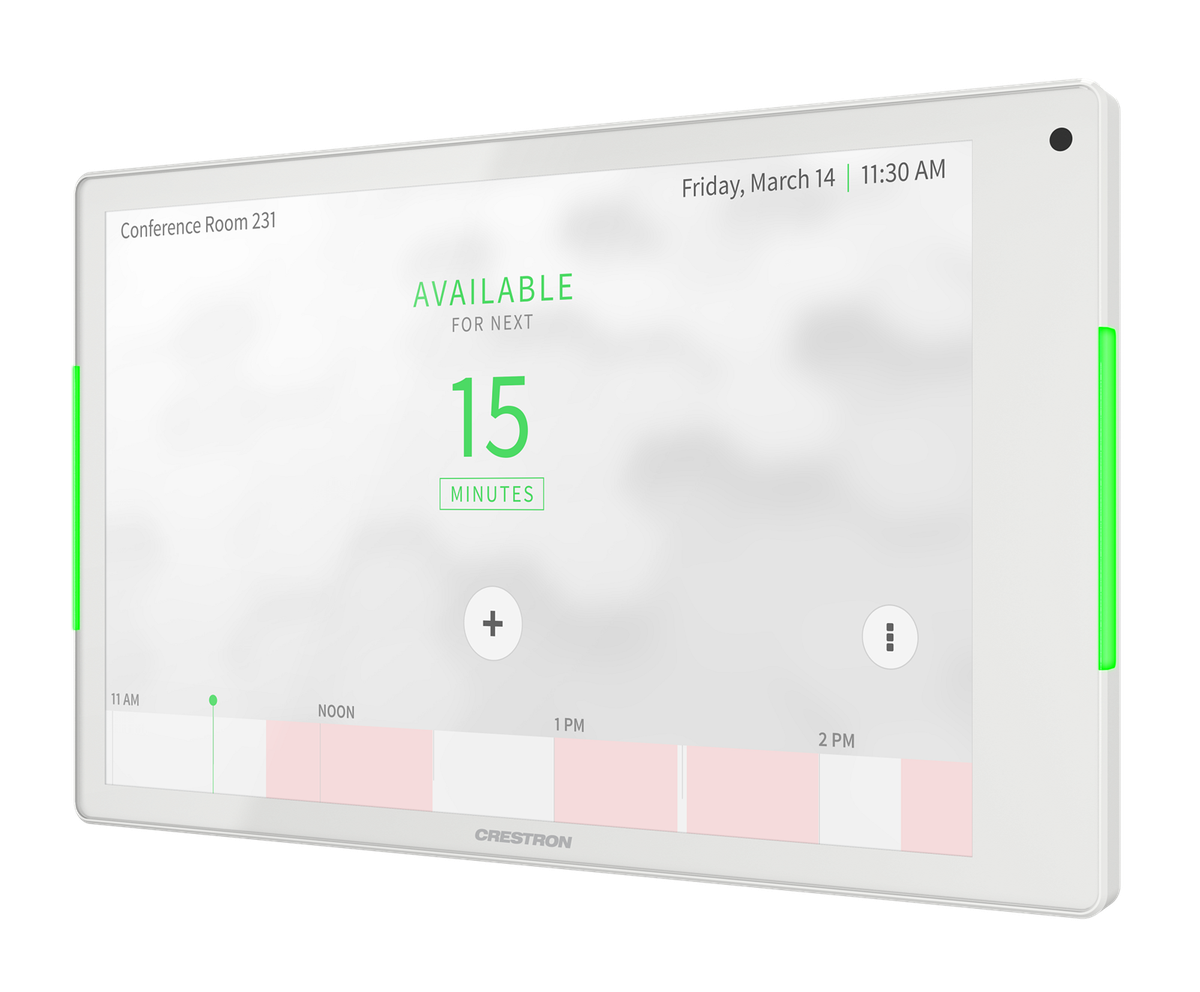

Crestron TSS-880 8.1 in. Room Scheduling Touch Screen

The TSS-880 is the 8.1 in. scheduling panel in Crestron's 80 Series, and the step up from the TSS-70 family is structural rather than cosmetic: a die-cast housing 1.18 in. deep, gigabit Ethernet instead of 100 Mbps, and Wi-Fi 6E 2x2 MIMO across 2.4, 5, and 6 GHz. It mounts outside a meeting room and shows availability, agenda, and one-tap booking.

The 1280 x 800 display is dedicated to scheduling, so there are built-in speakers for touch feedback and alerts but no microphone or intercom. A streaming decoder is still on board for H.265, H.264, and MJPEG. It surface mounts over a 2 or 3 gang US box, a 2 gang European DIN 49073 box, or a 2 gang UK BS 4662 box. The government version, TSS-880-GV-B, is listed here as a variant.

Display	8.1 in. (204 mm) TFT active matrix color LCD
Resolution	1280 x 800 pixels, 16:10
Brightness	350 to 400 nits (cd/m2), 1000:1 contrast
Network	1000 Mbps Ethernet with PoE+, Wi-Fi 6E 802.11a/b/g/n/ac/ax 2x2 MIMO
Video	H.265, H.264 (MPEG-4 part 10 AVC), MJPEG
Audio	Built-in speakers
Housing	Die-cast, smooth black or white finish, glass with matching surround
Mounting	Surface mount over 2 or 3 gang US, 2 gang DIN 49073, or 2 gang BS 4662 box
Dimensions	4.87 in. H x 7.93 in. W x 1.18 in. D (124 x 201 x 30 mm)
