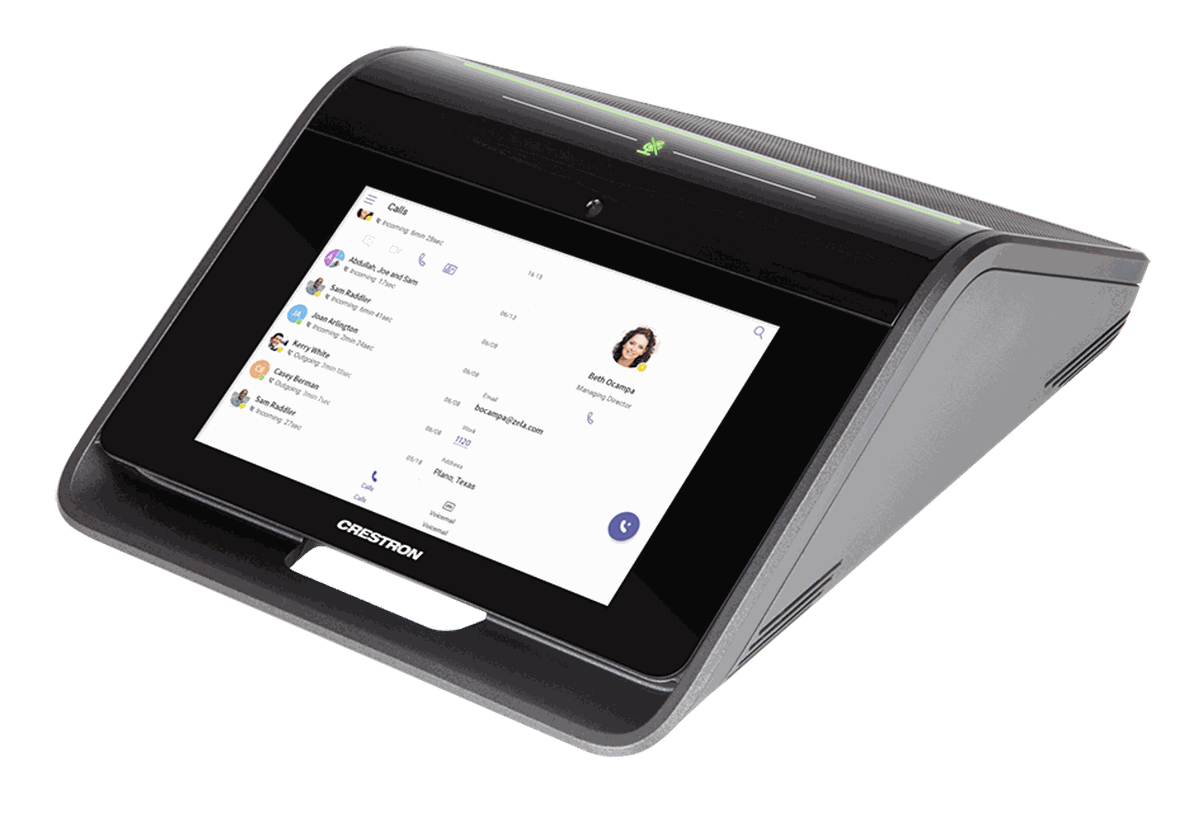

Crestron CCS-UC-1 Tabletop Conference Device
The CCS-UC-1 puts the two things a table actually needs into one enclosure: a full-range speakerphone and the touch screen that runs the meeting. A 360 degree quad microphone array picks up around 20 ft, and an 11 W amplifier and full-range driver reach 95 dB SPL at half a metre across 90 Hz to 22 kHz, which is enough for both far-end voice and programme audio in a small to mid-size room. Echo cancellation is done in the conferencing software on the connected Crestron Collab Compute rather than in the puck.
The 7 in. 1280 x 800 capacitive multitouch screen receives its Microsoft Teams or Zoom Rooms interface straight from the compute, showing the schedule and call controls with no separate configuration step. A capacitive touch bar across the top mutes and unmutes, with a light bar that turns the whole ring red so the state is readable from across the table. Power and data both arrive over one Cat cable from the compute's PoE+ port, and a PW-2420RU 24VDC pack is included for installations that need to power it locally. The Crestron Collab Compute is sold separately.
| Screen | 7 in. (178 mm) capacitive multi-touch TFT active matrix colour LCD, 1280 x 800 |
|---|---|
| Microphones | 360 degree quad mic array, 20 ft (6 m) typical pickup range |
| Speaker | Full range; 11 W rated; 95 dB SPL at 0.5 m; 90 Hz - 22 kHz |
| Ethernet | 100 Mbps, autoswitching, autonegotiating, DHCP, TLS, SSH, SRTP, IEEE 802.1X |
| Power | PoE+ IEEE 802.3at Type 2 Class 4 (25.5 W), or 24VDC via included PW-2420RU pack |
| User Interface | Microsoft Teams or Zoom Rooms, served by the connected Crestron Collab Compute |
| Dimensions | 4.11 in. H x 8.92 in. W x 12.74 in. D (104 x 227 x 324 mm) |
| Weight | 8.38 lb (3.80 kg) |
