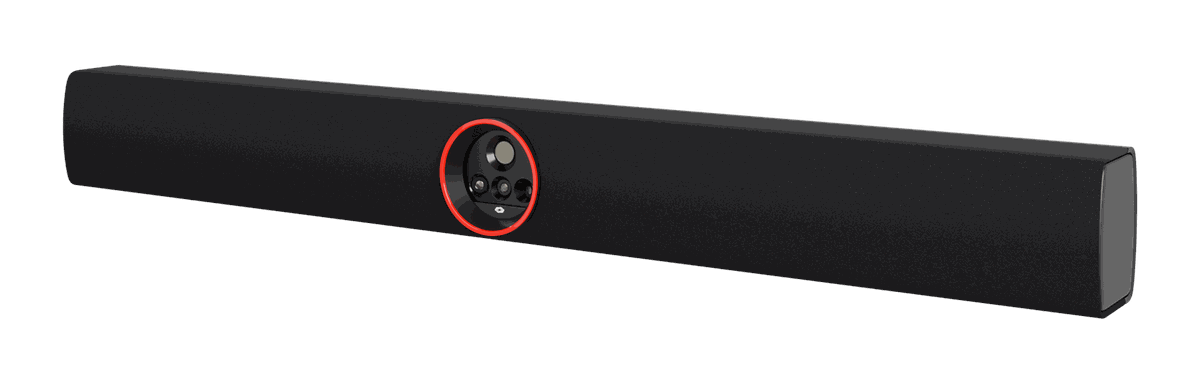

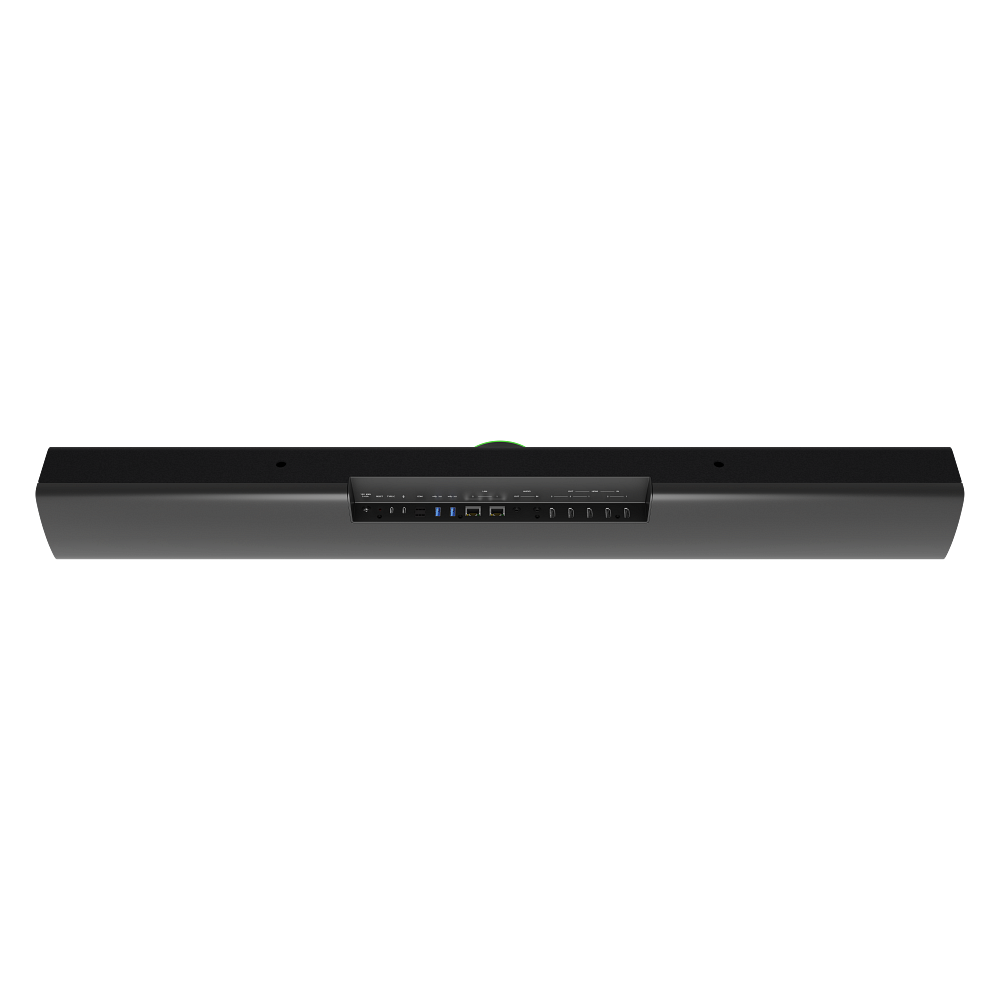

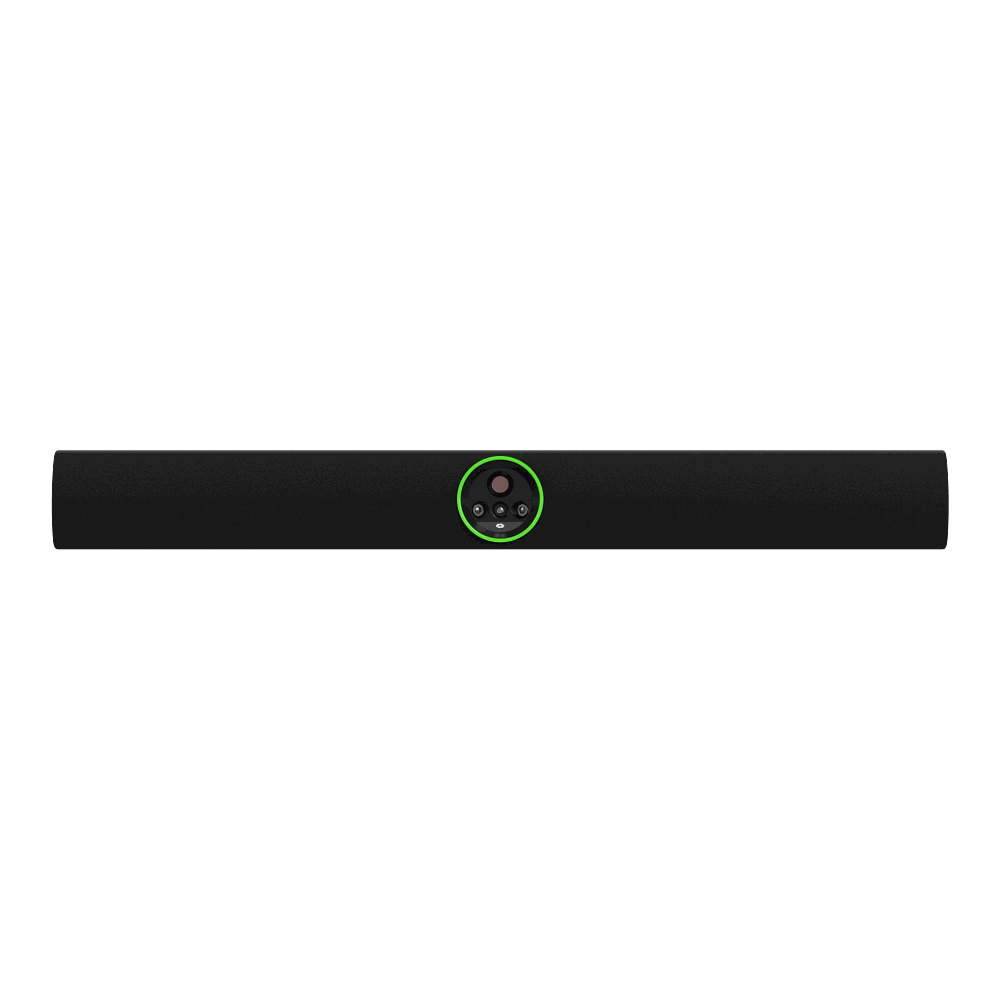

Crestron UC-SB2-CAM-A Videobar 70 All-In-One Conferencing Bar
The Crestron Videobar 70 collapses a medium to large conference room into one device. Its camera system is a quad arrangement: a 20 megapixel 1 in. main sensor at 5472 x 3078 covering 84.3 degrees horizontally, plus left, center, and right sub cameras at 3840 x 2160 with 14 degree overlap, and 7.5x digital zoom behind a mechanical shutter. Audio comes from a 24-microphone linear array reaching 29.5 ft and dual 10 W speakers, with echo cancellation, dereverberation, automatic gain control, adaptive beamforming, and dynamic noise suppression in the DSP.
It runs Android on a QCS8250 and manages through XiO Cloud. Two displays are supported at 4K30 with HDCP 1.4 and 2.2, content arrives on the bar's HDMI input or by direct sharing, and BYOD works over local HDMI and USB-C or through a DM Essentials TXU/RXU pair or AirMedia 3. Order the -T for Microsoft Teams Rooms or the -Z for Zoom Rooms.
| Cameras | (1) 20 megapixel 1 in. main sensor at 5472 x 3078, plus left, center and right sub cameras at 3840 x 2160 |
|---|---|
| Field of View | Main camera 84.3 degrees horizontal, 53.8 degrees vertical |
| Zoom | 7.5x digital zoom, mechanical electronically controlled shutter |
| Microphones | 24 mic linear array, maximum range 29.5 ft (9 m) |
| Speakers | Dual 10 W speakers with AEC, dereverberation, AGC, dynamic noise suppression and adaptive beamforming |
| Processing | Android OS on the QCS8250 chipset |
| Video Output | Up to two displays at 4K30, HDMI, HDCP 1.4 and HDCP 2.2 |
| Connectivity | 100/1000 Mbps Ethernet, dual band Wi-Fi 6 2x2 80 MHz, Bluetooth 5.2 |
| Power | 19 VDC via external 100-240 VAC 50/60 Hz power pack (included) |
