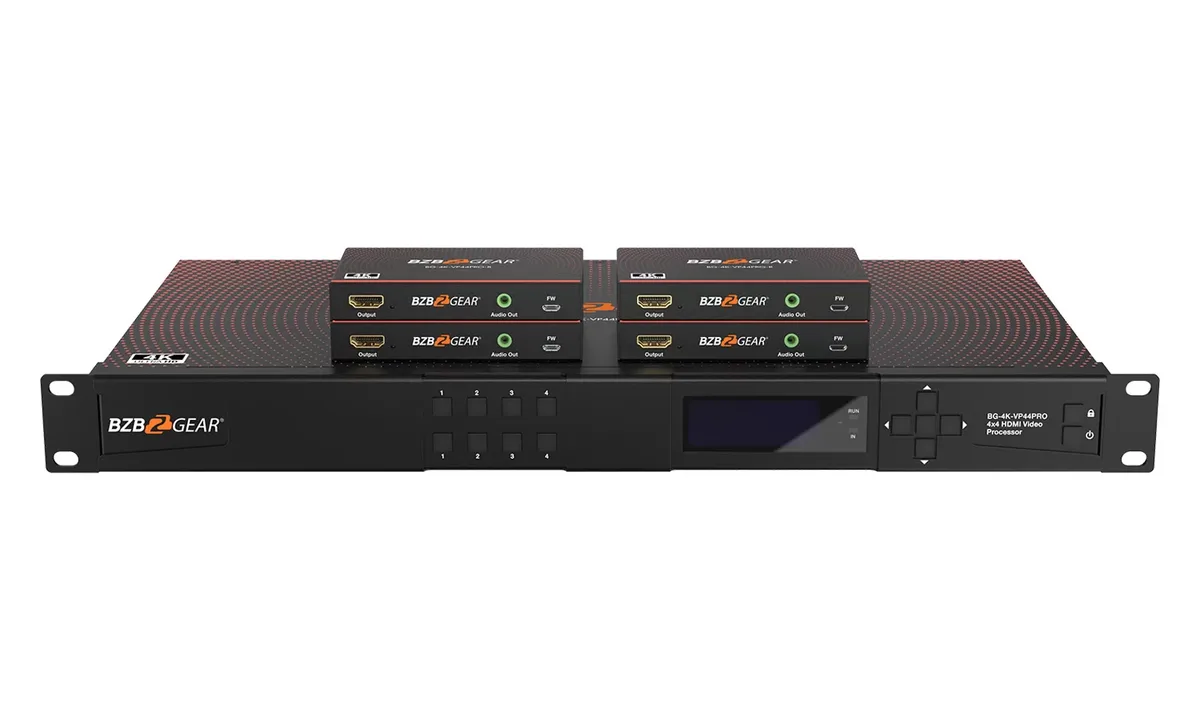

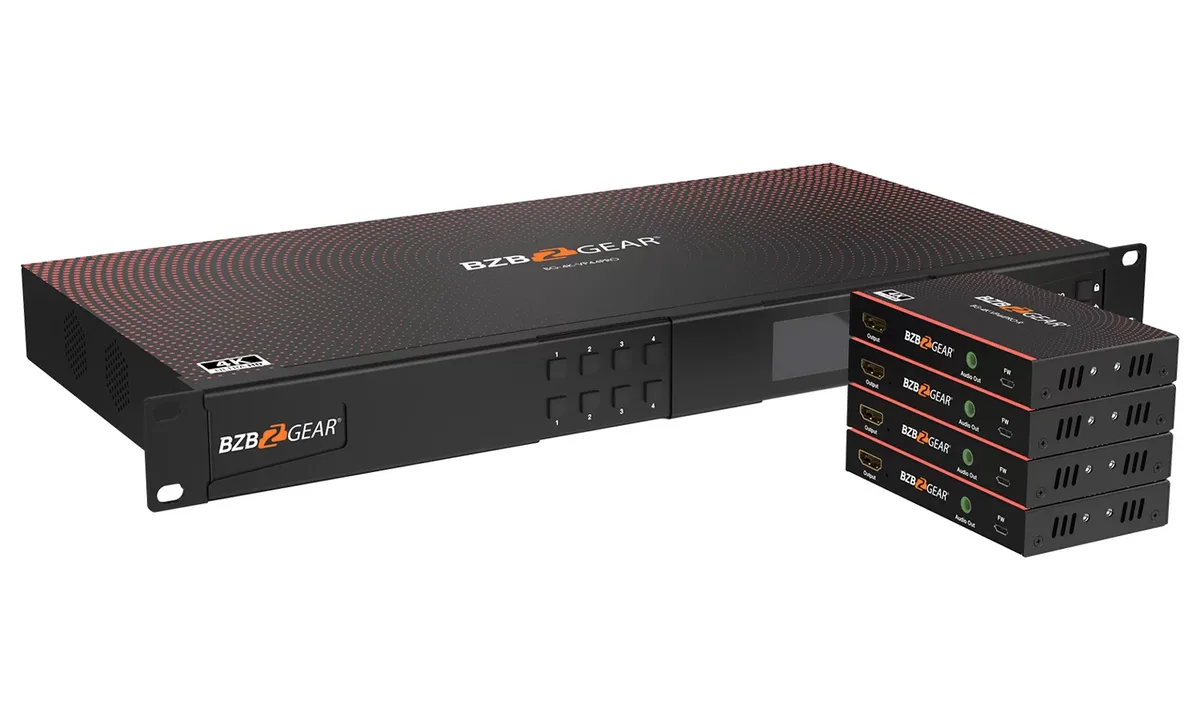

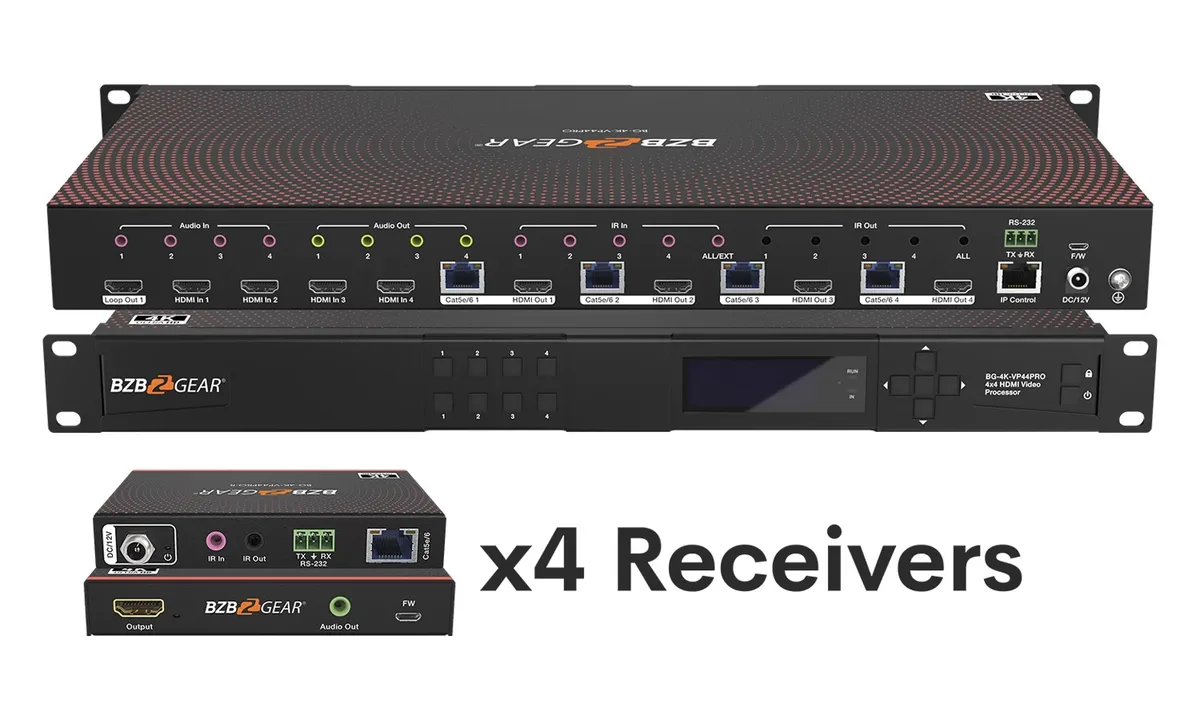

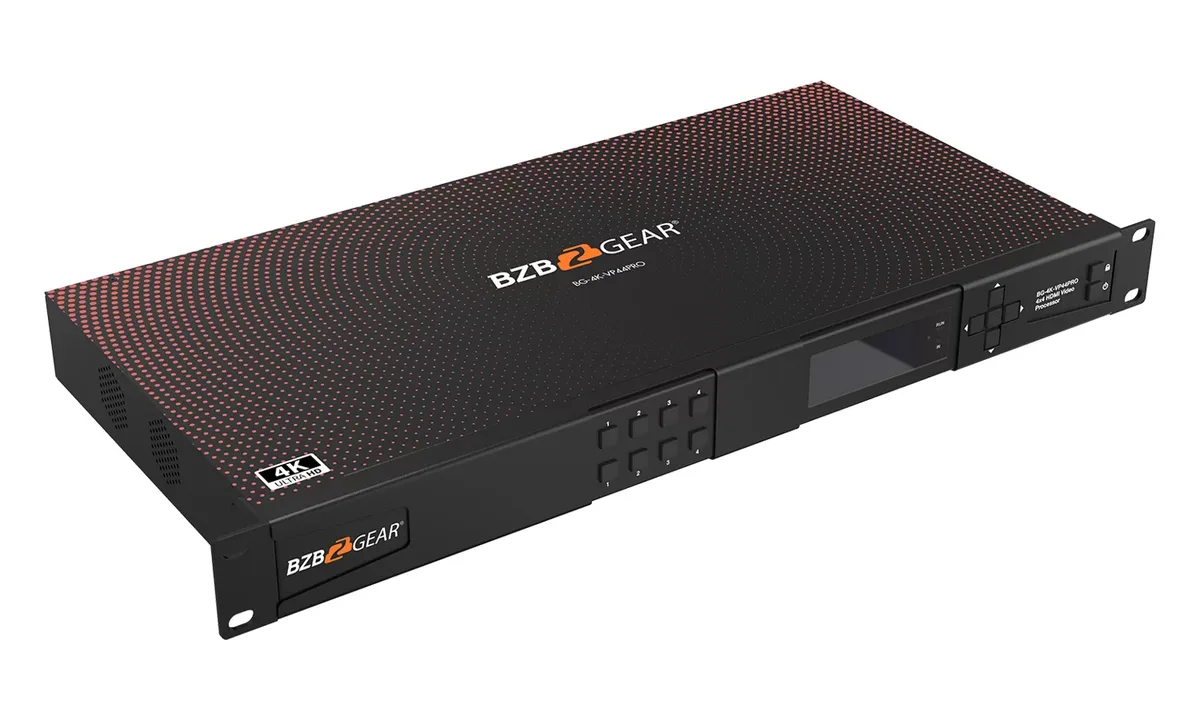

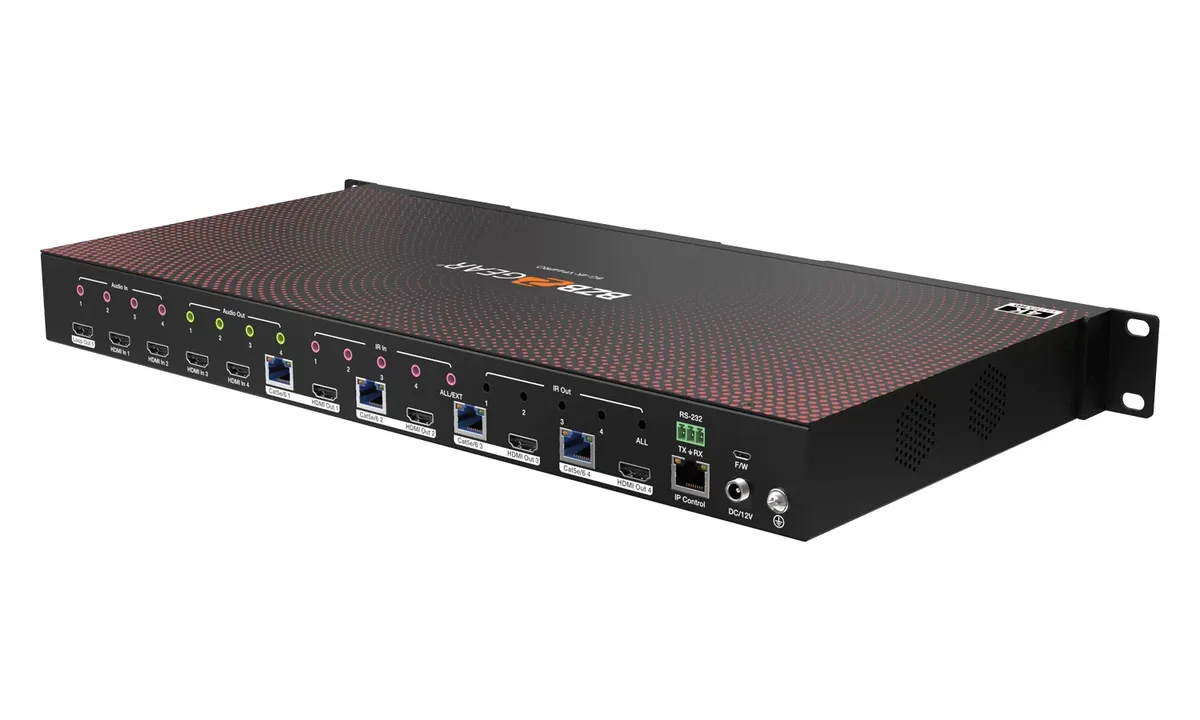

BZBGear BG-4K-VP44PRO 4x4 Seamless Matrix Kit with Four Receivers
The BG-4K-VP44PRO pairs a 4x4 HDMI matrix with four receivers, so the four outputs land on displays up to a room away over Cat5e, Cat6 or Cat7. Each output also has a local HDMI port, and Power over Cable means the receivers take their supply from the matrix.
Beyond straight routing it runs seamless switching, video wall modes and multiview layouts, and it matrixes audio separately from video so a zone can take sound from a different source. Video is 4K60 4:4:4 at 18 Gbit/s with HDCP 2.2 and 1.4, and the unit draws 41W at full load.
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
|---|---|
| Bandwidth | 18Gbit/s |
| Video Format Supported | 4K@60Hz,YUV4:4:4 8bit 4K@30Hz/1080P/1080i/720P |
| Input ports | 4x HDMI Ports |
| Video Input Connectors | 4x HDMI Type A, 19-pin, female |
| Output ports | 4x RJ45 Ports and 4x HDMI Ports |
| Video Output Connectors | 4x RJ45 female and 4x HDMI Type A, 19-pin, female |
| Audio Formats Supported | LPCM 2.0 |
