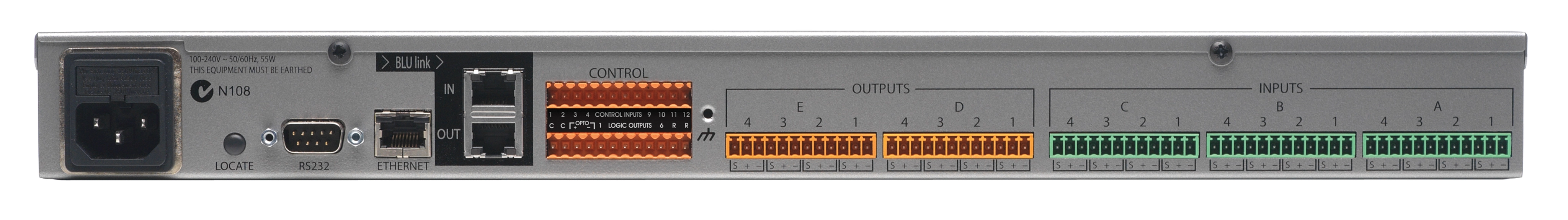

BSS BLU-100 Signal Processor with BLU Link
The BLU-100 packs 12 analog inputs, each with its own switchable 48V phantom power, and 8 analog outputs into a single rack space, running a 400 MHz DSP engine configured through HiQnet Audio Architect's drag-and-drop signal processing and logic objects. Twelve control inputs and six logic outputs bring contact-closure and GPIO integration into the same chassis without external interface hardware.
A 48-channel digital audio bus over standard Category 5e cable, BLU link, joins it to every other Soundweb London device on the network, so a BLU-100 in one room shares audio and control data with processors, amplifiers, and wall panels anywhere else in the building. It is the base signal processor in BSS's London range, sized for a single-room or small-system installation that will grow onto a bigger network later.
- Inputs12 analog, switchable 48V phantom power per channel
- Outputs8 analog
- Logic I/O12 control inputs, 6 logic outputs
- Configuration12x8 networked DSP signal processor
- DSP400 MHz processing, HiQnet Audio Architect configuration
| Configuration | 12x8 networked DSP signal processor |
|---|---|
| Inputs | 12 analog, switchable 48V per channel |
| Outputs | 8 analog |
| DSP | 400 MHz processing, HiQnet Audio Architect configuration |
| Logic I/O | 12 control inputs, 6 logic outputs |
| Networking | BLU link, 48-channel digital audio bus over Cat5e |
| Form Factor | 19 in, single rack space |
