Blackmagic Video Assist 7" 12G HDR Recorders
The Video Assist 7 inch 12G HDR pairs a large field monitor with a professional recorder for any SDI or HDMI camera across HD, Ultra HD, 2K, and 4K DCI formats. The 7 inch 1920 x 1200 touchscreen runs at 2500 nits with a P3 wide color gamut and supports 3D LUTs, HDR display, waveform, parade, vector, and histogram scopes plus focus assist and exposure tools for setting focus, exposure, and framing accurately.
Dual UHS-II SD card slots record 10-bit 4:2:2 Apple ProRes or Avid DNx, or Blackmagic RAW from supported cameras, with USB-C 3.1 Gen 1 for external drive recording. Two balanced mini XLR inputs supply 48V phantom power with a -128dBV noise floor for clean location audio, and micro BNC SDI and HDMI 2.0a both loop through. Power comes from an included 12V supply or two Sony NP-F style L-Series batteries.
| Screen | 7 inch 1920 x 1200, 2500 nits, P3 gamut |
|---|---|
| SDI I/O | 1 x Micro BNC in, 1 x Micro BNC out |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| HDMI | 1 x HDMI 2.0a in, 1 x HDMI 2.0a out |
| Analog Audio | 2 x balanced mini XLR with phantom power |
| Media | Dual UHS-II SD slots, USB-C 3.1 Gen 1 for external drive |
| Codecs | Blackmagic RAW, Apple ProRes, Avid DNxHR |
| Power | External 12V or Sony NP-F style batteries |

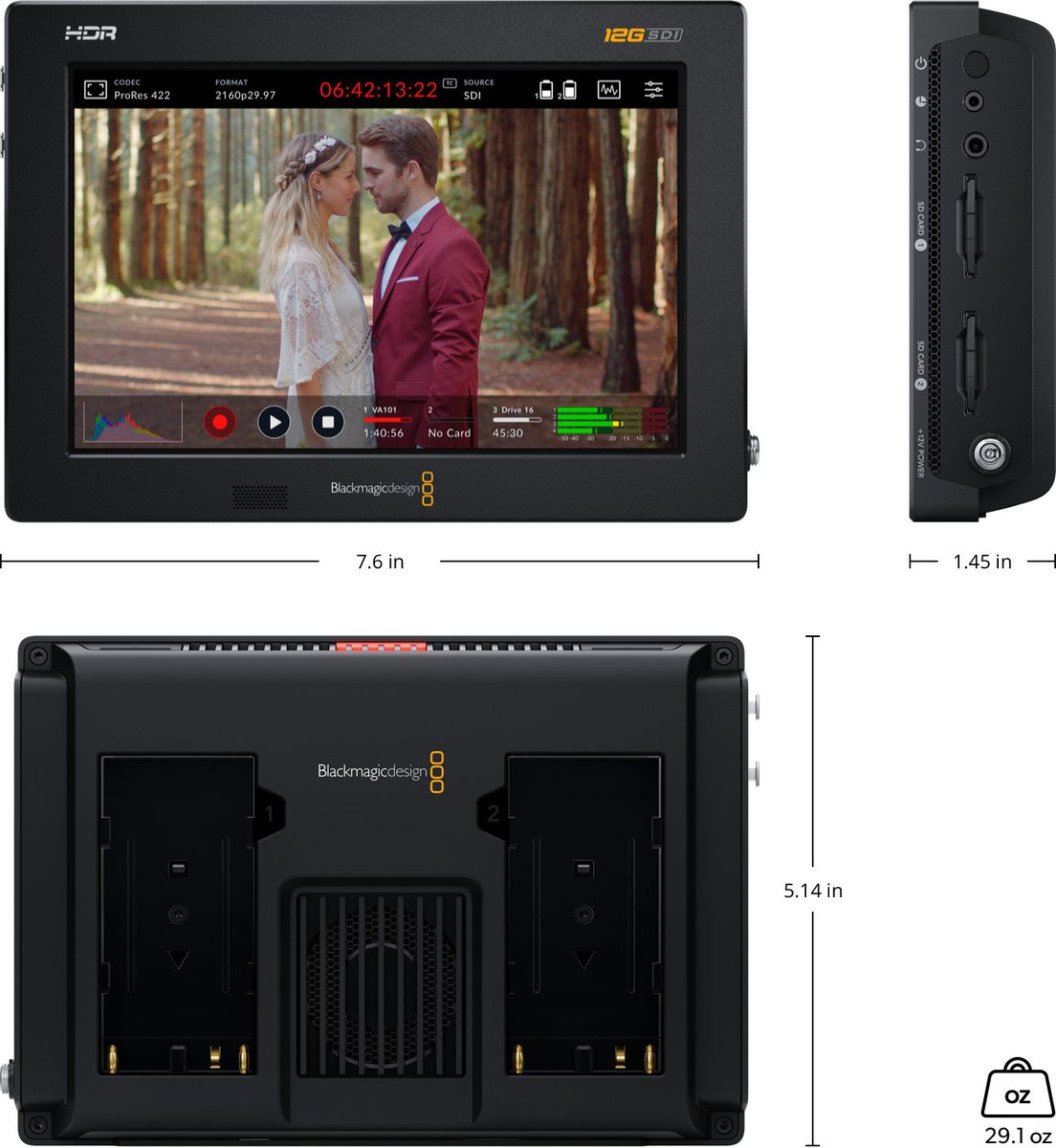

| Weight | 29.1 oz |
| Part Number | BMD-HYPERD/AVIDA12/7HDR |
