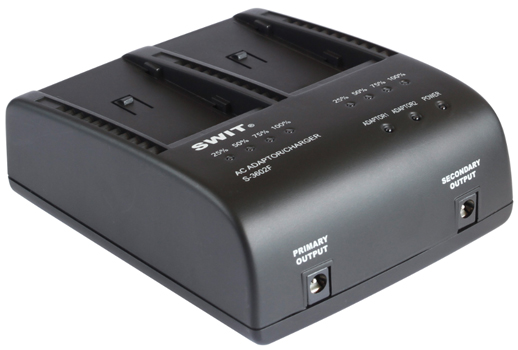

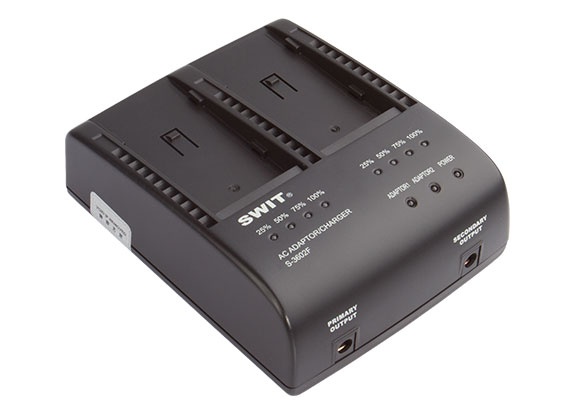

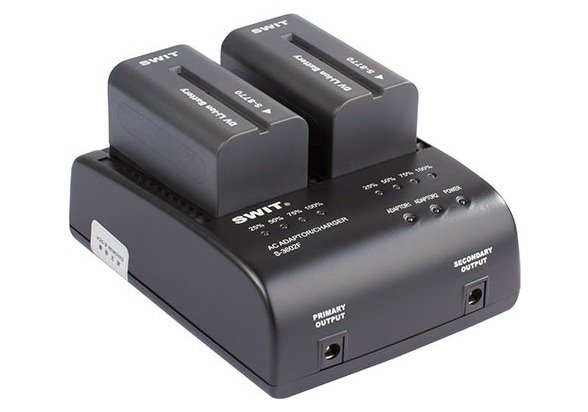

SWIT S-3602F 2-Channel Charger/Adaptor

The SWIT S-3602F is a two-channel charger and DC adaptor made for Sony L-series (NP-F) batteries, the workhorse cells behind on-camera monitors, LED lights, and small camcorders. It charges two packs at once and puts out DC power, so a run-and-gun kit stays fed from a single desktop unit.

Each channel charges at 8.4V and 1.8A with a four-level LED gauge, and two 5.5/2.1mm sockets deliver DC 8.4V at up to 3.5A total to run gear from AC. It charges SWIT's S-8972, S-8970, and S-8770 packs and is compatible with Sony NP-F970/770 L-series batteries.

Type2-channel charger / DC adaptor
ChargesSWIT S-8972 / S-8970 / S-8770 batteries
Battery CompatibilitySony NP-F970 / NP-F770 L-series
Channels2, simultaneous charging
Charging OutputDC 8.4V, 1.8A per channel

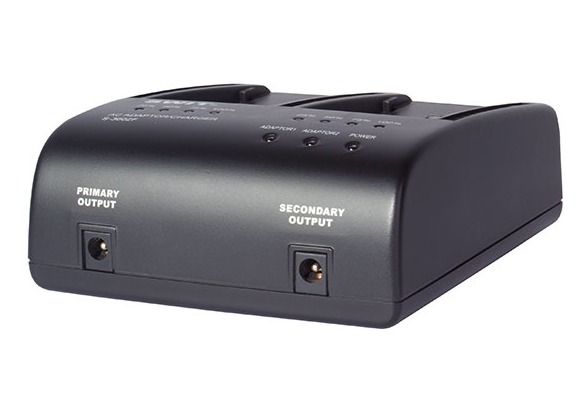

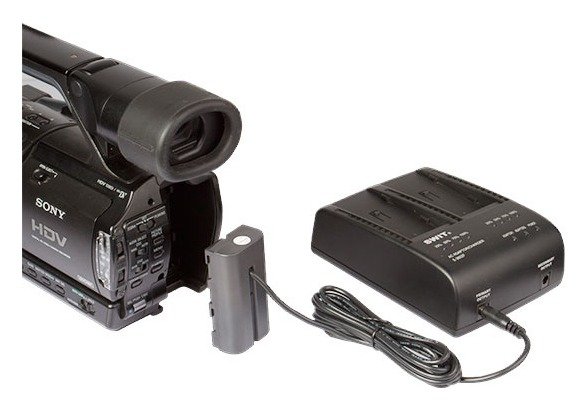

DC Adapting Output2x 5.5/2.1mm sockets, DC 8.4V, 3.5A total
Indicators4-level LED per channel
