Blackmagic Hyperdeck Studio 4K Pro

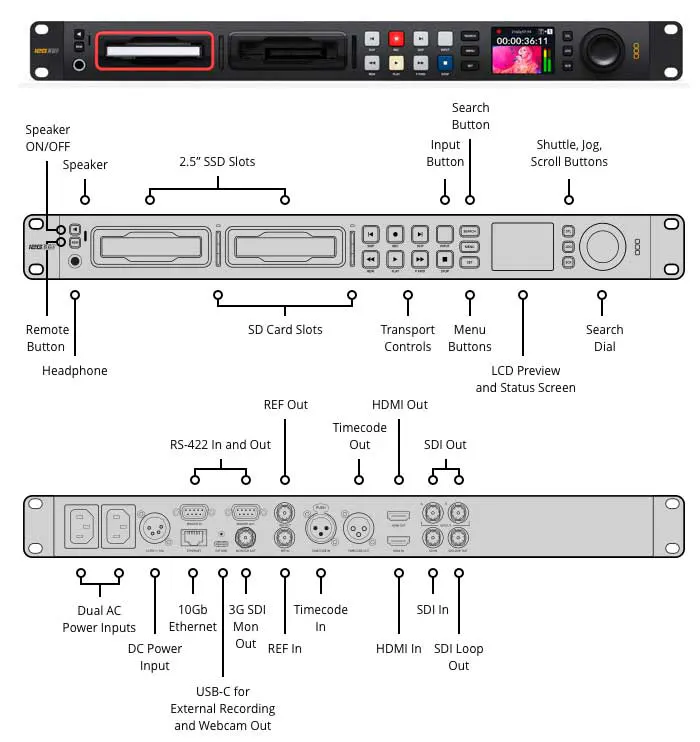

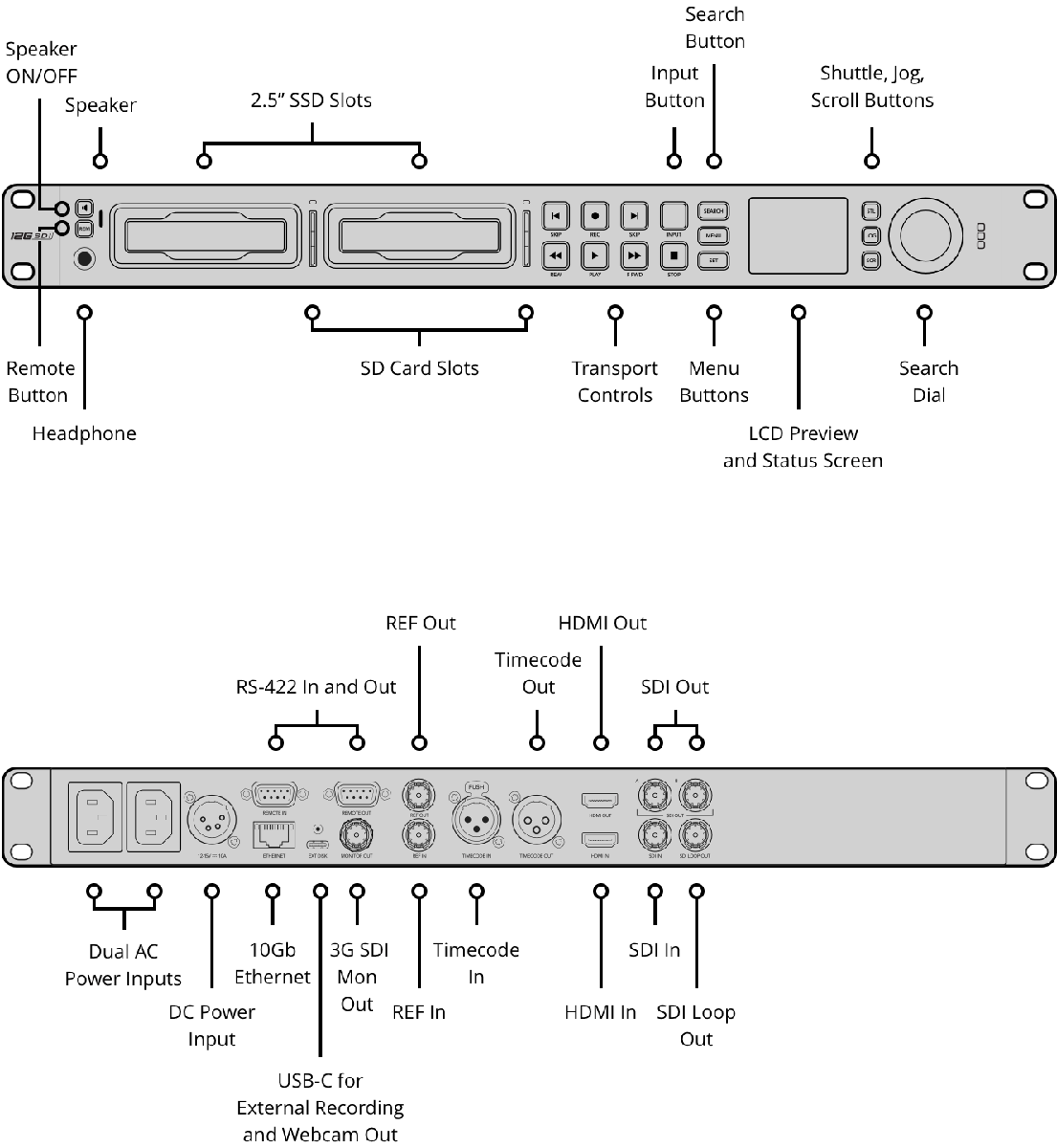

The HyperDeck Studio 4K Pro is the full rack-width deck in the HyperDeck Studio line, recording and playing H.265, H.264, ProRes and DNx files across SD, HD and Ultra HD standards. A single 12G-SDI input and two 12G-SDI outputs carry the video, backed by HDMI input and output, so it drops into a broadcast rack for playback, ingest and program record. Ultra HD is encoded in H.265 and SD/HD in H.264, keeping file sizes manageable for long recordings.

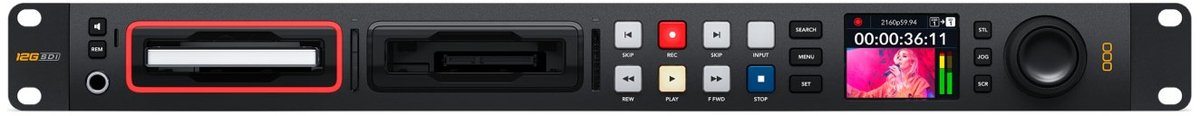

Media is flexible: two 2.5-inch SSD slots sit alongside two SD/UHS-II card slots, letting you mix media types or roll continuously from one to the next. A 2.2-inch LCD shows status and clip thumbnails, and the video path runs 4:2:2 YUV. The chassis is one rack unit high at full rack width, ready for a machine room or an OB truck.
