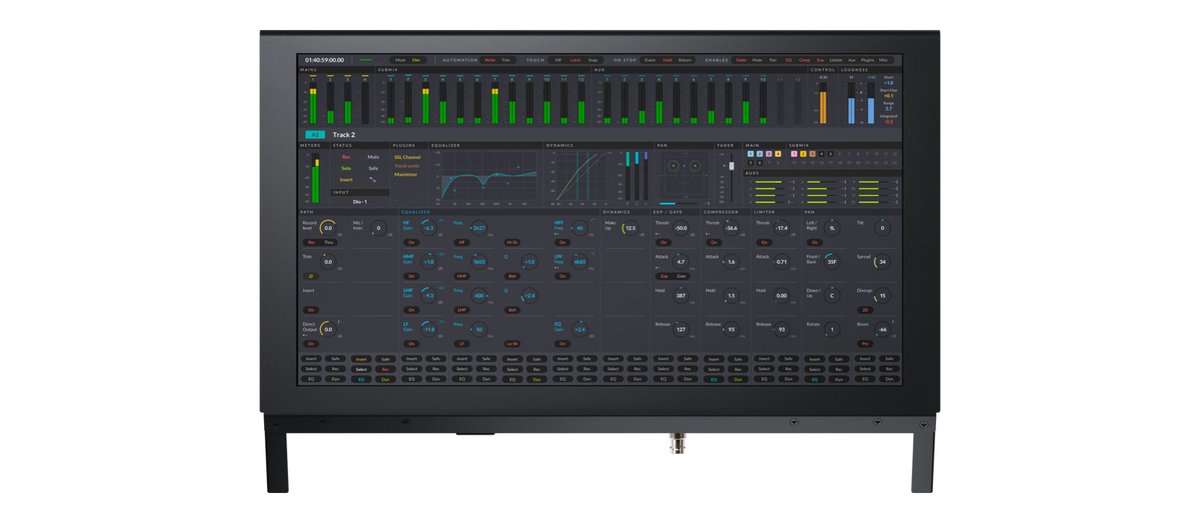

Blackmagic Fairlight Console LCD Monitor

The Fairlight Console LCD Monitor is a display bucket that mounts into the console chassis at the engineer position, putting the Fairlight mixer, meters and track display directly above the control surface instead of on a separate desktop screen.

It fits a standard Fairlight console chassis bay and is driven from the console system, so the display sits at the correct angle and height for a seated mixing position. Power is internal 100 to 240V AC via IEC, and configuration and updates travel over the console's Ethernet and USB Type-C connections.

EthernetEthernet supports 10/100/1000 BaseT.
HDMI Video InputHDMI Type A.
SDI Inputs1 x 3G-SDI.
SDI Rates1.5G, 3G.
HDMI Video Standards1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Video Standards1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425 Level A and Level B.
Part NumberBMD-DV/RESFA/LCDMCS
