Blackmagic Fairlight Live Audio Panel 40

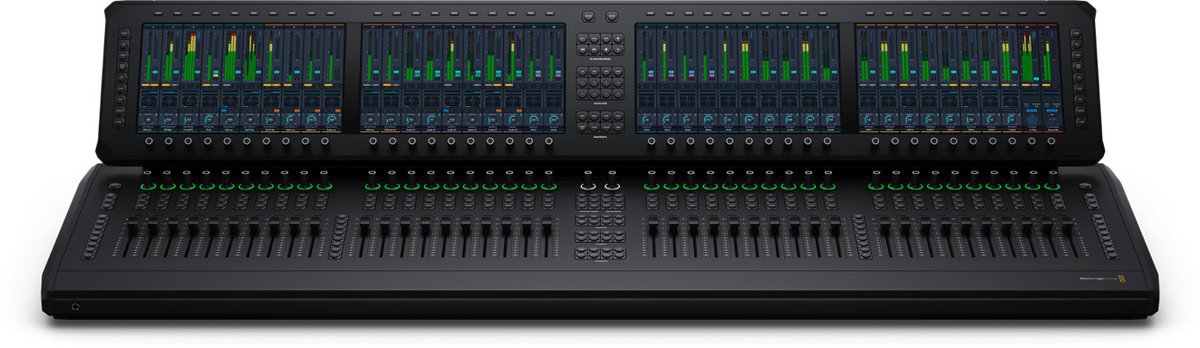

The Fairlight Live Audio Panel 40 is the largest hardware control surface for the Fairlight Live broadcast audio system, built for major live productions that need a wide bank of channels under the hands at once. It carries 40 motorized flying faders and four 11.6-inch touchscreens, with per-channel Select, Solo and Mute buttons and 40 rotary knobs so a large mix stays within reach. Dedicated keypads reach layers, bus, matrix, aux, VCA, sub-masters and talkback.

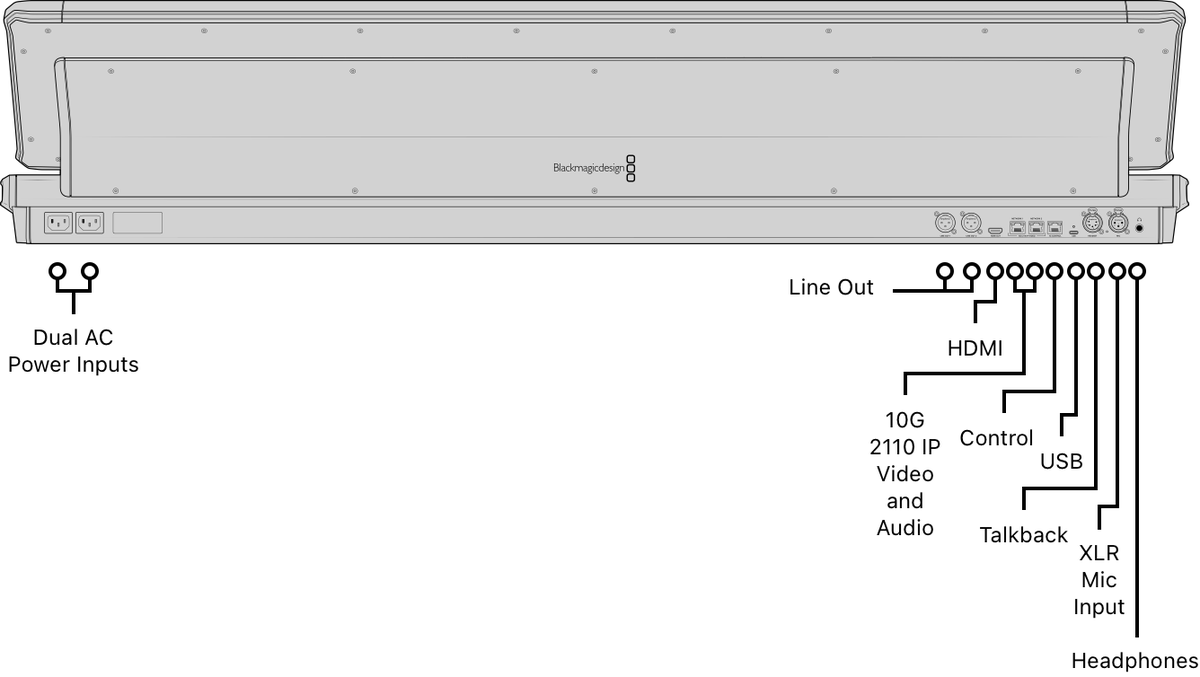

The panel connects to the Fairlight Live engine and network over two 10G RJ45 ports plus a 1G RJ45 port, with a USB Type-C connection, an HDMI output and XLR audio I/O. It uses two IEC C14 power inputs for redundant mains feeds. It ships as Blackmagic part number BMD-DVFL/AAFLP40.

  • Channel Controls40 rotary knobs, Select / Solo / Mute buttons per channel
  • Other ConnectionsUSB Type-C, HDMI out, XLR audio I/O
  • Power2 x IEC C14 power inputs
  • Faders40 motorized flying faders
  • Display4 x 11.6-inch touchscreens
Faders40 motorized flying faders
Display4 x 11.6-inch touchscreens
Channel Controls40 rotary knobs, Select / Solo / Mute buttons per channel
KeypadsPlayer/Recorder, Cue Player, Snapshots, Masters, Talkback
Network2 x 10G RJ45, 1 x 1G RJ45
Other ConnectionsUSB Type-C, out, audio I/O
Power2 x IEC C14 power inputs
Part NumberBMD-DVFL/AAFLP40
2items in the box
  • Fairlight Live Audio Panel 40
  • Welcome wallet with QR code for software download
