Blackmagic Design FAIRLIGHT AUDIO PANEL 20

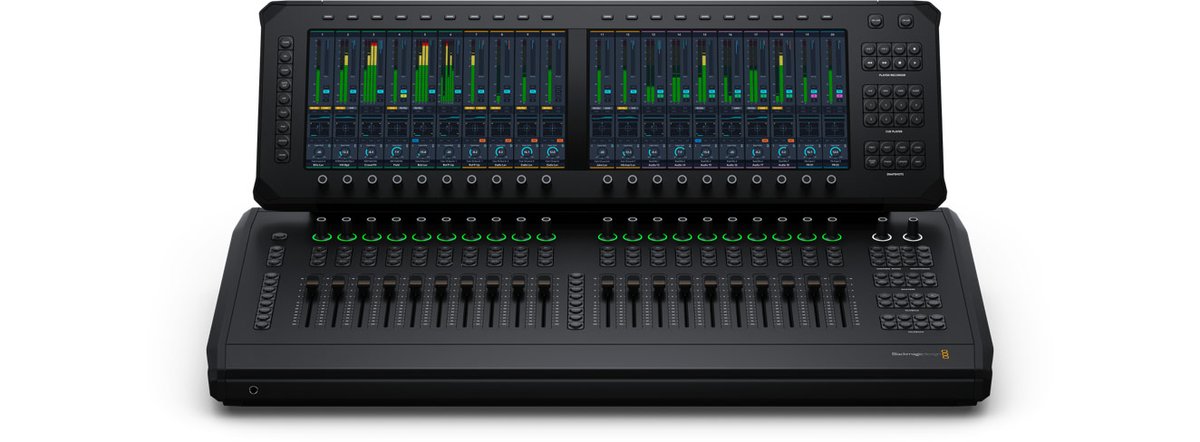

The Fairlight Live Audio Panel 20 is a mid-sized hardware control surface for the Fairlight Live broadcast audio system, doubling the fader count of the Panel 10 for shows with more channels in play. It carries 20 motorized flying faders and two 11.6-inch touchscreens, with per-channel Select, Solo and Mute buttons and 20 rotary knobs for fast access across a larger mix. Dedicated keypads reach layers, bus, matrix, aux, VCA, sub-masters and talkback.

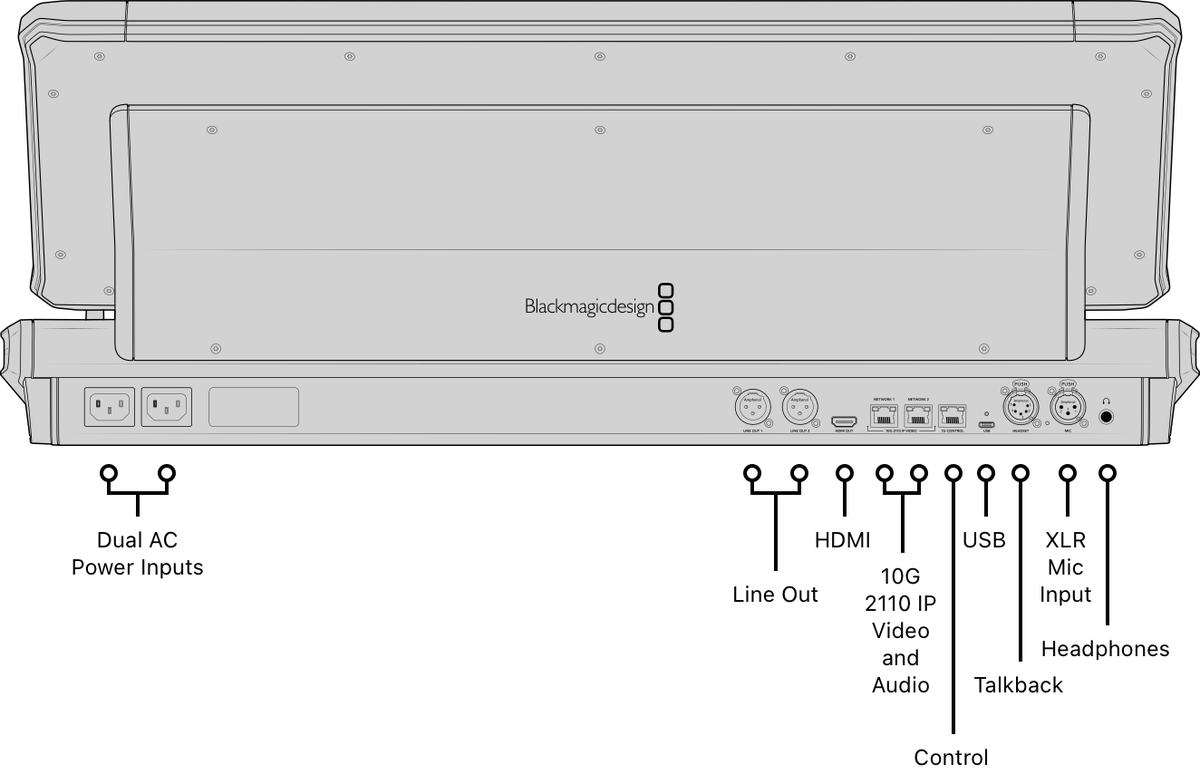

The panel ties into the Fairlight Live engine and network over two 10G RJ45 ports plus a 1G RJ45 port, with a USB Type-C connection, an HDMI output and XLR audio I/O. It uses two IEC C14 power inputs for redundant mains feeds. It ships as Blackmagic part number BMD-DVFL/AAFLP20.
