Blackmagic Fairlight Live Audio Panel 10

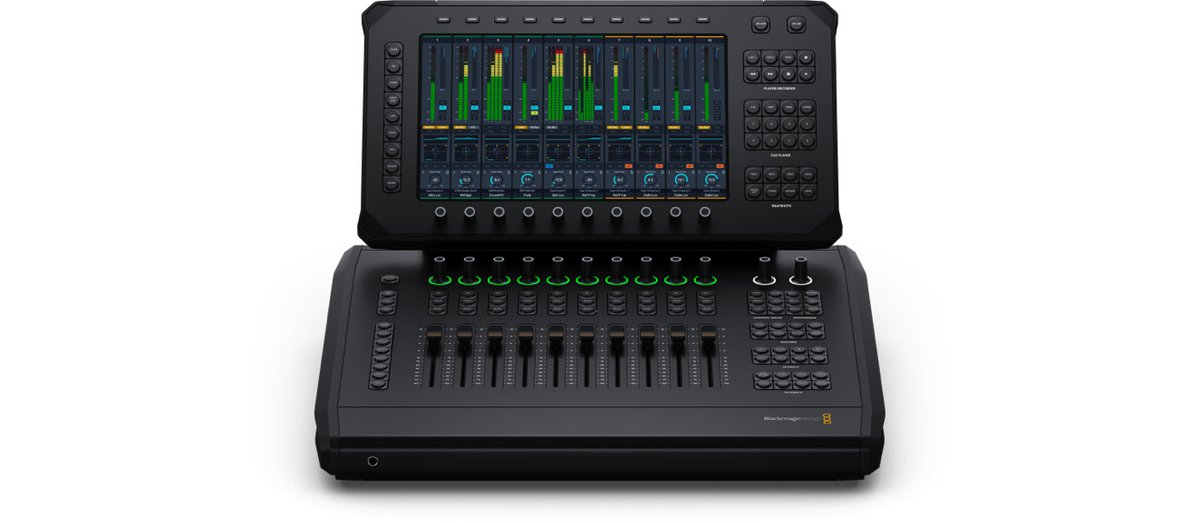

The Fairlight Live Audio Panel 10 is a hardware control surface for the Fairlight Live broadcast audio system, giving a mixer physical hands-on control over a live show. It carries 10 motorized flying faders that follow automation and layer changes, along with a single 11.6-inch touchscreen and a bank of illuminated buttons for Select, Solo and Mute on each channel. Rotary knobs and dedicated keypads reach layers, bus, matrix, aux, VCA, sub-masters and talkback so an operator can move quickly during a live mix.

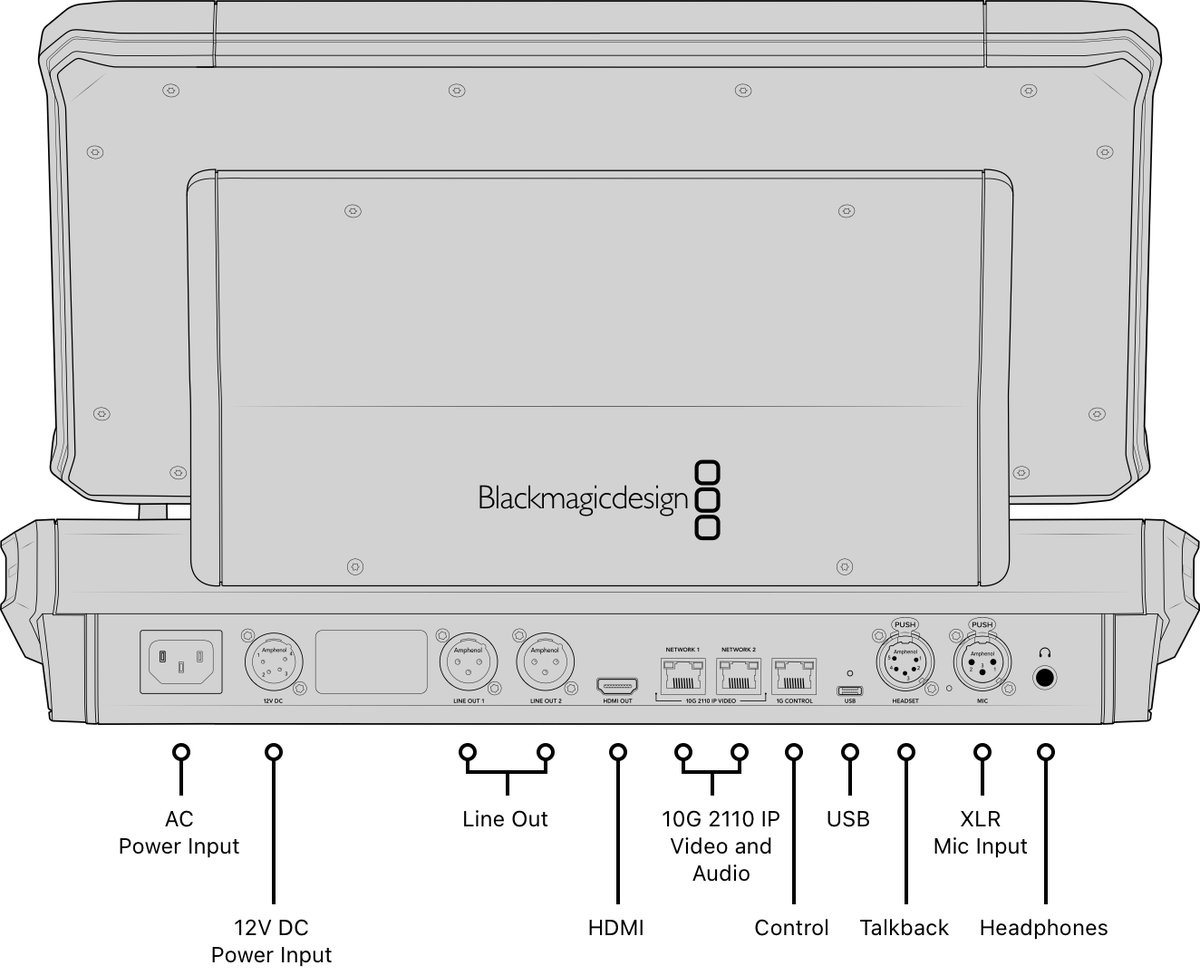

The panel connects to the Fairlight Live engine and network over two 10G RJ45 ports plus a 1G RJ45 port, with a USB Type-C connection, an HDMI output and XLR audio I/O. It runs on mains power through an IEC C14 inlet with an additional 4-pin XLR 12V DC input for redundancy. It ships as Blackmagic part number BMD-DVFL/AAFLP10.
